Quick Details
-
Warranty:
-
3 Years
-
Product Name:
-
fuber
Quick Details
-
Dimensions (L x W x H) (mm):
-
1.6m
-
Engine type:
-
Electric Outboard
-
Color:
-
red, yellow
-
Warranty:
-
3 Years
-
Product Name:
-
fuber
Product Description

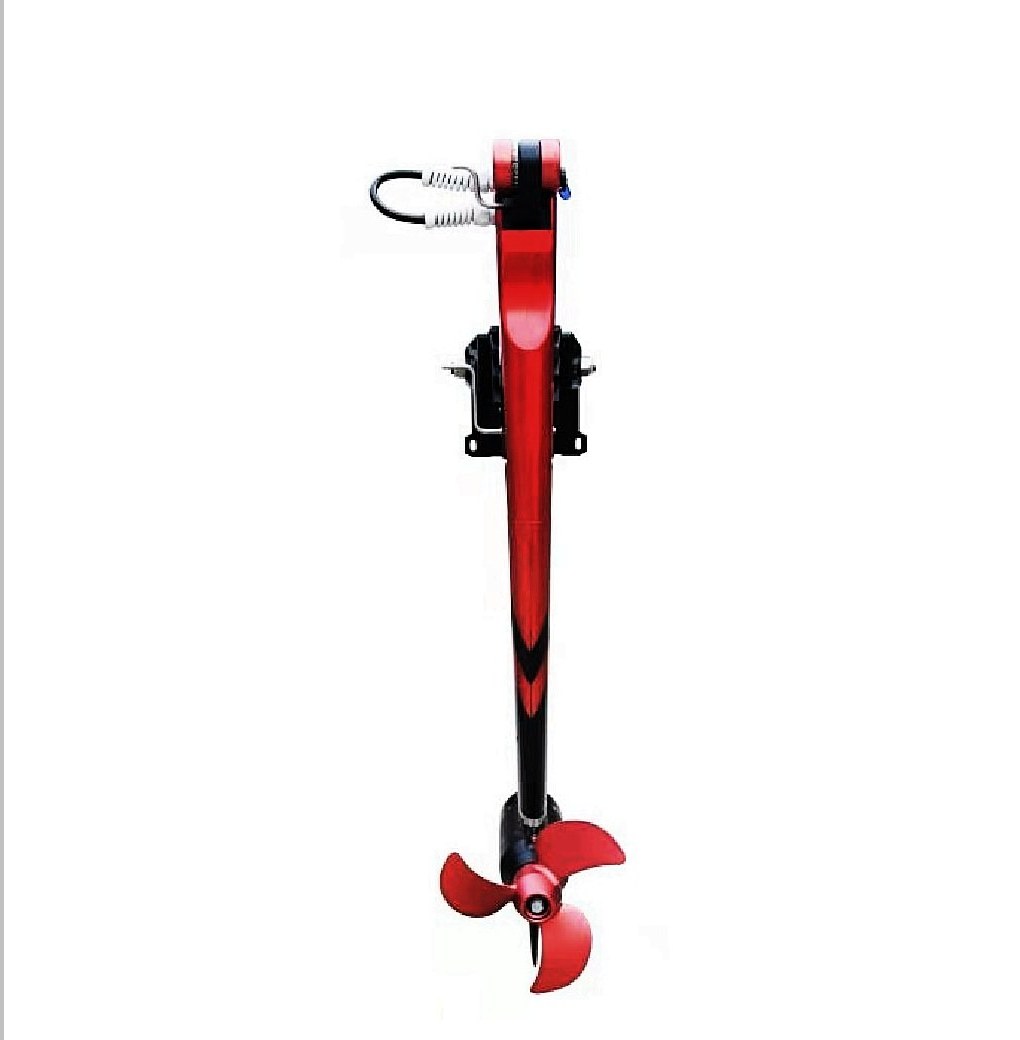

Allheart MarineSeries
* Feature: Battery power and speed status is checked easily with a LED indicator and voltage meter.
* Voltage: 72v/150v
* power: 2.55kw/7.0kw * Infinitely variable speed control.
* An adjustable telescopic tiller with a handle that is designed allowing anglers to troll for hours without feeling tired.
* Adjustable head
* Stainless steel shaft
* All aluminum alloy motor head.
* Aluminum mount bracket easy to fit.
* Weedless 3-blade machete propeller.
* Anti-corrosion system for seawater or saltwater use.
* One years manufacturer warranty
* Feature: Battery power and speed status is checked easily with a LED indicator and voltage meter.
* Voltage: 72v/150v
* power: 2.55kw/7.0kw * Infinitely variable speed control.
* An adjustable telescopic tiller with a handle that is designed allowing anglers to troll for hours without feeling tired.
* Adjustable head
* Stainless steel shaft
* All aluminum alloy motor head.
* Aluminum mount bracket easy to fit.
* Weedless 3-blade machete propeller.
* Anti-corrosion system for seawater or saltwater use.
* One years manufacturer warranty
Specification
|
Product parameters
|
|
|
|
Product Model: G03
|
Product Model: G06
|
|
|
Motor model: M098080
|
Motor model: M098060
|
|
|
Output power: 2.55kW
|
Output power: 5.2kW
|
|
|
Voltage: DC72V
|
Voltage: DC150V
|
|
|
Current: 41A
|
Current: 40A
|
|
|
Rated speed: 1450rpm
|
Rated speed: 4350rpm
|
|
|
Efficiency: 86%
|
Efficiency: 87%
|
|
|
Working system: S9
|
Working system: S9
|
|
|
Drive Model: RW302MC720C
|
Driver Model: RW602MC151C
|
|
|
Power: 3KW
|
Power: 6KW
|
|
|
Voltage: 72V
|
Voltage: 150V
|
|
|
Current: 45A
|
Current: 45A
|
|
|
Counter-electromotive force constant: 36V/Kpm
|
Counter-electromotive force constant: 27V/Krpm
|
|
|
No-load speed: 2000rpm
|
No-load speed: 5800rpm
|
|
|
Rated torque: 16.8Nm
|
Rated torque: 12Nm
|
|
|
Peak torque: 18Nm
|
Peak torque: 14Nm
|
|
|
Peak current: 44A
|
Peak current: 48A
|
|
We ourselves design, manufacture and sell different trolling motors. We hope to be your reliable partner in China.
Our 72v/150v infinitely variable speed. Intelligent protection.When the propeller blade is wound to water plant, fishing net, hit stone, hardobject, block operation, or when the voltage is too low, the motor program will start automatic protection, motor stop operation, protect the motor. One machine with two usages. Economic and movement. One key to switch, LED digital display,allas you wish.
Note: The installation or removal of the propeller must be done when the product is out of power Note that the cylindrical pinmust be installed in place and completely jammed into the positioning groove of the propeller. Battery is notincluded, pls buy it yourselves in your local area.
Note: The installation or removal of the propeller must be done when the product is out of power Note that the cylindrical pinmust be installed in place and completely jammed into the positioning groove of the propeller. Battery is notincluded, pls buy it yourselves in your local area.
Packing & Delivery
1)Fishing Boat package according to export standard
2)Fishing Boat package based on seaworthy standard
3)Special package as customer's request
