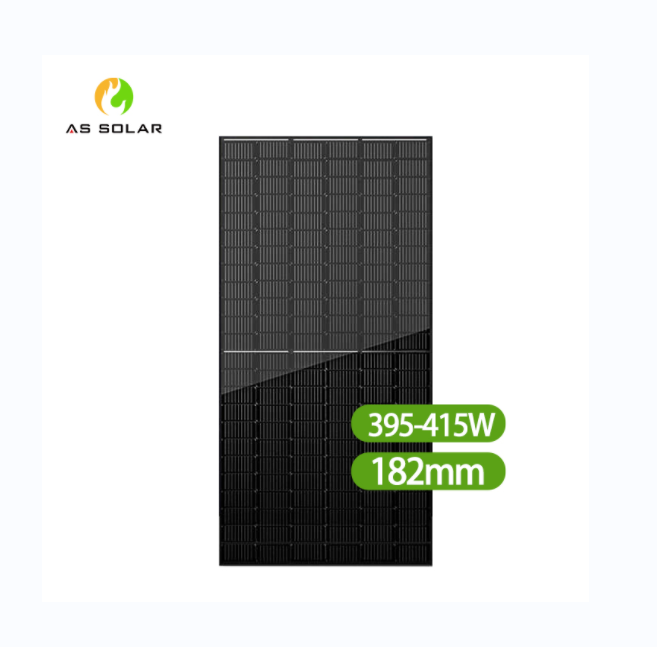

High efficiency solar panel panels and accessories full black 410watts solar panels

High efficiency solar panel panels and accessories full black 410watts solar panels

FOB Reference Price: Get Latest Price

≥5000 Pieces

US $0.12

≥10000 Pieces

US $0.11

≥15000 Pieces

US $0.1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 25 Years, 25 years

Brand Name:: AS Solar

Model Number:: ASZH54L 395-415M

Place of Origin:: Anhui, China

Panel Dimensions:: 1724*1134*35mm

Material:: Monocrystaline Silicon

Cell Type:: Mono Solar Cell 182mm

Frame:: Anodized Aluminium Alloy

Junction Box:: IP 68,3 diodes

Glass:: 3.2mm, High Transmission, AR Coated Tempered Glass

Connector:: MC 4 Compatible Connector

Cable:: 4 mm² ,350 mm (With Connectors)

Packaging:: 31pcs

Keyword:: All black

Quick Details

Cell size:: 182mmx182mm

Type:: PERC, Half Cell, All Black

Panel Efficiency:: 21.23%

Warranty:: 25 Years, 25 years

Brand Name:: AS Solar

Model Number:: ASZH54L 395-415M

Place of Origin:: Anhui, China

Panel Dimensions:: 1724*1134*35mm

Material:: Monocrystaline Silicon

Cell Type:: Mono Solar Cell 182mm

Frame:: Anodized Aluminium Alloy

Junction Box:: IP 68,3 diodes

Glass:: 3.2mm, High Transmission, AR Coated Tempered Glass

Connector:: MC 4 Compatible Connector

Cable:: 4 mm² ,350 mm (With Connectors)

Packaging:: 31pcs

Keyword:: All black

Products Description

Excellent Cells Efficiency

Our solar panels use MBB technology to reduce 1/2 of the original current and the power dissipation is reduced to 1/4 of the original’s.

Excellent load capacity

Our solar panels are extremely adaptable to harsh outdoor environments and resistant to
harsh environments such as salt, ammonia, sand, high temperatures and high humidity environments.

Long durability

We adopt the most advanced full automatic production line to ensure long life of our solar modules.

High reliability

Our solar modules are guaranteed to have a positive tolerance of 0-3% to ensure the reliability of the power output and are backed by a 10-year limited product warranty and a 25-year limited power warranty.

Solar Panel Glass

* High-transmittance and low reflection
* Inspection:GB15763.2-2005.ISO9050
* High solar transmittance
* High mechanical strength
* High flatness

Solar Panel Cell

* High output-power: conversation efficiency is 18%-22%
* High shunt-resistance: adapt the several environmental conditions.
* Bypass diode minimizes the power drop by shade
* Excellent low light effect
* Low breakage rate

Frame

* Aluminium extrusion profile with prompt delivery
* Available in customized surface finish
* Excellent material for smooth and subtle edges
* Extrusion for construction and other industrial purposes
* All-black components increase light absorption and aesthetics

Junction Box

* High current and voltage carrying capacity
* Simple, quick and safe effective field assembly
* IP 68 it can be used in the outdoor iron environment
* Expansion connector are available for future requirement
* Double permanent connection are adapted for all of the connecting.

Product Specifications

Electrical Specification(STC*)

Nominal Power Watt Pmax(W)*	395	400	405	410	415
Power Output Tolerance Pmax(%)	0~+3	0~+3	0~+3	0~+3	0~+3
Maximum Power Voltage Vmp(V)	30.70	30.90	31.10	31.30	31.50
Maximum Power Current Imp(A)	12.87	12.95	13.03	13.10	13.18
Open Circuit Voltage Voc(V)	36.90	37.10	37.30	37.50	37.70
Short Circuit Current Isc(A)	13.63	13.70	13.77	13.84	13.91
Module Eﬃciency (%)	20.20	20.46	20.72	20.97	21.23

*STC(Standard Test Condition): Irradiance 1000W/m², Module Temperature 25℃, AM 1.5

Electrical Specification(NOCT*)

Maximum Power Pmax(Wp)	295.20	299.90	302.70	306.30	310.10
Maximum Power Voltage Vmpp(V)	28.50	28.70	28.90	29.10	29.30
Maximum Power Current Impp(A)	10.35	10.41	10.47	10.53	10.59
Open Circuit Voltage Voc(V)	34.50	34.70	34.80	35.00	35.20
Short Circuit Current Isc(A)	11.01	11.06	11.12	11.18	11.23

*NMOT:Irradiance 800W/m²,Ambient Temperature 20℃,AM 1.5,Wind Speed 1m/s

Mechanical Specification:

Solar cells	Mono PERC
Cells orientation	108（6×18）
Module dimension	1724×1134×30mm (With Frame)
Weight	21±1 kg
Glass	3.2mm, High Transmission, AR Coated Tempered Glass
Junction box	IP 68，3 diodes
Cables	4 mm² ,350 mm (With Connectors)
Connectors*	MC4-compatible

Manufacturing Technique

100% Solar Cells Sorting

Color and performance selection
To ensure the production of high-quality cells, sort out unqualified products such as appearance defects, internal defects, and
lack of process performance.

Middle Test

EVA and appearance inspection
Ensure PT / EVA size meets technical requirements
Ensure that the product is free of scratches, creases, debris, etc.

Overall inspection

PV Module appearance
Ensure that the product has no color difference and no burrs.
Make its reach Grade A standard.

Final EL Testing

Solar panel power inspection
Ensure that there are no cracks or defects inside the module.
Ensure that the power meets customer standards.

Final Appearance Inspection

Each solar module must be inspected by the quality control department before packaging to ensure that there are no defects in the production process.

Product packaging

Packing Method: Customized Wooden&Carton with Pallet(offer 100% protection during transportation)

Project:

Certifications

FAQ

1. Who are we?

We are ANHUI SHANGXIA SOLAR ENERGY CO.,LTD,

2. How can we guarantee quality?

Always a most advanced fully automatic production;
Always a step by step Inspection system before shipment.

3. What can you buy from us?

Poly and mono solar panels, solar batteries,solar power system, solar charger controller, solar inverters, etc..

4. Why should you buy from us not from other suppliers?

As a trustworthy and reliable supplier, our products have been exported to all over the world, including Australia, Africa,Russia, the Middle East, South America, Asia and so on!
