Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1280x850x2270
-
Motor Power (kW):
-
3.7kw
-
Model Number:
-
APA-25E
-
Weight (T):
-
25
-
Stroke:
-
10.5-100
-
Speed changing:
-
70-120 s.p.m
-
Die height:
-
250mm
-
Slide area:
-
470*230*50 mm
-
Bolster area:
-
680*300*70mm
-
Shank hole:
-
38.1mm
Quick Details
-
Slide Stroke (mm):
-
50mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIHAO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1280x850x2270
-
Motor Power (kW):
-
3.7kw
-
Model Number:
-
APA-25E
-
Weight (T):
-
25
-
Stroke:
-
10.5-100
-
Speed changing:
-
70-120 s.p.m
-
Die height:
-
250mm
-
Slide area:
-
470*230*50 mm
-
Bolster area:
-
680*300*70mm
-
Shank hole:
-
38.1mm

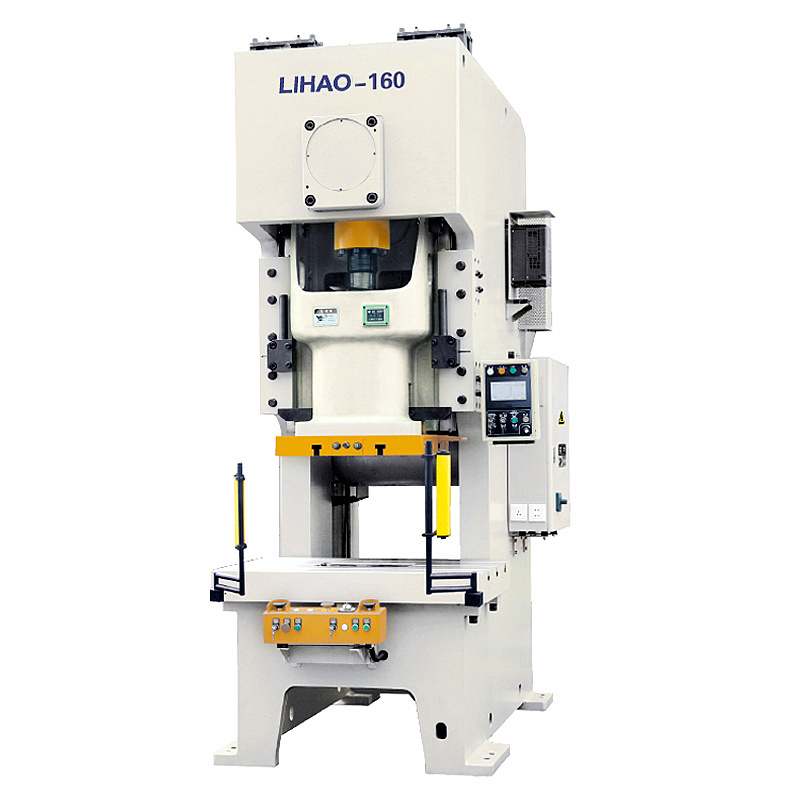

Good price power stamping machine metal sheet punching machine equipment for manufacturing plant
|
Model |
Unit |
APA-25E |
APA-45E |
APA-60E |
APA-80E |
|
Capacity |
Ton |
25 |
45 |
60 |
80 |
|
Rated tonnage point |
mm |
3 |
4 |
4 |
4 |
|
Stroke |
mm |
10.5-100 |
11.5-110 |
12.5-120 |
12.5-120 |
|
Speed changing |
s.p.m |
70-120 |
40-100 |
35-90 |
35-80 |
|
Die height |
mm |
250 |
290 |
300 |
300 |
|
Slide adjustment |
mm |
50 |
60 |
75 |
80 |
|
Slide area |
mm |
470x 230 x 50 |
560x 300 x 60 |
700x 360 x 70 |
770x 420 x 70 |
|
Bolster area |
mm |
680x 300 x 70 |
850x 440 x 80 |
900x 500 x 80 |
1000x 550 x 90 |
|
Shank hole |
mm |
∅ 38.1 |
∅ 38.1 |
∅ 50 |
∅ 50 |
|
Main motor |
kw.p |
3.7x 4 |
5.5x 4 |
5.5x 4 |
7.5x 4 |
|
Slide adjust device |
HP |
manual operation |
electrial driving |
||
|
Air pressure |
kg/cm2 |
6 |
|||
|
Press precision |
|
GB/JIS 1 class |
|||
|
Presses dimension |
mm |
1280x 850 x 2270 |
1600x 950 x 2555 |
1595x 1000 x 2790 |
1800x 1100 x 2745 |
|
Weight |
Ton |
2.1 |
3.8 |
5.6 |
6.5 |
|
Die cushion capacity |
Ton |
- |
2.3 |
3.6 |
3.6 |
|
Stroke |
mm |
- |
50 |
70 |
70 |
|
Die cushion effective area |
mm2 |
- |
300x 230 |
350x 300 |
450x 310 |
