Double action dental hydraulic press seyi press machine

Double action dental hydraulic press seyi press machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $52700

≥5 Pieces

US $46500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Usage:: kitchen sinks,tableware,automobile parts,etc

Technology:: Deep drawing or stretching

Advantage:: High productivity

Structure Type:: Horizontal or vertical can be ok

Surface:: Hard chromed plating

Hydraulic system:: Imported from famous brand

Application:: Metal Sheet Stamping

Quick Details

Place of Origin:: Guangdong, China

Item No.:: YHL1

Function:: Hydraulic Press

Usage:: kitchen sinks,tableware,automobile parts,etc

Technology:: Deep drawing or stretching

Advantage:: High productivity

Structure Type:: Horizontal or vertical can be ok

Surface:: Hard chromed plating

Hydraulic system:: Imported from famous brand

Application:: Metal Sheet Stamping

Product Description

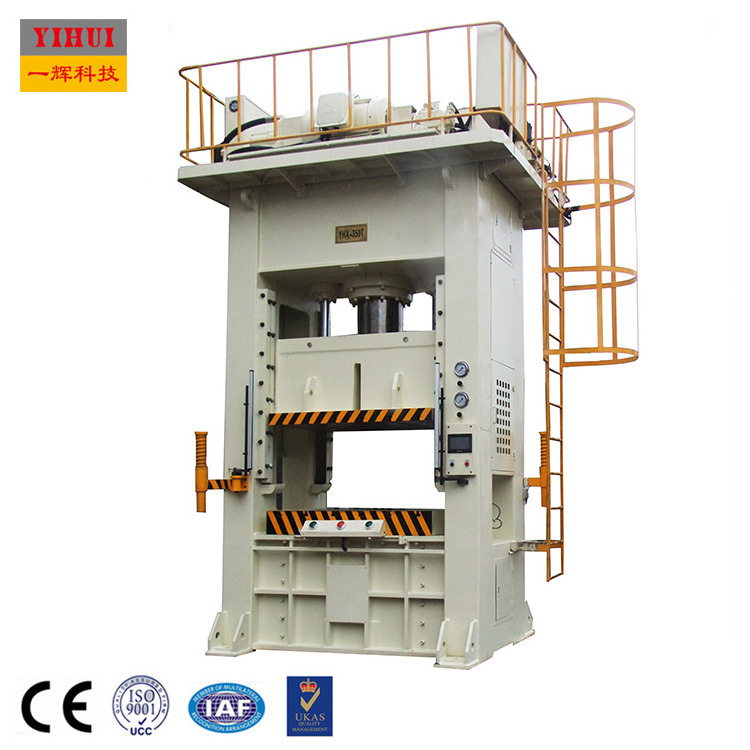

Double action dental hydraulic press seyi press machine

Item			Unit	YHL1-150ton	YHL1-200ton	YHL1-250ton	YHL1-350ton	YHL1-500ton	YHL1-800ton	YHL1-1000ton
Nominal Capacity			kN	1500	2000	2500	3500	5000	8000	10000
Max. Working Pressure			Mpa	20	21	22	22	20	23	21
Main Cylinder Stroke			kN	1000	1500	1750	2500	3000	4500	8000
Max. Stroke Of Ram			mm	550	550	600	650	750	800	800
Max. Open Height			mm	850	900	1000	1100	1300	1400	1400
Cushion Cylinder Capacity			kN	500	500	750	1000	2000	2500	4000
Max.Stroke Of Cushion Piston			mm	250	250	250	300	350	350	350
Ejection Capacity			kN	30	30	30	50	50	50	50
Max. Stroke Of Ejection			mm	230	230	230	280	320	320	320
Speed Of Ram	Down No Load	mm/s	350	380	320	380	290	200	190
		Pressing	mm/s	20/40	20/40	20/50	35/55	15/30	13/20	13/20
		Return	mm/s	340	360	320	300	290	190	190
Effective Area Of Working Table	RL(column inside)	mm	620	700	800	950	1200	1400	1600
Effective Area Of Working Table		FB(edge)	mm	750	850	900	1100	1400	1600	1600
Overall Dimension	L.R	mm	1900	2140	2250	2400	2800	3100	3300
		F.B	mm	1690	1835	1910	1900	2000	2100	2100
		H	mm	3230	3640	3890	4150	4750	5150	5300
Motor Power			kW	15	18.5	18.5	22	37	45	75
Total Weight(Approx)			Ton	5.1	6.3	9.2	11	20.9	33	36
Oil Quantity(Approx)			L	500	650	700	800	900	1200	1400

Our factory can customize hydraulic press machine according to your needs.

Main Features

1. Reasonable design and good processing part make it low energry consumption.
2. Cylinder adopts to forge and grind, it have good reliability in state of high pressure.
3. Many kinds working speed improve the efficiency of production.
4. Run steady,low noise, with electric eye for worker safety.
5. Easy to set with machine by PLC and touch screen.
6. Pressure adjustable in big range for different need.
7. Frame and active beam have high guide precision, rigidity and hardwearing,
especially are suitable for pressing anisomerous parts.

Main Component

YIHUI Hydraulic press with servo system,can bring you 10 kinds advantages as below:

1.Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.
2.English and customer country local language, bilingual operation interface, easy to operate.
3.Can save 50% - 70% electricity energy.
4.Parameters and Speed can be adjusted on the touch screen, easy to operate.
(Machine without servo system, speed can not been adjusted.)
5.Can be 3 to 5 years longer service life than the common machine.
It means,if common machine can service for 10 years, then machine with servo, can use 15 years.
6.Ensure safety and easy to know error,easy to do after service.
Because of Automatic alarm and auto troubleshooting system.
7.Very easy to change mold, shorter time of changing mold.
Because it have memory function,if use the original mold, do not need to adjust parameter again,
8.Very quiet , do not have noise.
9.Much stable than common machine.
10.Much high precision than common machine.

Samples

Packing & Delivery

Packaging
Size	According to customer requirements
Weight	According to customer requirements
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Our Company

Dongguan Yihui Hydraulic Machinery Co., Ltd.

We have been specialized in manufacturing hydraulic press machine for over 20 years .
YIHUI brand machines have been exported to over 40 countries,
such as Germany, USA, UK, Sweden, Japan,Slovenia, Saudi Arabia,El Salvador,Togo,Malaysia,Singapore, Australia ,
Vietnam,Pakistan,South Africa, and so on.
Especially speciallized in the servo system hydraulic press machine .

Welcome to visit our factory!

Customers

Exhibitions

FAQ

Q1. Are you manufacturer or trader?
A: We have been specialized in manufacturing hydraulic press machine for over 20 years. We have our R&D team, experienced engineers and professional sales team.

Q2. What is your terms of payment?
A: T/T 50% as deposit, full payment before shipping. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your trade terms?
A: EXW, FOB, CIF and CFR are all acceptable.

Q4. How about your delivery time?
A: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.

Q5. What is your warranty policy?
A:We can supply 12 months warranty for our machines. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.

Q6. What is the after-sales service of your factory?
A: We can offer engineer to adjust machine and training in your company. Engineers overseas assemble, testing machine and training are available.

Q7. How to use your products?
A: Welcome to our factory to learn how to operate our machine, we will give good training .Or our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user .

Q8. How does your factory do regarding quality control?
A: Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. We have ISO and CE certification approval.

Q9. What is the advantage of your factory?
A: The main components of our machine are imported from the famous brand such as Japan and Germany. So the quality is near the Japan production, but the unit price is lower than it.
Also we can offer full set line service, such as the mould, process technology, and other relative machines. In other words, all you need to do is provide the drawings of the product and we can design the whole line solution for you.
