Self adjusting motor and belt driving system, easy to maintain, high speed motor, Maximum to 2000r / min， Three kinds of mulcher teeth can be customize manufacture.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
80*50*59
-
Weight:
-
1200 KG
-
Overall Length (mm):
-
900
-
Overall Height (mm):
-
1680
-
Overall Width(mm):
-
1860/2160/2460
-
Transport height (mm):
-
1080
-
Operation Width (mm):
-
1550/1850/2100
-
Work Flow(L/Min):
-
110-150
-
Operating Pressure(Mpa):
-
21
-
OEM:
-
Accepable
-
Engine brand:
-
Famous Brand
-
AdaptiveMachine:
-
85hp
Quick Details
-
Use:
-
forestry mulcher
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Geetien/OEM
-
Dimension(L*W*H):
-
80*50*59
-
Weight:
-
1200 KG
-
Overall Length (mm):
-
900
-
Overall Height (mm):
-
1680
-
Overall Width(mm):
-
1860/2160/2460
-
Transport height (mm):
-
1080
-
Operation Width (mm):
-
1550/1850/2100
-
Work Flow(L/Min):
-
110-150
-
Operating Pressure(Mpa):
-
21
-
OEM:
-
Accepable
-
Engine brand:
-
Famous Brand
-
AdaptiveMachine:
-
85hp
Detailed description
Manufacturing Technique
|
Model
|
051360
|
051372
|
051384
|
|
Overall Length (mm)
|
900
|
900
|
900
|
|
Overall Width(mm)
|
1860
|
2160
|
2410
|
|
Overall Height (mm)
|
1680
|
1680
|
1680
|
|
Transport height (mm)
|
1080
|
1080
|
1080
|
|
Operation Width (mm)
|
1550
|
1850
|
2100
|
|
Weight(kg)
|
985
|
1125
|
1235
|
|
Work Flow(L/Min)
|
l10-140
|
120-150
|
120-150
|
|
Operating Pressure(Mpa)
|
21
|
21
|
21
|
|
Host machine ifting capacityrequirements(T)
|
1
|
>1.1
|
>1.2
|
|
Depth of rotating plough (mm)
|
≤100
|
≤100
|
≤100
|
|
Number of blades(PCS)
|
40
|
48
|
56
|
|
Radiator Voltage(V)(optional)
|
DC12/24
|
DC12/24
|
DC12/24
|
|
AdaptiveMachine
|
85HP
|
100HP
|
100HP
|
Product Description

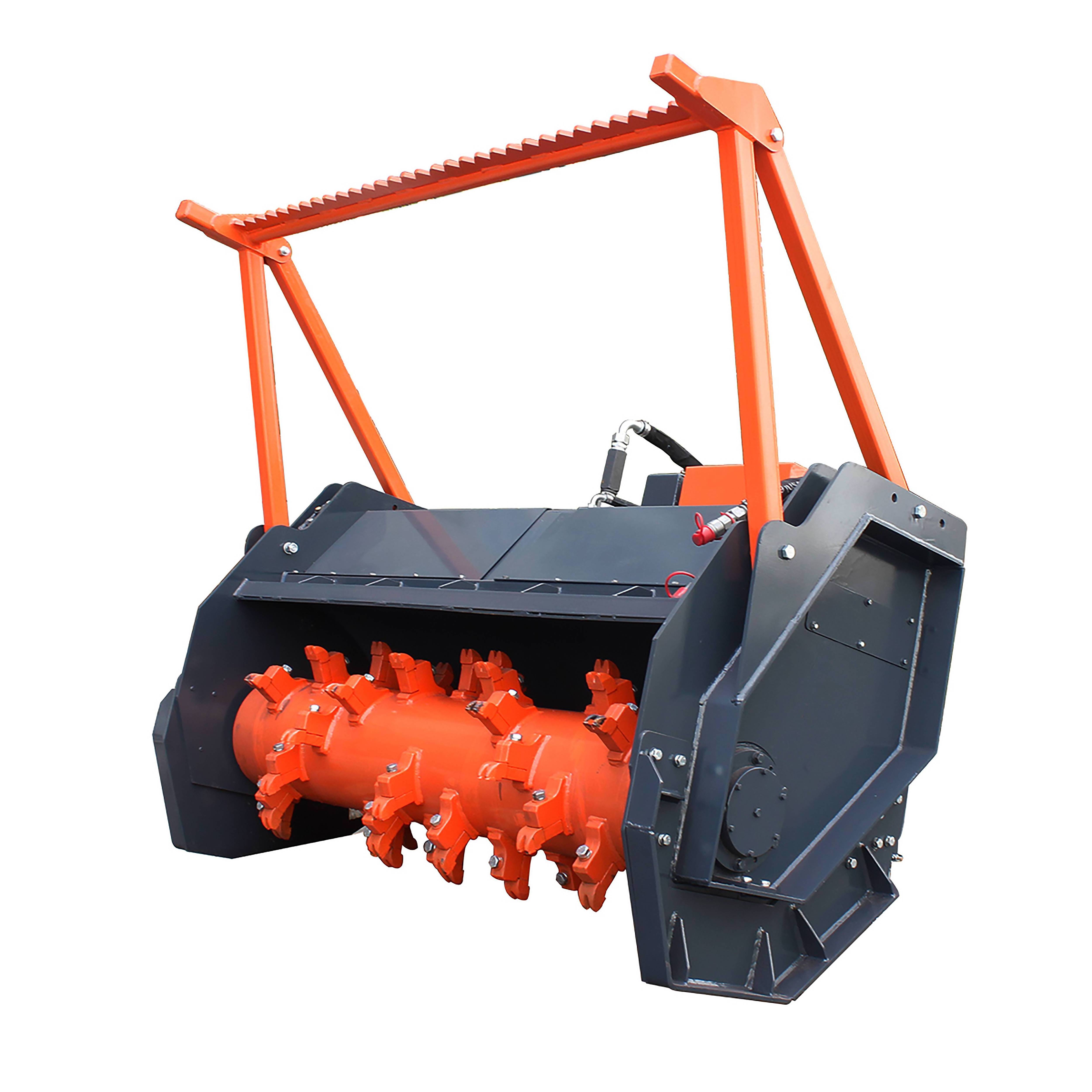

0513 Series Forestry Mulcher
Product Description
The HCN 60” skid steer forestry drum mulcher is designed to work for high flow skid steers to turn brushes and trees into a fine mulch for quick decomposition.
Featuring an independent cooling system with a radiator, forty tough alloy mulching teeth, an axial piston motor, and synchronous belt drive this heavy-duty
drum mulcher gets even the toughest jobs done with ease. The triple helix teeth layout maximizes cutting efficiency and the sealed transmission chamber
ensures nothing slows down mulching. The forward spinning motion makes quick work of trees and brushes.
Features:
Triple helix claw teeth layout for hardwood, stumps, and branches
Heat-treated, bolt-on forged alloy teeth
Hydraulic axial piston motor and synchronous belt drive system
Pressure gauge, radiator, and independent cooling system
Oil bath lubrication bearing system
Sealed transmission chamber to protect belts, pulleys, and key components
Rear chain safeguard
Hydraulic hoses and ½” flat-faced couplers
Manually adjustable push bar
Specifications:
Product dimension: 35” x 73” x 66” (L x W x H)
Product height: 66” (w/push bar), 43” (w/o push bar)
Minimum loader power required: 75HP
Cut width: 60”
Cut capacity: 8″ diameter
Rotor diameter: 12'' (w/o teeth), 24''(w/teeth)
Flow range: 24-32 GPM
Maximum pressure: 3045 psi
Cut depth: 4.0”
Mulching teeth: 40
Packaging:
Dimension: 80” x 50” x 59” (L x W x H)
Shipping weight: 2400 lb
