Quick Details
-
Model Number:
-
PB-22E09
-
Max. Current:
-
0.1A
-
Rating:
-
0.1A 30V DC
-
Circuit:
-
2P2T
-
Timing:
-
Non-shorting
-
Sample:
-
Free
-
MOQ:
-
1000 pcs
-
Stroke:
-
Full:1.8, Lock:1.0
-
Operating Force:
-
160gf,200gf
-
Product:
-
push button lock switches reset switch with 6 pin
-
Operating Mode:
-
Self Lock.non Lock
-
General Tolerance:
-
0.3
-
Certification:
-
reach
Quick Details
-
Max. Voltage:
-
30V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fosen
-
Model Number:
-
PB-22E09
-
Max. Current:
-
0.1A
-
Rating:
-
0.1A 30V DC
-
Circuit:
-
2P2T
-
Timing:
-
Non-shorting
-
Sample:
-
Free
-
MOQ:
-
1000 pcs
-
Stroke:
-
Full:1.8, Lock:1.0
-
Operating Force:
-
160gf,200gf
-
Product:
-
push button lock switches reset switch with 6 pin
-
Operating Mode:
-
Self Lock.non Lock
-
General Tolerance:
-
0.3
-
Certification:
-
reach

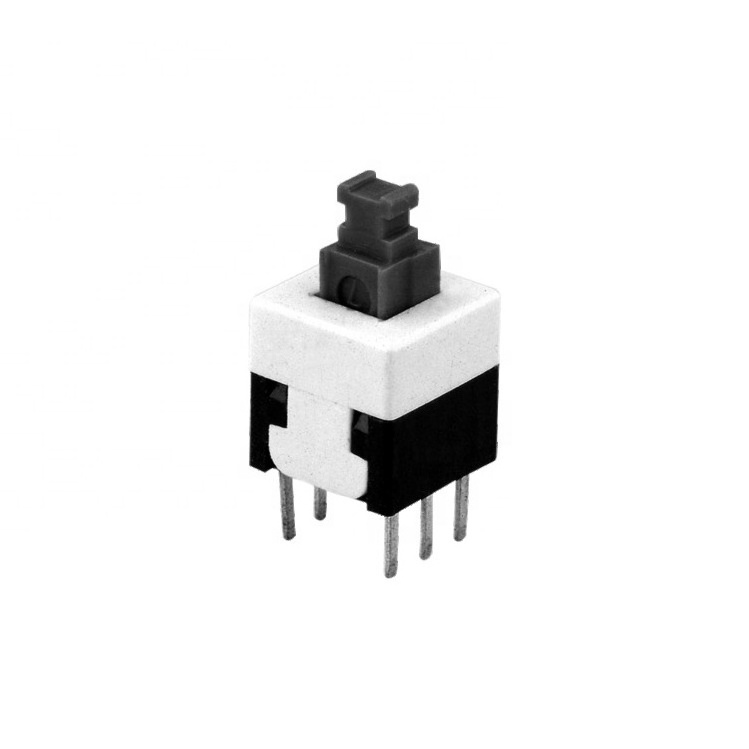

push button lock switches reset switch with 6 pin
Specification:
PB-22E09
|
Rating |
0.1A 30V DC |
|
Circuit |
2P2T |
|
Timing |
Non-shorting |
|
Operating Force |
200 ±100gf |
|
Stroke |
Full:1.8 Lock:1.0 |
|
Operating Mode |
Self Lock .non Lock |
|
General Tolerance |
0.3 |
|
Contact resistance |
100m Ω Max |
|
Insulation Resistance |
100M Ω Min |
|
Withstand Voltage |
AC 250V 1Min |
|
Soldering Temper |
260 ±5 ℃5s |
|
Mechanical Life |
30,000-100,000 times |
|
Electrical Life |
30,000-100,000 times |
|
Ambient Temper Used |
-2 5 ℃ to 85℃ |
Drawing
long life 6 pin self-resetting self locking switch
