Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UTE
-
Model Number:
-
UTE-FPC-537
-
Certificate:
-
ROHS
-
Color:
-
Black or White
-
Plating:
-
Gold plated
-
Solder Tab:
-
Copper alloy
-
Product name:
-
lcd display FPC 0.5mm H=1.0 FLIP TYPE fpc connector
-
Insulation resistance:
-
800mΩ
-
Working Temperature:
-
-20℃ ~ +85℃
-
Contact resistance:
-
≤20 mΩ
-
Withstand Voltage:
-
500V
-
Pitch:
-
0.5mm
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
FPC
-
Gender:
-
Male
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UTE
-
Model Number:
-
UTE-FPC-537
-
Certificate:
-
ROHS
-
Color:
-
Black or White
-
Plating:
-
Gold plated
-
Solder Tab:
-
Copper alloy
-
Product name:
-
lcd display FPC 0.5mm H=1.0 FLIP TYPE fpc connector
-
Insulation resistance:
-
800mΩ
-
Working Temperature:
-
-20℃ ~ +85℃
-
Contact resistance:
-
≤20 mΩ
-
Withstand Voltage:
-
500V
-
Pitch:
-
0.5mm

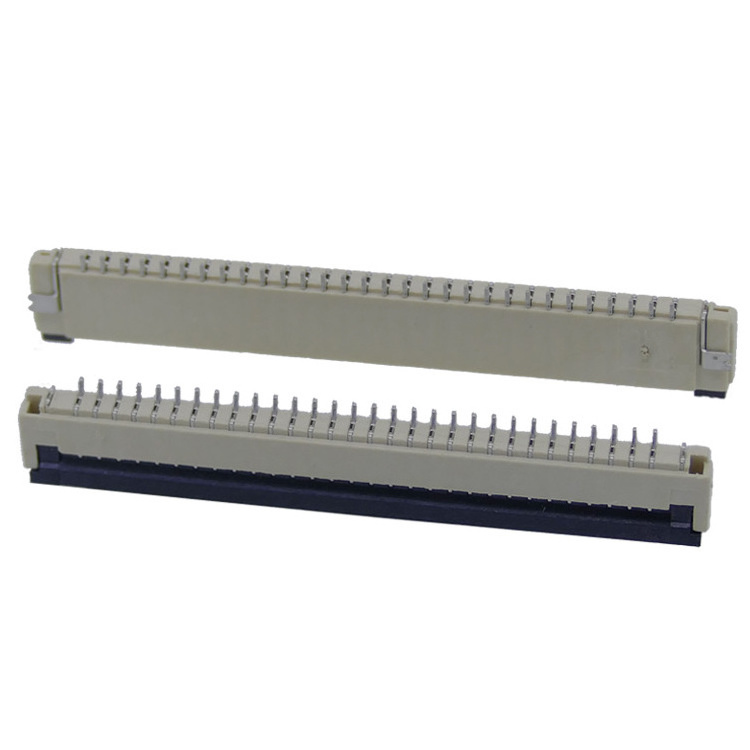

FPC/FFC 0.5mm Pitch 33 Pin Flat Connector for lcd
Material:
1, Housing: LCP or Nylon 94V-0,color:Black or White
2, Contact: Copper alloy
3, Shell: LCP or Nylon 94V-0,color:Black or White
4, Solder Tab:Copper alloy
Plating:
1, Contact: Au or Tin plated over nickel
2, Solder Tab : Tin plated
Electrical Characteristics:
1,Withstand Voltage: 500V AC/Minute
2,Current Rated: 0.4A AC/DC Max
3,Withstand voltage: 200V AC/minute
4,Insulation resistance: 800MΩ min
5,Contact resistance: 30 MΩ max
6,Operation temperature: -25°C-85°C
Q: how long Delivery time ?
A: RJ45/RJ11 Series: 12~20 days
SFP Series: 25~30 Days USB Series: 7~15 days
Pin Header/Female Pin header
Connector: 7~15 days
SATA/HDMI Series: 7~15 days
Q: How can I get quotation?
A:It is helpful for us to recommend the right item if we know your detail requirements
(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).
Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.
Q: Can I have samples?
A: Samples are available for evaluation.
Q: Is OEM & ODM available?
A: OEM&ODM are welcome.
