Quick Details
-
Dimension(L*W*H):
-
4960X3514X2830MM
-
Weight:
-
2800kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field maintenance and repair service, Video technical support
-
Name:
-
Small size 88hp mini rice combine harvester in sri lanka
-
Cutting width (mm):
-
2100mm
-
Engine:
-
Changchai 88hp
-
Model:
-
4LZ-4.0E
-
HST:
-
Korea HST
-
Grain Tankl:
-
1.4m3
-
Gearbox:
-
ZKB65
-
feeding capacity:
-
4kg/s
-
walk speed:
-
0-9km/h
Quick Details
-
Working Width(mm):
-
2100 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WORLD
-
Dimension(L*W*H):
-
4960X3514X2830MM
-
Weight:
-
2800kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field maintenance and repair service, Video technical support
-
Name:
-
Small size 88hp mini rice combine harvester in sri lanka
-
Cutting width (mm):
-
2100mm
-
Engine:
-
Changchai 88hp
-
Model:
-
4LZ-4.0E
-
HST:
-
Korea HST
-
Grain Tankl:
-
1.4m3
-
Gearbox:
-
ZKB65
-
feeding capacity:
-
4kg/s
-
walk speed:
-
0-9km/h

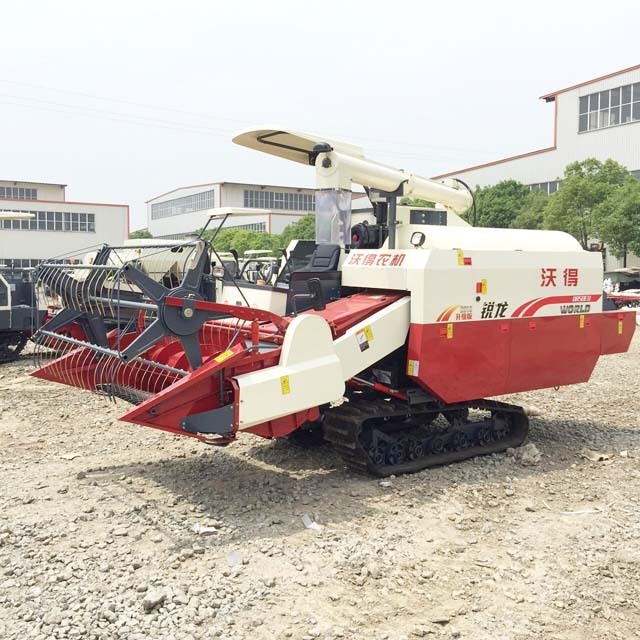

Small size 88hp mini rice combine harvester in sri lanka
Main Features:
-Changchai 4L88 engine, 88hp
-Korean imported HTS 40CC
-Imported belts
-1.4m3 grain tank
-360 degree rotary auger
-Sunshade or Cabin with A/C
Specifications of Small size 88hp mini rice combine harvester in sri lanka
|
Feeding Capacity (KG/s) |
4.0 |
||
|
Work Dimension L*W*H (mm) |
4900*2890*2700 |
||
|
Weight |
(KGS) |
2900 |
|
|
Cabin/Sun-roof |
Sun-roof |
||
|
Engine Part |
Model No. |
Changchai 4L88 |
|
|
Power/Speed (ps[Hp]/rpm) |
88/2700 |
||
|
Fuel |
Light Diesel Oil |
||
|
Fuel Capacity (L) |
130 |
||
|
Fuel Consumption(kg/hm2) |
12~30 |
||
|
Start |
Motor Starter |
||
|
Gear Box |
ZKB65 made by WORLD Factory. |
||
|
HST |
40CC HST Imported from south Korea. |
||
|
Walking Part |
Rubber Track |
Length of Ground Contact (mm) |
1700 |
|
Center Distance (mm) |
1160 |
||
|
Size(mm) |
450*90*51 |
||
|
Average Contact Pressure (kpa[kgf]/cm2) |
≤20Kpa |
||
|
Min. Ground Clearance (mm) |
300 |
||
|
Gear Shifts |
Variable Sun-transmission 3 Shifts |
||
|
Walk Speed (Km/Hour) |
Low:0~1.85 Medium:0~6.5 High:0~9 |
||
|
Theoretical Work Speed (Km/Hour) |
0.9-6.5 |
||
|
Harvesting Unit |
Grain Lifter |
Divider |
|
|
Working Width (mm) |
2200 |
||
|
Reel Bat |
Dia. × Length (mm) |
900×2028 |
|
|
Gearshift Method |
Constant Speed |
||
|
Adjusting Means |
Hydraulic |
||
|
Stubble Height[Lift] (mm) |
25cm or above |
||
|
Threshing &Harvesting Unit |
Threshing Mode |
Axial Flow Type, Bullet Rotor |
|
|
Threshing Rotor |
Type of Threshing |
Beat Bar |
|
|
Dia. ×Length (mm) |
620*2050 |
||
|
Rotating Speed(rpm) |
662/732 |
||
|
Fan |
Diameter |
400 |
|
|
Separating Type |
Vibrating Sieves +Air Blow |
||
|
Area of Sieves (Lowe and Upper Sieves) (m2) |
1.645 |
||
|
Grain-unload Unit |
Grain Tank Capacity (M3) |
1.4 |
|
|
Grain Discharging Type |
Vertical Discharging Pipe |
||
|
Alarm Units |
Water Temperature, Battery, Oil, Grain Tank, Jam of 2# Auger |
||
|
Work Efficiency(hm2/h) |
0.4~0.7 |
||
|
Crops |
Rice, Wheat |
||
|
Total Loss |
Less than 2.5% |
||
|
Breakage |
Less than 1.5% |
||
|
Impurity |
Less than 1.5% |
||
