Quick Details
-
Model Number:
-
KCD1
-
Max. Current:
-
6A
-
Mechanical Life:
-
more than 10000 times
-
Rating:
-
6A/250V AC, 10A/125V AC
-
Rated Load:
-
2/8A 250V AC
-
Contact Resistance:
-
≤50M
-
Dielectric Intensity:
-
≥1500V AC/min
-
Withstand Voltage:
-
1500V AC/min
-
Temperature:
-
-25~85°C
-
Insulation Resistance:
-
≥100M
-
Life:
-
≥10,000 cycles
-
Function:
-
ON-OFF/ON-ON/ON-OFF-ON
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250V AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ANHEDA
-
Model Number:
-
KCD1
-
Max. Current:
-
6A
-
Mechanical Life:
-
more than 10000 times
-
Rating:
-
6A/250V AC, 10A/125V AC
-
Rated Load:
-
2/8A 250V AC
-
Contact Resistance:
-
≤50M
-
Dielectric Intensity:
-
≥1500V AC/min
-
Withstand Voltage:
-
1500V AC/min
-
Temperature:
-
-25~85°C
-
Insulation Resistance:
-
≥100M
-
Life:
-
≥10,000 cycles
-
Function:
-
ON-OFF/ON-ON/ON-OFF-ON
-
Certification:
-
CE

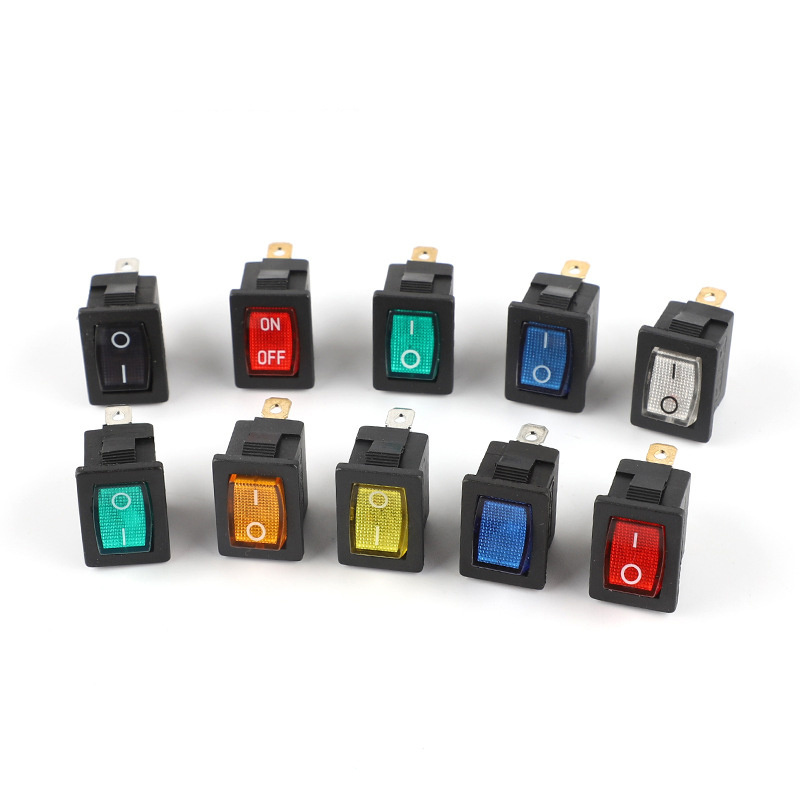

Wholesale Kcd1-105 Kcd1 4 Pin Rocker Switch Series Kcd1-101/3pl For Sale
Product details
| Rating | 6A/250V AC, 10A/125V AC |
| Rated Load | 2/8A 250V AC |
| Contact Resistance | ≤50M |
| Dielectric Intensity | ≥1500V AC/min |
| Withstand Voltage | 1500V AC/min |
| Temperature | -25~85°C |
| Insulation Resistance | ≥100M |
| Life | ≥10,000 cycles |
| Function | ON-OFF/ON-ON/ON-OFF-ON |
| Product Keywords | kcd1-105,rocker switch kcd1 4 pin,rocker switch series kcd1-101/3pl |
Features:
Quality assurance:
IQC, IPQC, PQC, OQC. Inspect for supplied material, production process and final product, including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. All elated raw materials are inspected as Rohs requires.
Product Specifications
| Specification of Rocker Switch | |||
| Rating | 6A/250V AC, 10A/125V AC | ||
| Rated Load | 2/8A 250V AC | ||
| Contact Resistance | ≤50MΩ | ||
| Dielectric Intensity | ≥1500V AC/min | ||
| Withstand Voltage | 1500V AC/min | ||
| Temperature | -25~85°C | ||
| Insulation Resistance | ≥100MΩ | ||
| Life | ≥10,000 cycles | ||
| Pins | 2/3 | ||
| Function | ON-OFF/ON-ON/ON-OFF-ON | ||
| Illumniated | 220V Neon Lamp | ||
| APPROVALS | |||
| CE | CQC | Rohs | TUV |
Detailed Images
|
Part | Material |
| Base Plastic | Nylon | |
| Button Plastic | PA66/ PC | |
| Terminal | Brass(tin plated) | |
| Contact | Compound silver/ Copper | |
| Spring | Tungsten steel | |
| Waterproof Cap | PVC ( If you required) | |
| Mount | Snap in | |
Application:Small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc |
||
