600m Hydraulic bore hole drill machine used portable water well drilling rigs for sale

600m Hydraulic bore hole drill machine used portable water well drilling rigs for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $29500

≥2 Sets

US $18800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 5780*1900*2610

Weight:: 10200 KG

Drilling Depth:: Max.600m

Mobility:: Crawler

After-sales Service Provided:: Engineers available to service machinery overseas

Hole Diameter:: 90-500mm

Hole Depth:: 600m

Drill pipe diameter:: 89/102/114mm

Rotation Torque:: 5500-11000

Feed Stroke:: 6600mm

Engine:: WEICHAI

Quick Details

Place of Origin:: Beijing, China

Brand Name:: JCDRILL

Voltage:: 24V

Dimension(L*W*H):: 5780*1900*2610

Weight:: 10200 KG

Drilling Depth:: Max.600m

Mobility:: Crawler

After-sales Service Provided:: Engineers available to service machinery overseas

Hole Diameter:: 90-500mm

Hole Depth:: 600m

Drill pipe diameter:: 89/102/114mm

Rotation Torque:: 5500-11000

Feed Stroke:: 6600mm

Engine:: WEICHAI

Product Description

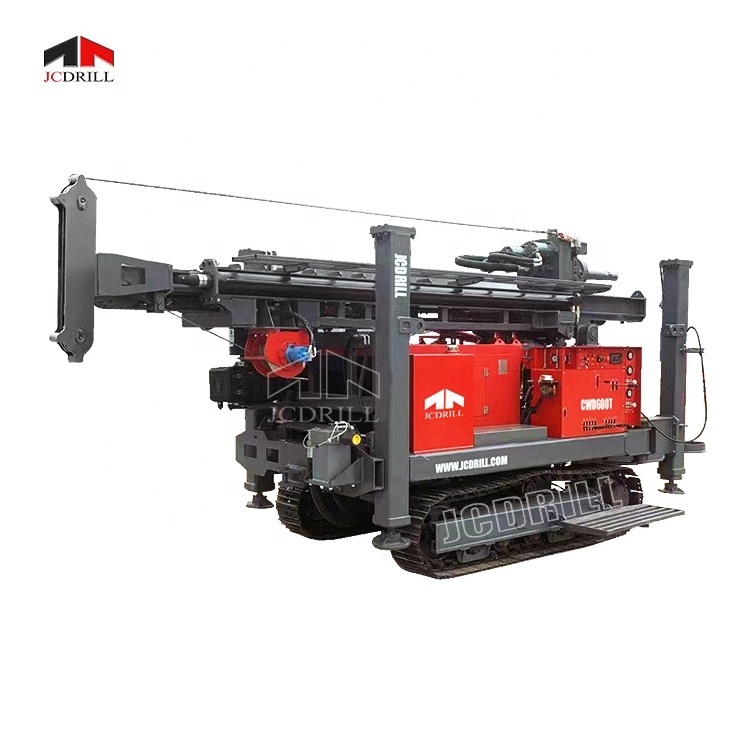

Crawler mounted hydraulic borehole drill machine water well drilling rig

>> Introduction

>>CWD600T Multi-functional track mountedwater well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.lt is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad. >>CWD600T crawler mounted drilling rig.can drilling in all kinds formations by muddrilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling. >>CWD600T deep water. well drilling rIgs. Incutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air.

>> Characteristic

>>The drilling rig can use air DTH Hammer drilling and mud drilling.

>> Centralized control console is suitable for each manipulation and control.Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>> The main drive system, the transfer case gearbox, double-winch unit, mud pump,turntable,drilling tower, feed system are setup on the chassis.

>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay,sand and rock if it is equipped with suitabledrilling bit.

>> The power of drilling rig comes from aYuchai engine,80kw Yunnei engine drivesthe large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>> The rotary head,have two gear,rotation speed is 45-140rpm stepless adjustment and the rotary torque is 5500-1100Nm. >> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling. >> It can set up a generator which is convenient to welding or illuminate for work at night. >> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation. >> The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated. >> The tools winch winch is used for auxiliary lifting and casin. >> The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping. >> Competitive in price, low cost of maintain.

Specification

Specification	Unit	CWD600T
Geology drilled		All Kind
Drilling Type		DTH & MUD
Drill system and operation		Hydraulic
Hole Diameter	mm	Φ90—Φ500
Hole Depth	m	600
Rotation Torque	Nm	5500--11000
Rotation Speed	rpm	70-140
Drill pipe diameter	mm	89/102/114
Drill pipe length	mm	6000
Max. Feed Speed	M/min	60
Max. Lifting Speed	M/min	25
Feed Stroke	mm	6600
Max. Pull back Capacity	T	32
Lifting force of Winch	T	1.5
Engine
Diesel Engine type		6Cylinder,water cooling
Diesel Engine Brand		WEICHAI
Rated Horse power	Kw	140
Compressor required(Optional)
Pressure Required	Mpa	2.0-3.5
Air consumption	m³/min	15-30
Mud Pump(Optional/Separate)
Model		BW450/BW850
Displacement	L/Min	450/850
Discharge pressure (Mpa)	Mpa	2/5
Dimension
Net Weight	T	10.2
Transportation dimension	mm	578019002610
Work Dimension	mm	410031009690
Ground Clearance	mm	305

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Overseas Service&Project

Our Service

>> Pre-sale service

>> Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.
>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

>> We have responsible team from raw material to finished products, and guarantee 100% pass rate.
>> Design and manufacture products basis of client's special equirement
>> Inspect each machine & matched accessories strictly before delivery
>> Timely inform client of production progress.

>> After Sales Service

>> We're always with you in after-sale service.
>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.
