Quick Details
-
Power:
-
18.5KW
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Hightop
-
Maximum Digging Height:
-
4800mm
-
Maximum Digging Depth:
-
3208mm
-
Machine Weight:
-
4450 kg
-
Max Digging Radius:
-
2530mm
-
Rated Speed:
-
4.4/2.4km/h
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Mini Excavator HT45
-
Rated power:
-
18.5KW
-
Bucket Capacity:
-
0.12m³
-
Engine Model:
-
KUBOTA /D1703
-
Maximum Travel speed(High/low):
-
4.4/2.4km/h
-
Maximum Grade ability:
-
58%
-
Certification:
-
ISO CE EPA
-
Machine weight:
-
4550kg
-
Machine Size(L*W*H):
-
4915mm*1720mm*2525mm
-
MOQ:
-
1 SET
Quick Details
-
Operating Weight:
-
4.5Ton
-
Bucket capacity:
-
0.12m³
-
Engine Brand:
-
Kubota
-
Power:
-
18.5KW
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Hightop
-
Maximum Digging Height:
-
4800mm
-
Maximum Digging Depth:
-
3208mm
-
Machine Weight:
-
4450 kg
-
Max Digging Radius:
-
2530mm
-
Rated Speed:
-
4.4/2.4km/h
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Mini Excavator HT45
-
Rated power:
-
18.5KW
-
Bucket Capacity:
-
0.12m³
-
Engine Model:
-
KUBOTA /D1703
-
Maximum Travel speed(High/low):
-
4.4/2.4km/h
-
Maximum Grade ability:
-
58%
-
Certification:
-
ISO CE EPA
-
Machine weight:
-
4550kg
-
Machine Size(L*W*H):
-
4915mm*1720mm*2525mm
-
MOQ:
-
1 SET

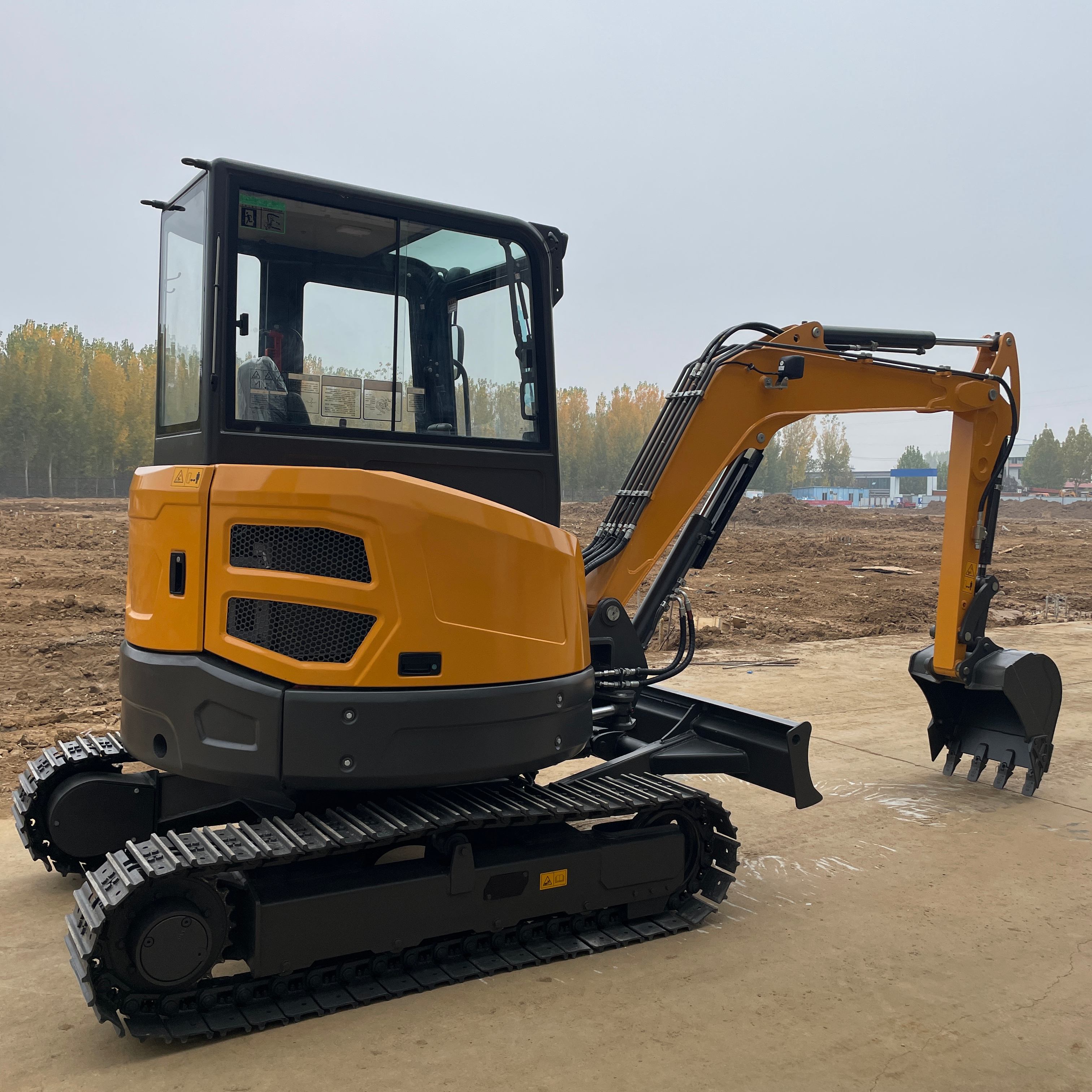

China Mini Excavator 3.5 Ton 4Ton 4.5Ton Mini Digger Excavator With EUROV/EPA Kubota D1703 Engine 25HP
The crawler excavator is a compact excavator ,which matched KUBOTA engine , the boom of excavator can swing to left or right ,suitable for different director digging for your working , fitted famous brand main pump and valves , fitted famous brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with hydraulic broken pipeline system. ensure it can work in different working environments and conditions.
With Kubota D1703 enigne, with cabin，heating and cooling air conditioning ,high and low speed, boom swing, Steel track，Hydraulic walking
1-Japan Kubota D1703 engine , 18.5kw/2200rpm, Euro 5,EPA4
2-China brand pump
3-China brand valves
4-China brand slewing motor
5-China brand driving motor
6-closed cabin
7-Hydraulic pilot servo operation system
8-Steel track :300mm，you can also choose rubber track
9-With hydraulic hammer pipeline system
10-Bucket capacity: 0.12m³
11-With dozer blade
12-with high-low speed
13-with side boom
Add my Whatsapp for discount and quick response
With Kubota D1703 enigne, with cabin，heating and cooling air conditioning ,high and low speed, boom swing, Steel track，Hydraulic walking
1-Japan Kubota D1703 engine , 18.5kw/2200rpm, Euro 5,EPA4
2-China brand pump
3-China brand valves
4-China brand slewing motor
5-China brand driving motor
6-closed cabin
7-Hydraulic pilot servo operation system
8-Steel track :300mm，you can also choose rubber track
9-With hydraulic hammer pipeline system
10-Bucket capacity: 0.12m³
11-With dozer blade
12-with high-low speed
13-with side boom
Add my Whatsapp for discount and quick response
Add my Whatsapp for discount and quick response
Add my Whatsapp for discount and quick response
24hours on-line services:
Contact: Sarah Du
Whatsapp:+8613287232510
sales068(@)sinogoldmachine.com
Product Description
|
Technical Parameters of HT45 Mini Excavator
|
|
|
|
ENGINE
|
|
|
|
Emission Standard
|
Euro 5,EPA4
|
|
|
Make /Model
|
KUBOTA /D1703
|
|
|
Power /Rotation speed
|
18.5kw(25HP)@2200rpm
|
|
|
Number of cylinder
|
3
|
|
|
Type
|
In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated
|
|
|
Max.torque
|
97.4N.m/1500rpm
|
|
|
Displacement
|
1.647L
|
|
|
TRACK DRIVING SYSTEM
|
|
|
|
Maximum Travel speed(High/low)
|
4.4/2.4km/h
|
|
|
Width of steel track shoe
|
300mm
|
|
|
Carrier roller(Each side)
|
1
|
|
|
Supporting roller(Each side)
|
4
|
|
|
PERFORMANCE PARAMETER
|
|
|
|
Standard Bucket capacity
|
0.12m³
|
|
|
Swing speed
|
9rpm
|
|
|
Maximum Grade ability
|
58%
|
|
|
Ground pressure
|
32Kpa
|
|
|
Maximum Bucket digging force
|
30.4KN
|
|
|
Maximum Arm digging force
|
18.2KN
|
|
|
Hydraulic system pressure
|
22.5Mpa
|
|
|
Machine weight
|
4400kgs
|
|
|
Boom length
|
2535mm
|
|
|
Arm length
|
1400mm
|
|
|
Fuel tank capacity
|
42L
|
|
|
Hydraulic oil tank capacity
|
48.5L
|
|
|
Engine oil capacity
|
7L
|
|
|
MACHINE SIZE
|
|
|
|
Overall dimension (L*W*H)
|
4915mm*1720mm*2525mm
|
|
|
Axle base(Track length on ground)
|
1670mm
|
|
|
Length of rubber track
|
2154mm
|
|
|
Track gauge
|
1420mm
|
|
|
Minimum Ground clearance
|
295mm
|
|
|
Swing radius at tail
|
860mm
|
|
|
Swing radius at front
|
2538mm
|
|
|
Height of blade
|
350mm
|
|
|
WORKING RANGE
|
|
|
|
Maximum Digging height
|
4800mm
|
|
|
Maximum Dumping height
|
3406mm
|
|
|
Maximum Digging depth
|
3208mm
|
|
|
Maximum Vertical digging depth
|
2957mm
|
|
|
Maximum Digging distance
|
5480mm
|
|
|
Maximum digging distance (on ground)
|
5359mm
|
|
|
Minimum swing radius
|
2530mm
|
|
|
Max.height when min.swing radius
|
3655mm
|
|
|
Maximum Lifting height of blade
|
365mm
|
|
|
Maximum Cutting depth of blade
|
385mm
|
|
|
Boom swing angle(Left/Right)
|
55°/65°
|
|
