Quick Details
-
Voltage:
-
380v 50 hz 3 phase
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Higee
-
Dimension(L*W*H):
-
2620*2500*2150mm
-
Weight:
-
3000 KG
-
Machinery Capacity:
-
100 pcs/per minute
-
Name:
-
Automatic bottle OPP BOPP film hot melt glue labeling machine
-
type:
-
labeler
-
Label size:
-
L:130-330mm W:20-145mm
-
Labeling product size:
-
L: 50-300mm W: 40-100mm
-
Labeling glue:
-
Hot melt glue at both ends of each
-
Max outer diameter of the label:
-
600 MM
-
Label inner core diameter:
-
152 MM
-
Air consumption:
-
5 MPA
-
Machine Weight:
-
2500 kg
-
Certification:
-
CE, ISO 9001
Quick Details
-
Application:
-
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
-
Packaging Type:
-
Wooden box
-
Packaging Material:
-
Wood
-
Voltage:
-
380v 50 hz 3 phase
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Higee
-
Dimension(L*W*H):
-
2620*2500*2150mm
-
Weight:
-
3000 KG
-
Machinery Capacity:
-
100 pcs/per minute
-
Name:
-
Automatic bottle OPP BOPP film hot melt glue labeling machine
-
type:
-
labeler
-
Label size:
-
L:130-330mm W:20-145mm
-
Labeling product size:
-
L: 50-300mm W: 40-100mm
-
Labeling glue:
-
Hot melt glue at both ends of each
-
Max outer diameter of the label:
-
600 MM
-
Label inner core diameter:
-
152 MM
-
Air consumption:
-
5 MPA
-
Machine Weight:
-
2500 kg
-
Certification:
-
CE, ISO 9001

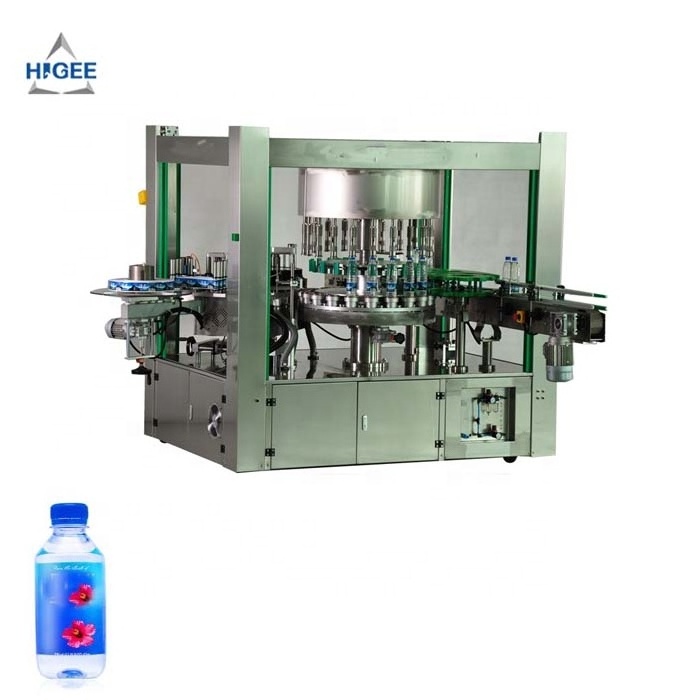

Full automatic BOPP OPP hot melt glue labeling machine round bottles labeling applicator
hot melt bottle labeling machine
opp label machine
bopp label machine
semi automatic labeling machine
The hot melt glue labeling Machine is suitable for all kinds of cylindrical objects, such as glass bottles, Plastic bottles. jars etc .
1. Main body is made by SUS304 stainless steel & high grade aluminum alloy.
2. Labeling head is driven by advanced step motor which is imported from Japan.
3. All the eye is advanced photo detector made in Japan.
4. PLC control system is equipped with human interface, including 60 groups of memory unit.
5. Labeling position and height is adjustable.
6. The transportation height can be adjusted by height of production line.
7. Be able to connect with conveyor and production line
8. Transparent label monitor for option.
You can also choose other kinds of labeling machine .
Cold glue labeling machine
If you need cold glue labeling machine , pls click this picture as below , more machine details as ref.
Sticker round bottle labeling machine
if you need sticker round bottle labeling machine ,pls click this picture as below ,more machine details as ref.
|
Name |
Opp Hot Melt Round Bottle Labeling Machine |
|
Power supply |
Three-phase 380V 50 Hz 8000W |
|
Machine dimensions: |
3000mm×2500mm ( can be adjusted by customer requirements ) |
|
Method of speed adjustment: |
8000 BPH 500 bottle and 750 ml bottle |
|
Max speed of labels feed: |
maximum speed of 100 meters labels / min |
|
Labeling precision: |
±1mm |
|
Maximum label width : |
200mm(standard width, can be adjusted ) |
|
The maximum outer diameter of label |
600mm |
|
Paper core Hot melt |
152 mm |
|
Labeling glue: |
glue at both ends of each label with hot melt |
|
Gluing temperature: |
120~160℃ |
|
Labeling type for products: |
suitable for round or square containers made of plastic, metal, glass |
|
Type of label: |
BOPP , opp label , paper-plastic composite film label , paper label |
|
Labeling stations : |
( 8per cycle ) |
|
Machine weight: |
about 3000 kg |
