Quick Details
-
Brand Name:
-
Keyu
-
Product Name:
-
Mechanical Float Valve For Pond
Quick Details
-
Port Size:
-
1/2"
-
Place of Origin:
-
Chongqing, China
-
Model Number:
-
DN15WK-T
-
Brand Name:
-
Keyu
-
Product Name:
-
Mechanical Float Valve For Pond
Mechanical Float Valve For Pond
Compared to float swicth and solenoid, it don’t need to install circuit, and the installation are simple and convenient. A man without circuit knowledge can easily install them.
Compared to brass float valve and stainless steel float valve, it have features of “ sealing better , light and compact structure,long service time, low cost ”.
Advantage of Keyu Mechanical Float Valve For Pond:
- Eco-friendly, the Keyu plastic float valve are all made of environment protection material, can be used in domestic water facilities. The raw materails are certificated by SGS and CTI. The company is certificated by BV.
- The Keyu float valve with a installation deriction adjusting function. Users can install it in different angle and location in all kinds of water tank or water tower without change piping configure.
- The Keyu float valve with a water level adjusting function. There is a nut on the joint of valve body and valve rod, unscrew this nut, you can adjust the float ball to any an accurate water level which meet your requirement.
- Runs reliably, easy to maintenance. The Keyu float valve can runs reliably in a wide rang water pressure. The minimum working pressure is 0.01 Mpa, and the maximum working pressure is 1.5 Mpa. (Different models, the working pressure are different. Please consult the specific parameter.)
- Long service time. The float valve’s life-time deponds on the gasket in the valve body. Compare to the brass float valve and stainless steel float valve, the plastic float valve’s rod make least percussive force to the gasket, so the life-time of plastic float valve are the longest.
- The newly developed different pressure auto-lock float valve highly improve the water flow rate while ensure the light and compact structure. At present, the 3/4” inch float valve’s water flow rate can reach 330.06 L/Min. (Please consult the specific parameter.)
- We can customize float valve to accord with all kinds of special demand like: acid-resisting, alkali-resisting, high temperature resistant, etc.

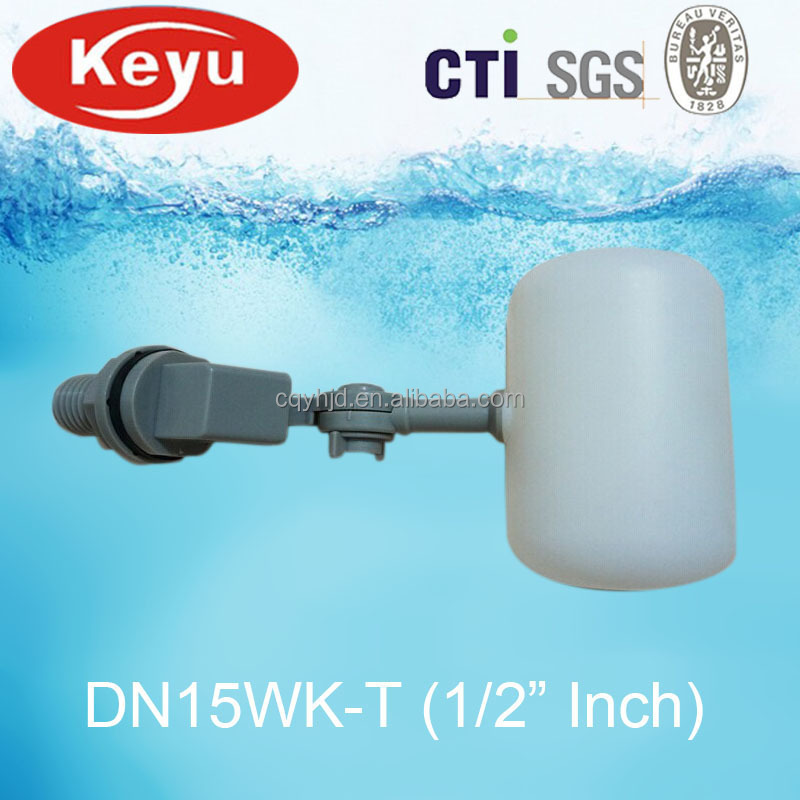

Pictures and parameters of Mechanical Float Valve For Pond
| Model | Thread | Intallation angle | Maximum Install Size | Body Material | Float Ball Material | Seals Material | Working Pressure | Working Temperature |
Flow rate
(L/min) (p=0.6Mpa) |
| DN15WK-T | 1/2 inch | vertical,horizontal | 120.2mm | ABS | PE | SR | 0.01-1.2MPa | 0-70 °C | 3.18L/Min |
Loose the screw on the arm to adjust the float position and achieve the horizontal and vertical installation. Each of install method will not affect the performance.
Tips
1.If the body and pipe joint leak water, please check water tape is wrapped and the pipe joint is tighted.
2.The Strength should suitable when tight and fix the float valve, too much excessive strength will damage the valve.
3.Please check the water inlet filter regularly and remove the garbage out in time.
4.Please do not use the cleanser which will cause damage when clean the float valve.
