Quick Details
-
Brand Name:
-
TESmart
-
Model Number:
-
NSW8808W00
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
8 Port Gigabit Switch
-
Manufacturer:
-
Yes
-
Warranty:
-
3years
-
Brand:
-
Tesla Smart
-
Item Weight:
-
338 g
-
Port:
-
8*RJ45( 10/100/1000Mbps)
-
Backplane Bandwidth:
-
16Gbps
-
MAC address MAX:
-
Up to 8k
-
Dimensions (W x D x H):
-
63(L) x 55 (W) x21 (H) mm
-
certifications:
-
CE/FCC/ROHS/HDMI Adapter/HDCP Authorization
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
1000Mbps
-
Brand Name:
-
TESmart
-
Model Number:
-
NSW8808W00
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
8 Port Gigabit Switch
-
Manufacturer:
-
Yes
-
Warranty:
-
3years
-
Brand:
-
Tesla Smart
-
Item Weight:
-
338 g
-
Port:
-
8*RJ45( 10/100/1000Mbps)
-
Backplane Bandwidth:
-
16Gbps
-
MAC address MAX:
-
Up to 8k
-
Dimensions (W x D x H):
-
63(L) x 55 (W) x21 (H) mm
-
certifications:
-
CE/FCC/ROHS/HDMI Adapter/HDCP Authorization

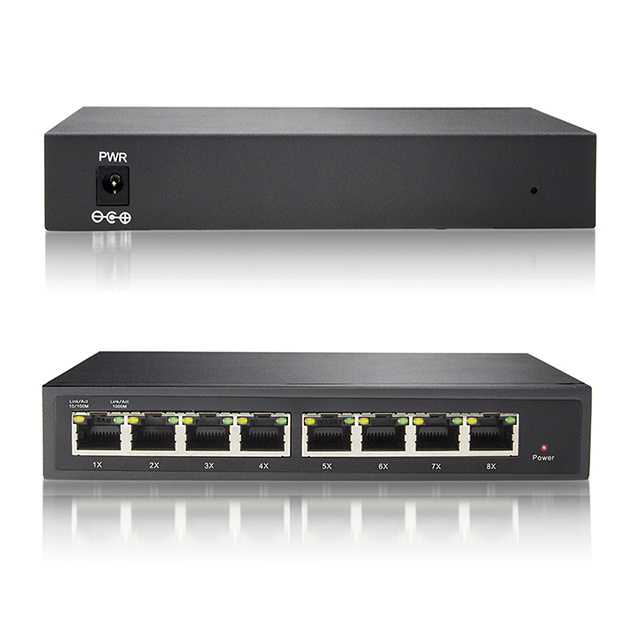

8 Port Gigabit Switch Network Switch 1000Mbps
This 1000M IGMP, features IGMP protocol. The Internet Group Management Protocol (IGMP) is a communications protocol used to establish multicast group memberships on IPv4 local area network. With the use of the IGMP protocol, it is easy to build 1-to-many and many-to-many multicast communications network.
1.8 * RJ45 ports(10/100/1000Mbps)
2.Auto negotiation for the transmission mode and speed
3.Support IGMP protocol
|
NSW8808W00 |
1000M IGMP switch |
|
Technical |
|
|
Network standard |
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z |
|
Port bandwidth |
10/100/1000Mbps |
|
MAC address MAX |
Up to 8k |
|
Backplane Bandwidth |
16Gbps |
|
ESD Protection |
Human body model - ±8kV (Air-gap discharge) |
|
Packet Forwarding ate |
1480000 (pps) |
|
Layer-3 |
IGMP |
|
Amount of ache |
1MB |
|
Port |
8*RJ45( 10/100/1000Mbps) |
|
Mechanical |
|
|
Material |
Metal |
|
Product Dimensions |
63(L) x 55 (W) x21 (H) mm |
|
Item Weight |
338 g |
|
Packing eight |
122 g |
|
Power upply |
DC 5V ~18V |
|
Operating/Storage emperature |
0 to 70 degree/-40 to 65 degree |
|
Operating Humidity |
10 to 90% RH |
1* 1000M IGMP switch
1* DC12V 1A power adapter
1* User manual
