Quick Details
-
Brand Name:
-
Pioneer Instrument
-
Model Number:
-
TDS-100M
-
Products Name:
-

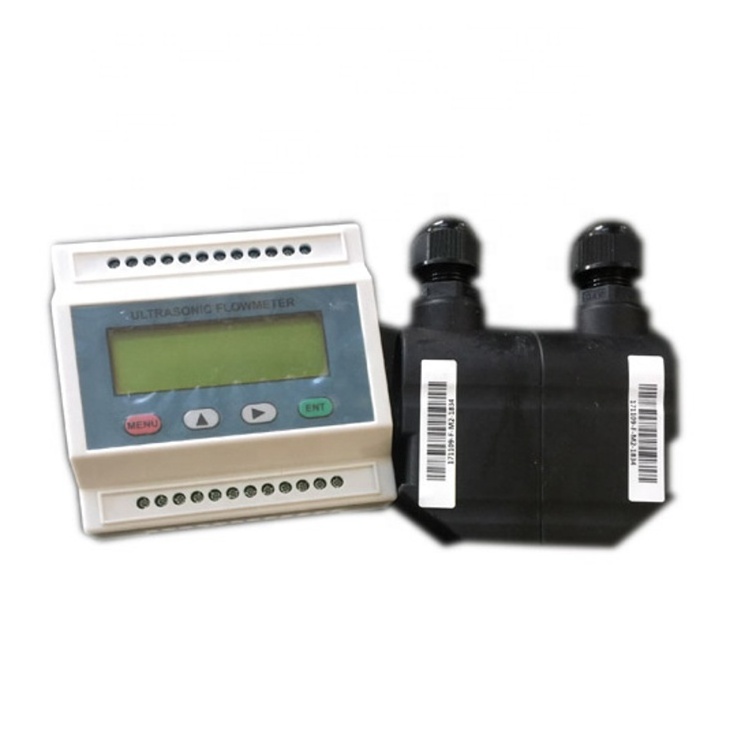

TDS-100M ultrasonic flow meter
-
Item:
-
Modular ultrasonic flow meter
-
Certificate:
-
CE Mark
-
Working time:
-
over 12 hour
-
Temperature:
-
-40-160°C
-
Weight:
-
2kg
Quick Details
-
Type:
-
Ultrasonic flow meter
-
Warranty:
-
1year
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Pioneer Instrument
-
Model Number:
-
TDS-100M
-
Products Name:
-
TDS-100M ultrasonic flow meter
-
Item:
-
Modular ultrasonic flow meter
-
Certificate:
-
CE Mark
-
Working time:
-
over 12 hour
-
Temperature:
-
-40-160°C
-
Weight:
-
2kg
|
Linearity |
0.5% |
|
Repeatability |
0.20% |
|
Accuracy |
Better than ±1% for velocity above 0.2m/s |
|
Response Time |
0-999 second, user-configurable |
|
Flow Range |
±32m/s |
|
Measuring Pipe Size |
25mm-6000mm |
|
Units |
English (U.S.) or metric |
|
Totalizer |
7-digit totalizer for net, positive and negative flow respectively |
|
Liquid Types |
Any single uniform liquid which can transmit ultrasonic |
|
Security |
Setup values Modification Lockout. Access code needs unlocking |
|
Display |
4×16 character |
|
Communication |
RS-232 interface. 75-57600bps, compatible with Fuji ultrasonic flowmeter and other UFM on enquiry. |
|
Interface |
|
|
Transducers |
Model M1 for standard, other 4 models for optional |
|
Transducer Cable |
Standard 5m x2 or can be extended to 10m x2 |
|
Power Supply |
3 AAA built-in Ni-MH batteries (for over 12 hours of operation). 100V-240VAC adapter |
|
Data Logger |
Built-in data logger can store over 2000 lines of data |
|
Manual Totalizer |
7 digit, calibrating by key |
|
Housing Material |
Flaming retarding ABS |
|
Size |
200×93×33mm |
|
Handset Weight |
400g with batteries |
