Quick Details
-
Brand Name:
-
Minghong
-
Model Number:
-
QPM11-N0
-
Max. Current:
-
0.5A
-
Max. Working Pressure:
-
1.0Mpa
-
Product name:
-
adjustable gas pressure switch
-
Type:
-
adjustable
-
Pressure Range:
-
0.1-1.0
-
Rated voltage:
-
220/240V
-
Rated current:
-
0.5A
-
Protection rating:
-
IP54
-
Max power:
-
250W
-
Application:
-
pressure control
-
Connection:
-
enternal thread
-
Thread:
-
PT1/8
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Minghong
-
Model Number:
-
QPM11-N0
-
Max. Current:
-
0.5A
-
Max. Working Pressure:
-
1.0Mpa
-
Product name:
-
adjustable gas pressure switch
-
Type:
-
adjustable
-
Pressure Range:
-
0.1-1.0
-
Rated voltage:
-
220/240V
-
Rated current:
-
0.5A
-
Protection rating:
-
IP54
-
Max power:
-
250W
-
Application:
-
pressure control
-
Connection:
-
enternal thread
-
Thread:
-
PT1/8

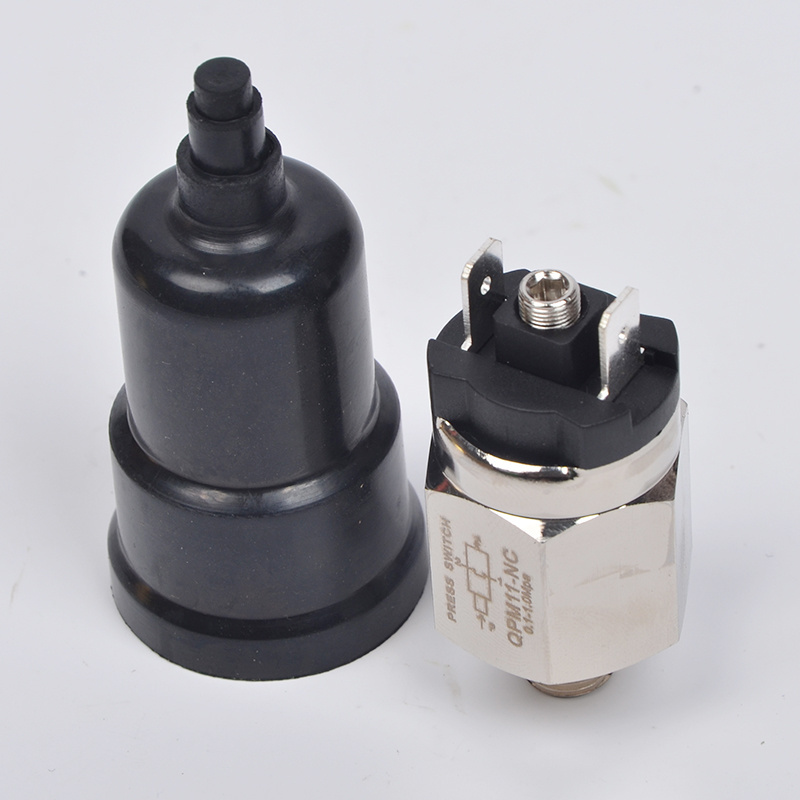

Model:QPM11 adjustable gas pressure switch
Use medium: air
Working Form: Pressure Adjustable
Installation Connection: external thread
Pressure range: 0.1-1.0 MPA (1-10Bar)
Work tempertature range: -5-60 degree
Connection: BSPT1/8 and BSPT1/4 thread, other can be customized
Work voltage: 220V/AC,110V/AC,24V/DC,12V/DC
Maximum power: 24VA, 100VA
Insulation voltage: 500V, 1500V
Rated working current: 500mA
Max pulse count: 200T/min
Service life: 100 millions cycles
Protection class: IP54
| NC: normal closed | when air pressure up to a control level, the circuit break. |
| NO: normal open, | when air pressure up to a control level, the circuit connect, |
One switch in one paper bag, 200 pieces switches in one carton. G.W= 19kgs,
Order amount less than 3000USD, usual ship by air.
Order amount more than 5000USD, usual ship by sea.
Also provide service of sending switches to somewhere in china main land.
