2.0 HDMI Switcher 5x1 Mini HDMI Matrix Switch 5 In 1 Out HDMI Switcher

2.0 HDMI Switcher 5x1 Mini HDMI Matrix Switch 5 In 1 Out HDMI Switcher

FOB Reference Price: Get Latest Price

≥1 Pieces

US $25

≥21 Pieces

US $23

≥201 Pieces

US $22

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: 2.0 HDMI Switcher 5x1 Mini HDMI Matrix Switch 5 In 1 Out HDMI Switcher

Port:: 1 HDMI Output,5 HDMI input

Function:: Audio Switching

Color:: Siliver

Feature:: Support 3D

Resolution:: 4K/60HZ

HDMI version:: 2.0

Product Type:: HDMI Signal switch

Keyword:: Switcher HDMI

Certification:: ce RoHS

Quick Details

Model Number:: HDSW5-2.0

Brand Name:: SFX

Place of Origin:: Guangdong, China

Product name:: 2.0 HDMI Switcher 5x1 Mini HDMI Matrix Switch 5 In 1 Out HDMI Switcher

Port:: 1 HDMI Output,5 HDMI input

Function:: Audio Switching

Color:: Siliver

Feature:: Support 3D

Resolution:: 4K/60HZ

HDMI version:: 2.0

Product Type:: HDMI Signal switch

Keyword:: Switcher HDMI

Certification:: ce RoHS

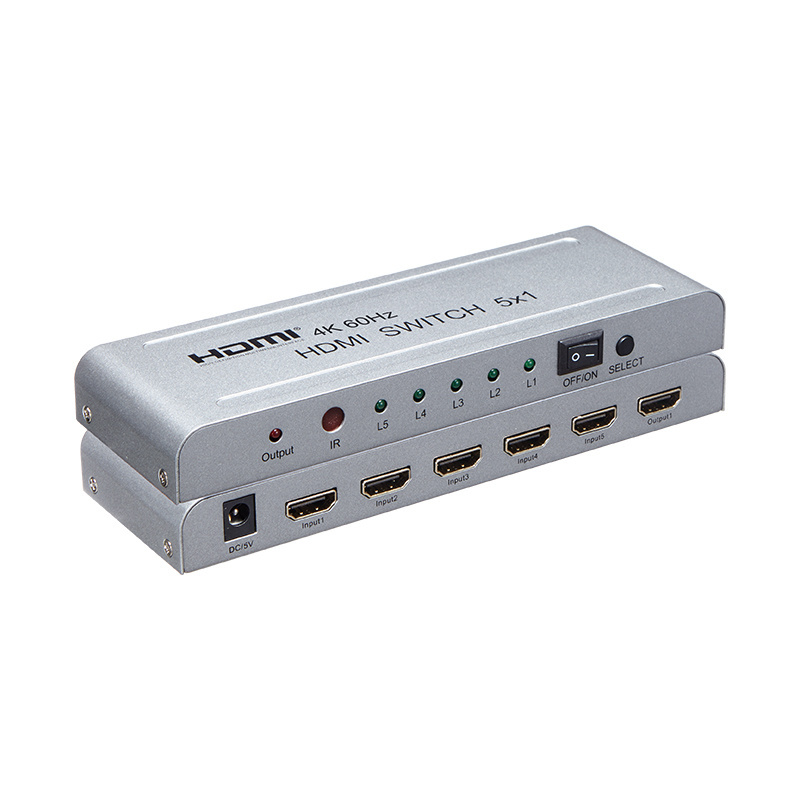

2.0 HDMI Switcher 5x1 Mini HDMI Matrix Switch 5 In 1 Out HDMI Switcher

The 5x1 HDMI switch allows 5 HDMI ports to be switched to a single display terminal via remote control or buttons on unit. The switcher can be also placed at the end of a long HDMI cable to regenerate the HDMI signal. This HDMI Switch support video formats including 720p, 1080i , 1080p, 4K/30HZ , 4K/60HZ.

FEATURES

Support 3D
Support highest video resolution 4K/60Hz
Support 6Gbps data rate for tmds clock up to 600MHz
Support 24/30/36 bit deep color
Support input up to 8 metres AWG26 HDMI standard cable length, output up to
8metres AWG26 cable length(4K/30Hz and lower resolution)
Support input up to 3 metres 4K/60Hz HDMI standard cable length, output up to
5metres 4K/60Hz HDMI cable length(4K/60Hz resolution)
Support single high definition display for multiple sources, such as DVD Players , HD Players, PS4, Set Top Boxes
Need DC5V/1A power supply

SPECIFICATIONS:

HDMI version	HDMI 2.0b
HDMI resolution	4K/60Hz
Video format	3D
Support audio format	DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Support video color format	24/30/36 bit deep color
Max bandwidth	600 MHz
Max baud rate	3x6 Gbps
Input cable distance	≤ 8 m AWG26 HDMI standard cab le(4K/30HZ); ≤3m 2.0 HDMI standard ca ble(4K/60HZ)
Output cable distance	≤ 8 m AWG26 HDMI standard cab le(4K/30HZ); ≤5m 2.0 HDMI standard ca ble(4K/60HZ)
Max working current	650 mA
Power adapter format	Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating temperature range	(-15 to +55 °C )
Dimension (LxWxH)	178x58x20 (mm)
Weight	220g
