Quick Details
-
Standard Opening Size:
-
700x900mm,700x1000mm,700x1200mm
-
Customization:
-
Available
-
Tread Material:
-
Double Faced Aluminium Profile
-
Best Height:
-
Within 3.2 meters
-
Max Height:
-
3.5 meters
-
Max load:
-
300KGS
-
Certificate:
-
CE
-
Warranty Period:
-
3 Years
Quick Details
-
Place of Origin:
-
Henan, China
-
Product Name:
-
Flexible Pull Down Attic Stairs With Railing
-
Available Color:
-
Orange,Blue,Black,White
-
Standard Opening Size:
-
700x900mm,700x1000mm,700x1200mm
-
Customization:
-
Available
-
Tread Material:
-
Double Faced Aluminium Profile
-
Best Height:
-
Within 3.2 meters
-
Max Height:
-
3.5 meters
-
Max load:
-
300KGS
-
Certificate:
-
CE
-
Warranty Period:
-
3 Years
T

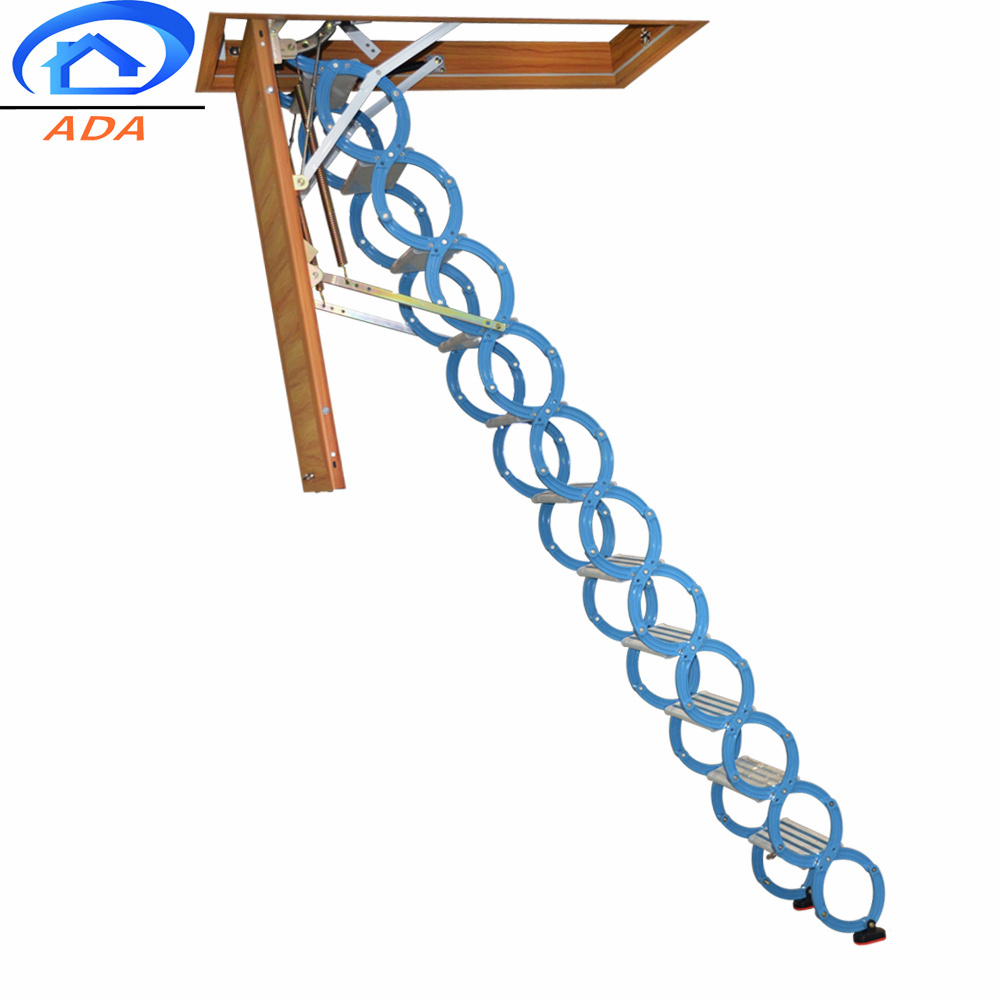

Flexible Pull Down Attic Stairs With Railing
The Flexible Pull Down Attic Stairs With Railing is mainly used in the attics,lofts,and shops where space is limited.Also as a main channel to link upstairs and downstairs.
It's stable, reasonably priced, beautiful and practical, easy to operate and install.It is the best choice to replace the fixed stair and save interior space.
Technical Parameters:
TF
| Standard Opening Size | 700x900mm,700x1000mm,700x1200mm,800x1000mm,800x1200mm |
| Best Floor Height | 2 Meters-3.5 Meters |
| Maximum loading | 300KG |
| Ladder Material | Titanium Magnesium Alloy |
| Tread Material | Double Faced Aluminium Profile |
| Tread Length | 40cm/50cm |
| Tread Width | 14cm |
| Space Between Two Treads | 25cm |
| Tread Quantity | 8-14 |
| Aluminium S shape Chain Thickness | 3.0mm |
| Tread Thickness | 3.2mm |
| Available Color | White/Black/Orange/Blue |
| Frame/Handrail Material | Steel |
| Frame Height | 12cm |
| Chains Shape | S Shape |
| Thermo Insulation Door Thickness | 27mm |
| Thermo Insulation Ratio | 1.1W/M2K |
| Hatch Door Material | 18mm Single Layer Pine+10mm Squeezing Board |
| Warranty Period | 3 Years |
Customization Notes:
If the attic opening size is not our standard size,then we provide customization service for 1 square meter area opening.Requirements as below:
1,Give us the measurements of the opening length,width,thickness.
2,Give us the vertical height from the ground floor to the ceiling.Normally,the highest height we can do is 3.5m for attic ladder.
3,Let us know if the opening near the wall or not.
Installation steps:
The Domestic Use Telescopic a Frame Step Ladder is easy to install.Please follow below steps.
Advantages of Domestic Use Telescopic a Frame Step Ladder:
1.Occupying small space
Traditional staircase is fixed and occupies certain space.But Flexible Pull Down Attic Stairs With Railing doesn't occupy any space downstairs when closed.
2.Good insulation effect
Flexible Pull Down Attic Stairs With Railing is sealed tightly,the hatch door can prevent air ventilation of downstairs and upstairs.This makes the downstairs' temperature unaffected by upstairs.
3.High concealment
When not using,the Flexible Pull Down Attic Stairs With Railing can hide in the attic with the hatch door blocking,which helps to make more reasonable use of limited space.
4.Easy operation
Flexible Pull Down Attic Stairs With Railing is easy to open and close.It is very convenient and flexible to operate.
