Quick Details
-
Warranty:
-
12 months, 12 Months
-
Brand Name:
-
Joyroad
-
Accuracy Distance:
-
0-50M
-
Power Consumption(W):
-
4W
-
Function:
-
Anti traffic
-
Function 1:
-
Audio Warning
-
Function 2:
-
VIDEO RECORD
-
Function 3:
-
DRIVER STATUS MONITORING
-
GPS:
-
GPS+Beidou
-
Application:
-
Truck
-
Product name:
-
Driver Fatigue Monitor MR688
-
Face detect:
-
Face Types
-
Main function:
-
MDVR + ADAS + DSM
-
Function 4:
-
SPEED LIMITE INDICATION
Quick Details
-
Car Fitment:
-
GAC-Honda, Oldsmobile Van, OLTCI, GALION, VECTOR, Onan Engines - Industrial
-
Voltages:
-
9-36V
-
Frequency Band:
-
band 1/3/5/7/8/18/28
-
Warranty:
-
12 months, 12 Months
-
Brand Name:
-
Joyroad
-
Accuracy Distance:
-
0-50M
-
Power Consumption(W):
-
4W
-
Function:
-
Anti traffic
-
Function 1:
-
Audio Warning
-
Function 2:
-
VIDEO RECORD
-
Function 3:
-
DRIVER STATUS MONITORING
-
GPS:
-
GPS+Beidou
-
Application:
-
Truck
-
Product name:
-
Driver Fatigue Monitor MR688
-
Face detect:
-
Face Types
-
Main function:
-
MDVR + ADAS + DSM
-
Function 4:
-
SPEED LIMITE INDICATION

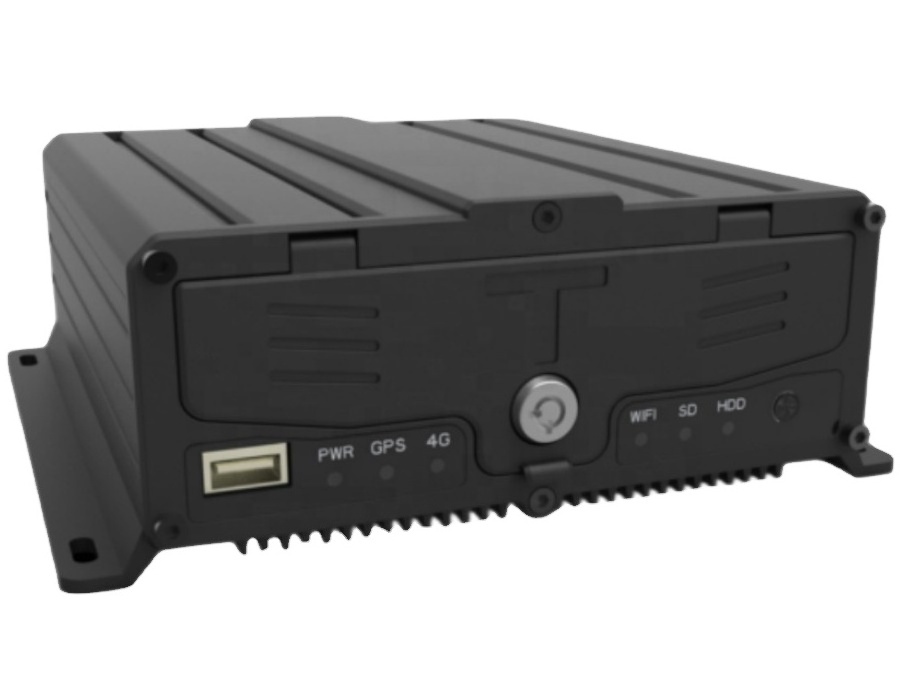

1 ,Product features
H.265 & H.264 codec is adopted to save storage space and transmission flow;
High resolution: support 8-way 1080p * 15fps / 4-way 1080p * 30fps, 720p, D1 encoding and decoding;
Support one SATA hard disk, easy to access, meet the requirements of mass storage;
One SD card and one USB interface are supported;
One SIM card can be used to dial the Internet;
It supports 6-channel IO alarm input and RS232 and RS485 functions;
Optional support WiFi, 4G, GPS and other functions;
Support mobile app, client, platform software preview video and parameter configuration;
Special file system, improve the efficiency of disk reading and writing, video more stable;
Built in AI intelligent algorithm, support ADAS, DMS, BSD detection;
Industrial appearance design, aluminum alloy shell, light and tight products, good heat dissipation;
2 ,Product specifications
|
ITEM |
PARAMETER |
|||
|
4CH |
8CH |
|||
|
OS |
Language |
Multi Language |
||
|
OS |
Linux |
|||
|
Operation interface |
Graphic menu operation interface (OSD menu), character superposition function; |
|||
|
GUI |
Support mouse and remote control operation to set system parameters |
|||
|
Processor and CPU |
CPU |
ARM Cortex CA9 Duel Core 1.4GHz |
||
|
Memory |
2GB DDR4 |
|||
|
Video System |
Video input |
4 CH CVBS ,1.0Vp-p, 75Ω |
8 CH CVBS ,1.0Vp-p, 75Ω |
|
|
Support camera resolution :1080P,720P,D1 |
||||
|
Video output |
1 CH VGA ,1CH CVBS, 1.0Vp-p, 75Ω, Support full screen and 4 / 9 channel segmentation |
|||
|
Video standard |
PAL Standard ,NTSC Standard |
|||
|
Video compression format |
H.264/H.265 Compressed format |
|||
|
Preview function |
Single CH ,4 / 9 picture mosaic Preview,Support manual / event triggered full screen display function |
|||
|
Video resolution |
Support 1080P ,720P,D1,HD1, CIF option, The total encoding resource is 1080p 150 frames |
|||
|
Video quality |
Level 1 to 8, best level 1, lowest level 8 |
|||
|
Video rate |
PAL: 100 frame/s , CCIR625 line,50 NTSC: 120frame/s, CCIR525 line,60; CIF: 256Kbps ~ 1.5Mbps, Multi level image quality HD1: 600Kbps ~ 2.5Mbps, Multi level image quality D1: 800Kbps ~ 3Mbps, Multi level image quality 720P: 1Mbps-4Mbps, Multi level image quality 1080P: 1Mbps~8Mbps, Multi level image quality |
|||
|
Video recording mode |
Default automatic recording, support ignition recording, alarm recording, etc |
|||
|
Audio System |
Audio input |
4-channel analog audio |
8-channel analog audio |
|
|
Audio output |
1 channel, built-in power amplifier, optional built-in and external |
|||
|
Compressed format |
G. 711a compression format |
|||
|
Recording mode |
Simultaneous recording of sound and video |
|||
|
Alarm input |
6-CH input |
|||
|
Alarm output |
1-way output, linkage sound and light alarm, oil and power cut, etc |
|||
|
communication interface |
1 USB interface |
|||
|
1 RS232 interface ,Expandable connection card reader, oil sensor, etc |
||||
|
1 RS485 interface ,Scalable connection PTZ |
||||
|
1 10M/100M Adaptive network interface ,Support TCP / IP, FTP, DDNS network protocol |
||||
|
Extension interface |
1 voice intercom interface, which can be connected to microphone |
|||
|
Multi function control panel can be connected (support 12V power supply and RS232 communication) |
||||
|
Wireless transmission |
Built in 4G wireless transmission function, tdd-lte, fdd-lte |
|||
|
WiFi: wireless 802.11b/g/n communication module |
||||
|
GPS location |
Support built-in GPS / BD module |
|||
|
G sensor |
Built in 3-axis acceleration and 3-axis gyroscope sensor |
|||
|
Storage |
HDD |
Built in hard disk with SATA interface, supporting up to 4T |
||
|
SD card |
1 large capacity SD card video, maximum support 512g, can support synchronous sub stream video |
|||
|
Upgrade mode |
Support u disk upgrade, SD card upgrade, FTP remote automatic upgrade |
|||
|
Storage mode |
Proprietary bare disk storage mode |
|||
|
USB |
Front USB interface, U disk can be used to upgrade backup data; Support USB mouse |
|||
|
SIM slot |
1 SIM slot |
|||
|
Video replay |
Video search |
Video data can be searched by recording time, recording method, etc |
||
|
Replay |
Support 4-way synchronous playback, support 2, 4, 8, 16x fast forward or backward |
Support 8-way synchronous playback, support 2, 4, 8, 16x fast forward or backward |
||
|
AI Functions |
ADAS |
Lane departure, pedestrian, vehicle distance detection, etc |
||
|
DSM |
Fatigue driving test, smoking, and unsafe driving habit test |
|||
|
BSD |
Left blind area, right blind area detection |
|||
|
Power supply and power consumption |
Power management |
Adaptive wide power input, with overload, undervoltage, short circuit, reverse connection and other protection functions; Support timing on-off, delay shutdown function. |
||
|
input voltage |
DC:+9V ~ +36V |
|||
|
output voltage |
+12V@1A ,+5V@1A |
|||
|
power consumption |
Normal working state < 8W (without peripherals) |
|||
|
work environment |
temperature |
-10 ℃ to +70℃ |
||
|
humidity |
20% to 80% |
|||
|
security management |
Password access |
Two level management of user password and administrator password |
||
|
Platform access |
JT/T808-2011, JT/T808-2019 |
|||
|
JT/T1076-2016, JT/T1078-2016 |
||||
|
TTX private protocol, gb28181, RTMP optional |
||||
|
Appearance size |
195mm*183mm*60mm |
|||
|
Net weight |
1.6kg |
|||
