Quick Details
-
Ice storage capacity:
-
30kg, 40kg, 80KG, 140kg, 350KG, 400kg, 700kg, 900kg
-
Place of Origin:
-
China
-
Brand Name:
-
JY
-
Dimension(L*W*H):
-
562*830*1560 mm
-
Weight:
-
70 KG
-
Name:
-
Cube ice machine
-
Type:
-
Automatic Ice Maker
-
Material:
-
Stainless Steel
-
Keyword:
-
Commercial Block Ice Making Machine
-
Daily capacity:
-
45kg/d
-
Feature:
-
High Efficiency
-
Power supply:
-
320w
-
Control system:
-
Automatic Control System
-
Ice size:
-
29mm*29mm*22mm /22mm*22mm*22mm
Quick Details
-
Ice Shape:
-
Ice Cube
-
Voltage:
-
220V
-
Power:
-
0.8kW
-
Ice storage capacity:
-
30kg, 40kg, 80KG, 140kg, 350KG, 400kg, 700kg, 900kg
-
Place of Origin:
-
China
-
Brand Name:
-
JY
-
Dimension(L*W*H):
-
562*830*1560 mm
-
Weight:
-
70 KG
-
Name:
-
Cube ice machine
-
Type:
-
Automatic Ice Maker
-
Material:
-
Stainless Steel
-
Keyword:
-
Commercial Block Ice Making Machine
-
Daily capacity:
-
45kg/d
-
Feature:
-
High Efficiency
-
Power supply:
-
320w
-
Control system:
-
Automatic Control System
-
Ice size:
-
29mm*29mm*22mm /22mm*22mm*22mm
Product Description

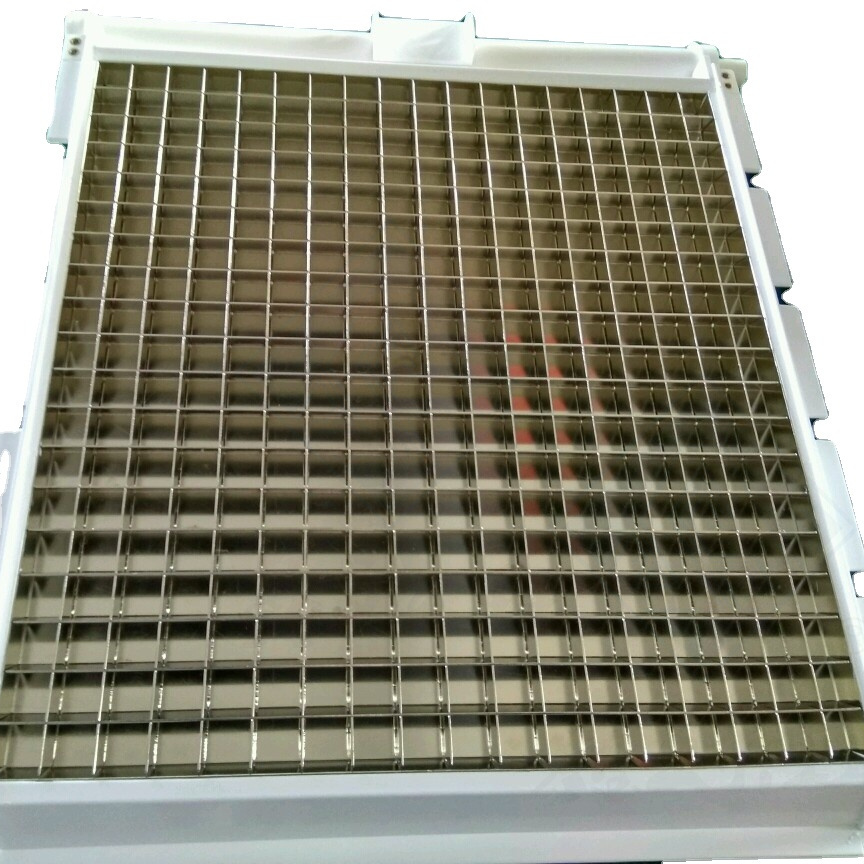

40*40*22mm ice evaporator ice machine cube mold for square ice maker machine evaporator
|
Grids quantity
|
Maximum production capacity
|
Evaporator size
|
Grids size
|
|||
|
5*9
|
48kgs/day
|
237*259mm
|
22*22*22mm
|
|||
|
5*10
|
54kgs/day
|
237*282mm
|
22*22*22mm
|
|||
|
5*11
|
60kgs/day
|
237*305mm
|
22*22*22mm
|
|||
|
5*12
|
65kgs/day
|
237*328mm
|
22*22*22mm
|
|||
|
5*14
|
75kgs/day
|
237*374mm
|
22*22*22mm
|
|||
|
5*16
|
86kgs/day
|
237*420mm
|
22*22*22mm
|
|||
|
5*18
|
97kgs/day
|
237*466mm
|
22*22*22mm
|
|||
|
6*14
|
90kgs/day
|
260*374mm
|
22*22*22mm
|
|||
|
6*18
|
116kgs/day
|
260*466mm
|
22*22*22mm
|
|||
|
7*18
|
136kgs/day
|
282*466mm
|
22*22*22mm
|
|||
|
9*12
|
116kgs/day
|
330*330mm
|
22*22*22mm
|
|||
|
11*18
|
215kgs/day
|
376*468mm
|
22*22*22mm
|
|||
|
12*13
|
170kgs/day
|
422*537mm
|
22*22*22mm
|
|||
|
13*18
|
252kgs/day
|
422*468mm
|
22*22*22mm
|
|||
|
13*21
|
295kgs/day
|
422*537mm
|
22*22*22mm
|
|||
|
11*17
|
295kgs/day
|
422*537mm
|
28*28*22mm
|
|||
|
14*13
|
196kgs/day
|
399*353mm
|
22*22*22mm
|
|||
|
17*21
|
385kgs/day
|
514*537mm
|
22*22*22mm
|
|||
|
19*18
|
370kgs/day
|
560*468mm
|
22*22*22mm
|
|||
|
19*21
|
430kgs/day
|
560*537mm
|
22*22*22mm
|
|||
|
16*17
|
430kgs/day
|
560*537mm
|
28*28*22mm
|
|||
|
11*12
|
430kgs/day
|
560*537mm
|
40*40*22mm
|
|||
|
21*23
|
520kgs/day
|
537*604mm
|
22*22*22mm
|
|||
|
Any size can be customized, please contact!
|
|
|
|
|||
Specification
Product features:
*Mainly used for quick cycle ice-making of household and commercial ice machine *It is made of copper by welding, with advantage of heat exchanging.
*In the back of ice board, it is using "D" tube or ellipse tube connection to enlarge the interface area of evaporator and ice
board, so it can enhance the efficiency of heat exchanging, shorten the time of ice making and ice dropping and improve the ice making capacity and ice cube quality.
*The evaporator surface is chemistry plated by nickel which accords with environmental-friendly and food safety demands. Compared with traditional electroplated,the chemistry plated by nickel is better in dense, lower in hole. The perfect combine of plating sheet and base material can protect the product surface well and improve the antiseptic capacity.
*There is 72°~85°incline between the horizontal septa and ice board, so that the ice cube can be dropped smoothly when ice dropping.
*The ice cube is nearly square and it is transparent with high density.
Working principle:
By evaporating the refrigerant in tube,the heat is transferred to ice board;by recycle water pump,the water flows into the ice
grid through spaying pipe,it can make ice in cooling conditions and ice drop in heating conditions.
*Mainly used for quick cycle ice-making of household and commercial ice machine *It is made of copper by welding, with advantage of heat exchanging.
*In the back of ice board, it is using "D" tube or ellipse tube connection to enlarge the interface area of evaporator and ice
board, so it can enhance the efficiency of heat exchanging, shorten the time of ice making and ice dropping and improve the ice making capacity and ice cube quality.
*The evaporator surface is chemistry plated by nickel which accords with environmental-friendly and food safety demands. Compared with traditional electroplated,the chemistry plated by nickel is better in dense, lower in hole. The perfect combine of plating sheet and base material can protect the product surface well and improve the antiseptic capacity.
*There is 72°~85°incline between the horizontal septa and ice board, so that the ice cube can be dropped smoothly when ice dropping.
*The ice cube is nearly square and it is transparent with high density.
Working principle:
By evaporating the refrigerant in tube,the heat is transferred to ice board;by recycle water pump,the water flows into the ice
grid through spaying pipe,it can make ice in cooling conditions and ice drop in heating conditions.
Packing & Delivery
Export Standard Package
