Quick Details
-
Model Number:
-
T house
-
Product Type:
-
T house
-
Main structure:
-
square tube steel keel, 1.8-2.0 mm thickness
-
Wall system:
-
Eps/ Glass wool sandwich panel
-
Roof:
-
Sandwich panel+ decoration ceiling
-
Window:
-
PVC window
-
Door:
-
Steel security door
-
Sandwich panel thickness:
-
50/75/100 mm
-
Color steel sheet thickness:
-
0.286/0.326/0.376/0.426/0.476 mm
-
Other fittings:
-
Shower, toilet, kitchen etc
-
Earthquake resistance:
-
6-7 magnitude
-
Certificate:
-
ISO, CE
Quick Details
-
Application:
-
living
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Magiccore
-
Model Number:
-
T house
-
Product Type:
-
T house
-
Main structure:
-
square tube steel keel, 1.8-2.0 mm thickness
-
Wall system:
-
Eps/ Glass wool sandwich panel
-
Roof:
-
Sandwich panel+ decoration ceiling
-
Window:
-
PVC window
-
Door:
-
Steel security door
-
Sandwich panel thickness:
-
50/75/100 mm
-
Color steel sheet thickness:
-
0.286/0.326/0.376/0.426/0.476 mm
-
Other fittings:
-
Shower, toilet, kitchen etc
-
Earthquake resistance:
-
6-7 magnitude
-
Certificate:
-
ISO, CE

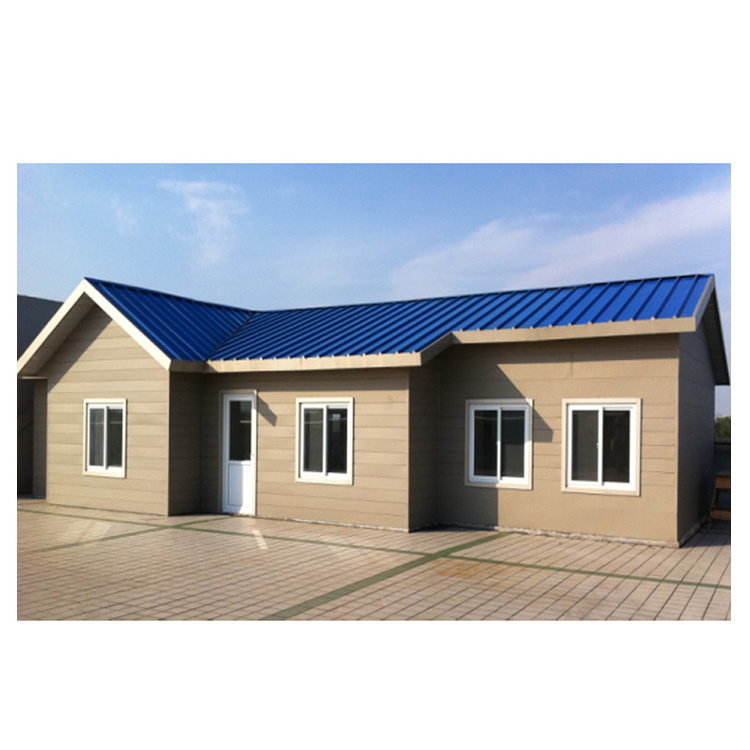

ISO certified prefab houses SIP prefabricated house mansion house designs
The frame is connected by screw, put panel into the C steel channel.
You can choose Steel door/Panel door and PVC/Alluminum Alloy window.
It can be applied for living room,office,meeting room and so on.
It can resist the Climate conditions -20°C-45°C, 8 Degree earthquake conditions.
1.Ordinary Prefab house(K house/ T house)
2. Residential Villa house (Light Steel Villa)
3. Container house. ( Flat pack container house/ Foldable container house)
4. Warehouse
Application:
1.Ordinary Prefab house (K house and T house)
Can be used as temporary dormitory for House Construction/ Road/Railway/Bridge/Dam/Power Station Project site workers.
Can be used as Office/Kitchen room/ Canteen/Toilet/Shower room .
Can be used as low cost Hospital/School etc.
2.Villa house
As Residential House with best living experience.
3. Container house
As emergency house/ security booth/ living quarter/ class room etc.
4. Warehouse
As workshop/ barn etc.
T House Structure:
House Materials:
Standard size: mT*nT*H (Width*Length*Height)
T=0.95m,m/n=any length as customers requirement.
|
Steel Structure
|
Pillar |
Galvanized square tube 80*80*2.0 / 100*100*2.0 / 100*100*3.0mm |
|
Periphery Beam |
Galvanized square tube 80*80*2.0mm |
|
|
Second Floor Beam |
C80*40*15*2.0 |
|
|
Floor Purlin |
40*60*1.3 |
|
|
Roof Beam |
C80*40*15*2.0 |
|
|
Roof Purlin etc |
#4 Angle Iron |
|
|
Floor |
Second floor |
15mm ploywood board |
|
Roof and Wall |
Roof Panel |
Corrugated 50/75/100mm Eps/Glass wool Sandwich Panel |
|
Wall Panel |
50/75/100mm Eps/Glass wool Sandwich Panel |
|
|
Door and Window |
Door |
Panel/Pvc/aluminium |
|
Window |
Pvc/aluminium 950*1000mm |
|
|
Accessory |
Edge cover/Glue/Screw etc |
|
|
All materials can be customized as your need when big quantity. |
||
Technical Parameters
|
No |
Item |
Parameter |
|
A |
Overall weight |
50~60kg/sqm |
|
B |
Anti sesmic |
8 grade |
|
C |
Wind-proof capacity |
wind speed 20m/s, resist 8grade wind |
|
D |
Floor loading capacity |
150kg/sqm |
|
E |
Roof loading capacity |
60kg/sqm |
|
F |
External wall bearing capacity |
50kg/sqm |
|
G |
Wall Coefficient of thermal conductivity |
K=0.442W/m2k |
|
H |
External and internal wall heat transmission coefficient | 0.35Kcal/m2hc |
Features :
1. Reliable structure :
C/H/Square tube steel structure is the frame of our building, which meets the design requirements of steel structure.
2. Easy to install and disassemble :
Standardized components make it easy to install and dismantle. It is especially suitable for emergency projects.
3. Attractive appearance :
Because prepainted steel sheet or sandwich panel is adopted, have different sandwich panel color and pattern to choose.
4. Environment friendly and economical :
Reasonalbe design makes it reusable. The reusable character makes it environment friendly and economical.
5. Cost efficient :
First class material, reasonable price, once and for all investment, low requirements for base and short completion time make it cost efficient.
Advantage:
|
1. Easy Installation, Low Cost (Reasonable price). |
|
2. Different colors options to make beautiful appearance. |
|
3. Custom Design & Flexible design. |
|
4. Perfect Heat Insulation, Good Sound Insulation. |
|
5. Environmental friendly, no pollution. |
|
6. More than 20 years life span with proper use. |
|
7. Safe and Steady, Stand 8 grade earthquake and 10 grade wind. |
|
8. Reused for 5-6 times. |
|
9. All the inner equipments can be easily to be fixed. |
Usually trained 5 worker in one team.
One people can install 30-40 square meters per day.
We can send engineer to instruct your installation if you need.
