Quick Details
-
Dimension(L*W*H):
-
1650*1050*1500mm
-
Year:
-
2023
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
1000 KG
-
Nominal Clamp mold Force:
-
50t
-
Plate Size:
-
400x400
-
Working Layers:
-
2layers
-
Piston Diameter:
-
200mm
-
Stroke:
-
250
-
Plate Distance:
-
125mm
-
Unit Area Pressure:
-
3.1
-
Motor Power:
-
1.5kw
-
Weight:
-
1300kgs
-
Size:
-
1500x750x1500
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QRRPMM
-
Voltage:
-
380V/50Hz or Customize
-
Dimension(L*W*H):
-
1650*1050*1500mm
-
Year:
-
2023
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
1000 KG
-
Nominal Clamp mold Force:
-
50t
-
Plate Size:
-
400x400
-
Working Layers:
-
2layers
-
Piston Diameter:
-
200mm
-
Stroke:
-
250
-
Plate Distance:
-
125mm
-
Unit Area Pressure:
-
3.1
-
Motor Power:
-
1.5kw
-
Weight:
-
1300kgs
-
Size:
-
1500x750x1500

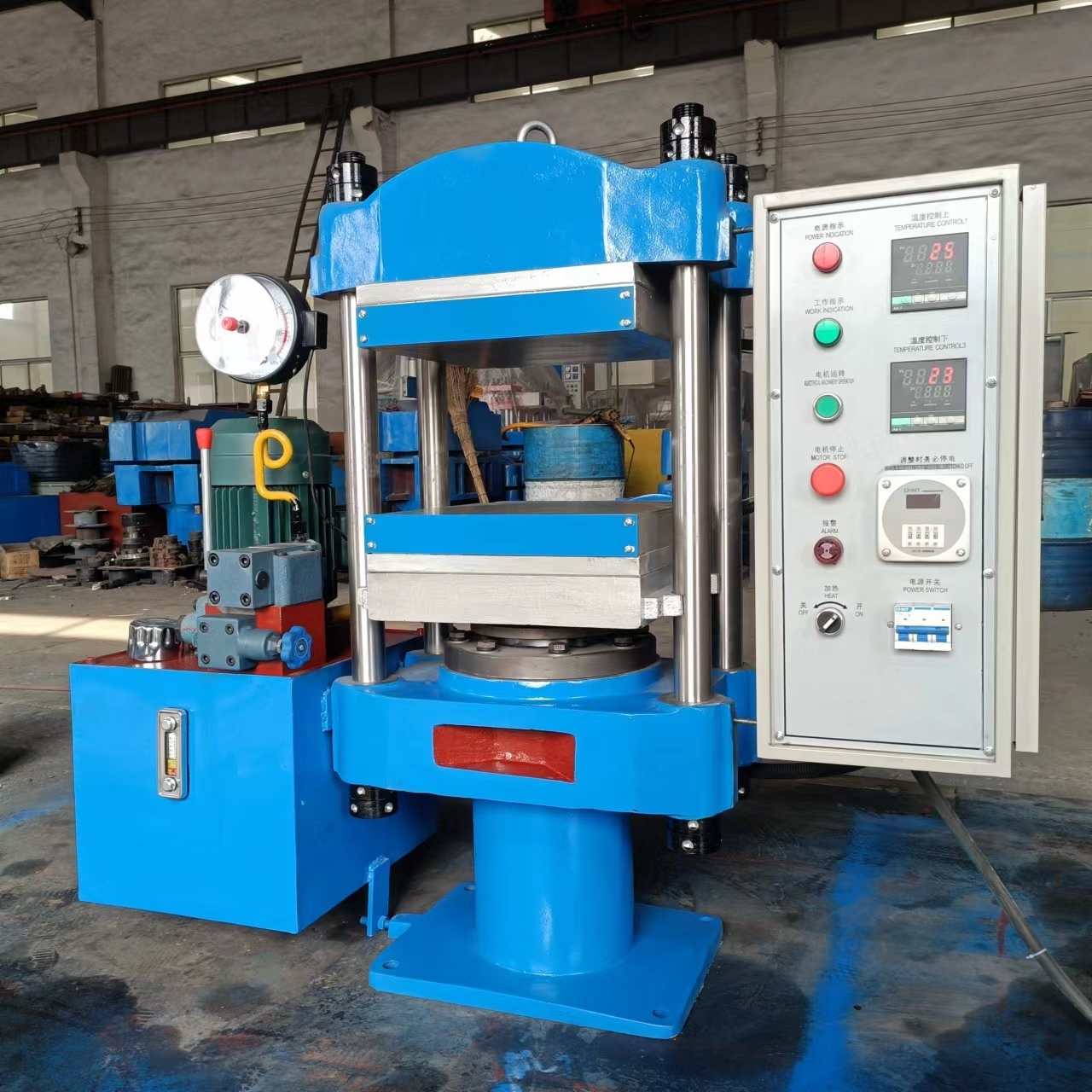

Rubber Plate Vulcanizer
This series plate vulcanizing machine special-purpose takes shape the equipment for the rubber profession.Heats up the way to uses
the electric heating(steam or oil heats up),the power uses the height combination to pump for the oil way, reduces the equipment
the power loss.
The electrical control uses the advanced PLC control technology,may realize automatic controls when, automatically operates the
mold,is automatic warm controls and so on the craft.And may realize automatically deflates. Thus guarantee product quality and
high efficiency.
May have custom-made each kind of four columns,the frame type, the work table emigration-ton type,the work table emigration type
in addition according to the customer product technological requirement and so on the many kinds of plates vulcanizing machine.
the electric heating(steam or oil heats up),the power uses the height combination to pump for the oil way, reduces the equipment
the power loss.
The electrical control uses the advanced PLC control technology,may realize automatic controls when, automatically operates the
mold,is automatic warm controls and so on the craft.And may realize automatically deflates. Thus guarantee product quality and
high efficiency.
May have custom-made each kind of four columns,the frame type, the work table emigration-ton type,the work table emigration type
in addition according to the customer product technological requirement and so on the many kinds of plates vulcanizing machine.
|
ype
|
XLB-D/Q400×400×2E
|
XLB-D/Q600×600×2D
|
XLB-D/Q750×850×2
|
|
|
Nominal clamp mould force
|
0.5
|
1.0/1.6
|
1.6
|
|
|
Specification of hot plate
|
400×400
|
600×600
|
750×850
|
|
|
Number of working layer
|
2
|
2
|
2
|
|
|
Piston diameter
|
Ф200
|
Ф300/ф320
|
Ф360
|
|
|
Max.stroke of piston
|
250
|
350/450
|
500
|
|
|
Distance between hot plate
|
125
|
150
|
150
|
|
|
Unit area pressure of hot plate
|
3.1
|
3.1
|
3.1
|
|
|
Motor power
|
1.5
|
2.78/4.44
|
2.5
|
|
|
weight
|
1300
|
2600
|
5000
|
|
|
Overall size
|
1500×750×1500
|
2000×700×1700
|
2550×960×2100
|
|
|
Close mould speed
|
≥12
|
≥12
|
≥12
|
|
|
Open mould speed
|
≥12
|
≥12
|
≥12
|
|
|
No.
|
Parameter
|
Xlb-0.80MN
|
|
|
|
1
|
Nominal Mold Clamping Force
|
0.80MN（80t）
|
|
|
|
2
|
Hot Plate Specifications
|
550x550x60mm
|
|
|
|
3
|
Number Of Working Layers
|
4layers
|
|
|
|
4
|
Number Of Hot Plates
|
5pcs
|
|
|
|
5
|
Heating Method
|
Electric Heating
|
|
|
|
6
|
Heating Temperature
|
Adjustable Between 0-200℃
|
|
|
|
7
|
Temperature Control Method
|
Digital Display
|
|
|
|
8
|
Pressure Per Unit Area
|
26kg/Cm²
|
|
|
|
9
|
Hot Plate Spacing
|
150mm
|
|
|
|
10
|
Plunger Stroke
|
600mm
|
|
|
|
11
|
Control Method
|
Automatic Control
|
|
|
|
12
|
Number Of Cylinders
|
1set
|
|
|
|
13
|
Plunger Diameter
|
Ø250mm
|
|
|
|
14
|
System Hydraulic Pressure
|
16Mpa
|
|
|
|
15
|
Structure Type
|
Four-Column
|
|
|
|
16
|
Number Of Columns
|
4pcs
|
|
|
|
17
|
Push And Pull Method
|
Manual Push And Pull
|
|
|
|
18
|
Number Of Slides
|
4sets
4 Sets Each At The Front And Rear |
|
|
|
19
|
Motor Power
|
2.2kw
|
|
|
