Quick Details
-
Brand Name:
-
Greensun
-
Model Number:
-
LFP48-100
-
Place of Origin:
-
Anhui, China
-
Weight:
-
10kg
-
The charging ratio:
-
1C
-
The discharge rate:
-
1C
-
Electric Energy:
-
1280 Wh
-
Product name:
-
lithium battery 18650
-
Material:
-
ABS Plastic
-
Battery Type:
-
Lithium Iron Phosphate Battery
-
Cycle Life::
-
6000Cycles
-
Application::
-
Solar, Wind, UPS
-
Certification::
-
CE/RoHS/UN38.3/MSDS
-
OEM/ODM::
-
Acceptable
-
Warranty:
-
12 Years
-
Package:
-
Carton
-
Delivery time:
-
15 days after receive the payment
Quick Details
-
Storage Type:
-
Dry, Cool and Ventilation
-
Anode Material:
-
LFP
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts
-
Brand Name:
-
Greensun
-
Model Number:
-
LFP48-100
-
Place of Origin:
-
Anhui, China
-
Weight:
-
10kg
-
The charging ratio:
-
1C
-
The discharge rate:
-
1C
-
Electric Energy:
-
1280 Wh
-
Product name:
-
lithium battery 18650
-
Material:
-
ABS Plastic
-
Battery Type:
-
Lithium Iron Phosphate Battery
-
Cycle Life::
-
6000Cycles
-
Application::
-
Solar, Wind, UPS
-
Certification::
-
CE/RoHS/UN38.3/MSDS
-
OEM/ODM::
-
Acceptable
-
Warranty:
-
12 Years
-
Package:
-
Carton
-
Delivery time:
-
15 days after receive the payment

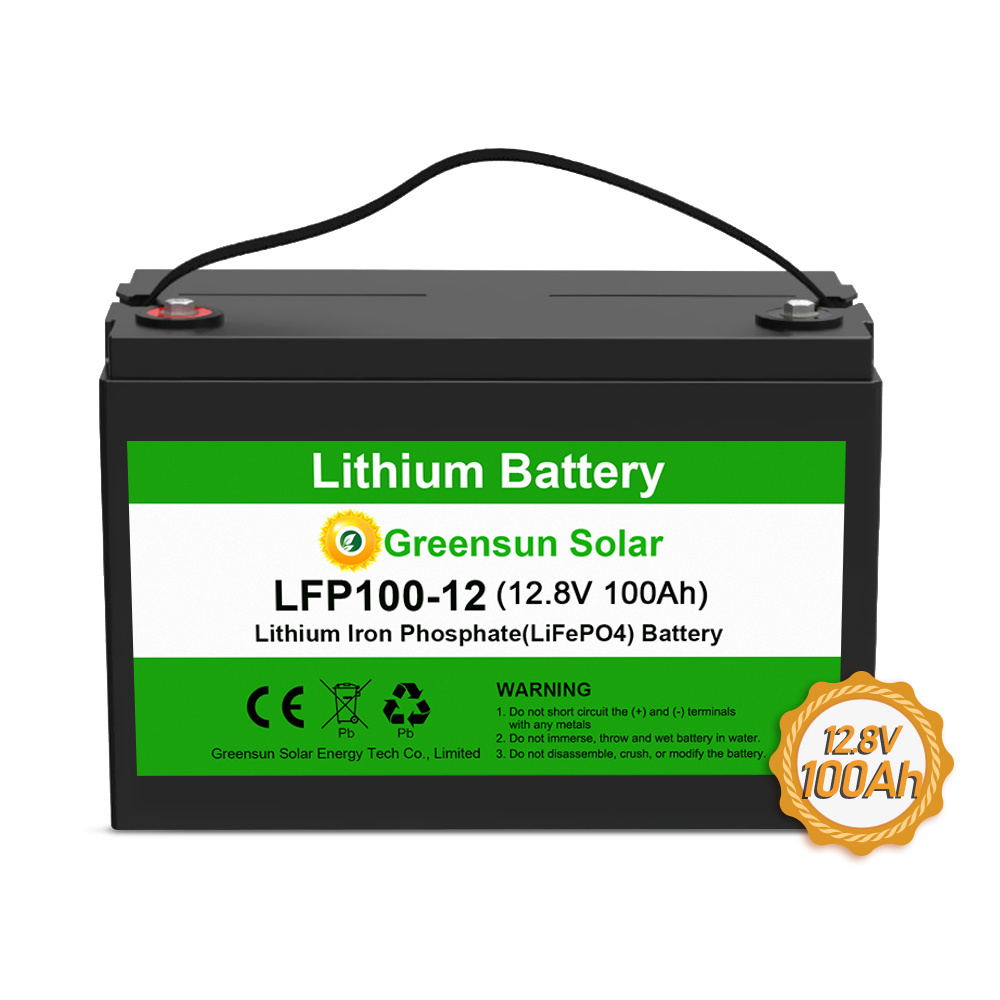

Products Description
Configuration
|
Model
|
LFP100-12
|
LFP150-12
|
LFP200-12
|
LFP250-12
|
LFP300-12
|
|||||
|
Electrical Charateristics
|
|
|
|
|
|
|||||
|
Nominal Volage
|
12.8V
|
|
|
|
|
|||||
|
Nominal Capacity
|
100AH
|
150AH
|
200AH
|
250AH
|
300AH
|
|||||
|
Energy
|
1280WH
|
1920WH
|
2560WH
|
3200WH
|
3840WH
|
|||||
|
Internal Resistance (AC)
|
≤20mΩ
|
|
|
|
|
|||||
|
Cycle Life
|
>6000 cycles @0.5C 80%DOD
|
|
|
|
|
|||||
|
Months self Discharge
|
<3%
|
|
|
|
|
|||||
|
Efficiency of Charge
|
100%@0.5C
|
|
|
|
|
|||||
|
Efficiency of discharge
|
96-99% @0.5C
|
|
|
|
|
|||||
|
Standard Charge
|
|
|
|
|
|
|||||
|
Charge Voltage
|
14.6± 0.2V
|
|
|
|
|
|||||
|
Charge Mode
|
0.5C to 14.6V, then 14.6V,charge current to 0.02C(CC/cV)
|
|
|
|
|
|||||
|
Charge Current
|
100A
|
|
|
|
|
|||||
|
Max.Charge Current
|
100A
|
|
|
|
|
|||||
|
Charge Cut-off Voltage
|
14.6± 0.2V
|
|
|
|
|
|||||
|
Standard Discharge
|
|
|
|
|
|
|||||
|
Continuous Current
|
100A
|
|
|
|
|
|||||
|
Max.Pulse Current
|
120A(<3S)
|
200A(<3S)
|
300A(<5S)
|
400A(<3S)
|
450A(<3S)
|
|||||
|
Discharge Cut-off Voltage
|
10V
|
|
|
|
|
|||||
|
Environmental
|
|
|
|
|
|
|||||
|
Charge Temperature
|
0 ℃to 55℃ (32F to 131F)@60± 25% Relative Humidity
|
|
|
|
|
|||||
|
Discharge Temperature
|
-20 ℃to 60℃ (-4F to 140F)@60± 25% Relative Humidity
|
|
|
|
|
|||||
|
Storage Temperature
|
-20 ℃to 45℃ (-4F to 113F)@60± 25% Relative Humidity
|
|
|
|
|
|||||
|
IP Class
|
IP65
|
|
|
|
|
|||||
Factory and Production
Greensun Solar Energy Tech. Co., Limited is a professional, fast growing company. Greensun Solar is well known as a world leading manufacturer of cost-effective, high efficiency and good quality photovoltaic panel, storage battery, and complete solar energy system for residential and C&I application.
Having professional engineering team, Greensun Solar provide best design and customization of One-Stop Solar Solution. Greensun Solar was founded in 2004, headquartered in Hefei, Anhui China.
Our factory covers 90,000 square meters area and has more than 2,000 employees. Greensun Solar has 15years experience in solar industry and is dedicated to research and development, production innovation and strict quality control management.
We have comprehensive product range: solar panel, inverter, controller, battery, on grid and off grid solar system, hybrid solar system and solar pump system.
We aim to manufacture and provide reliable and innovated solar panel and solar energy solutions to the world.
We aim to manufacture and provide reliable and innovated solar panel and solar energy solutions to the world.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

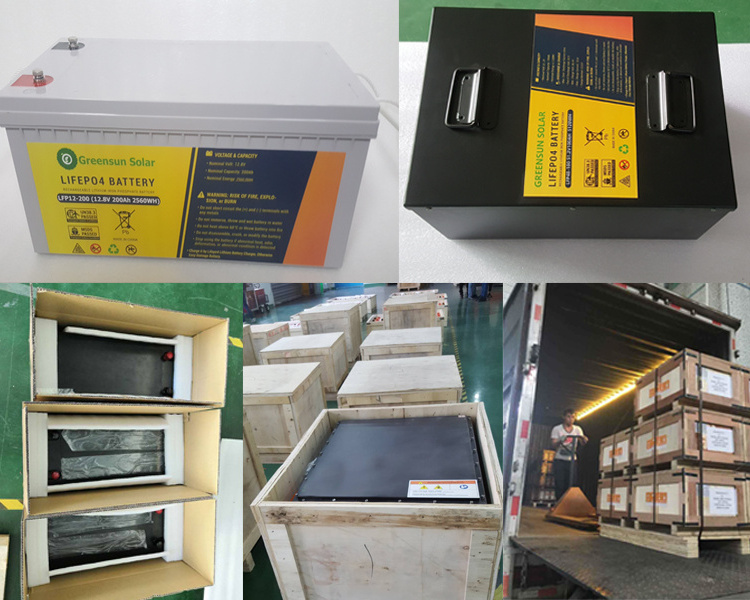

Product packaging
After detailed testing, all lithium batteries will be packed in cartons.
After the on-site inspection by the Chinese customs agency, a shipping appraisal certificate and a dangerous package certificate will be issued, and then packed in a special wooden box to ensure safety during transportation.
Certifications
Why Choose Us
1. We are a real factory and have strict requirements on the quality of products.
2. We provide OEM services for many leading companies around the world.
It has long-term cooperation with Longi, Risen, Jinko and other first-line brands.
3. As a factory, we have better control over product costs.
4. Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
