Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Rongda
-
Voltage:
-
380V 50HZ
-
Power:
-
10.4kw
-
Dimension(L*W*H):
-
L3500*W3500*H2000mm
-
Weight:
-
4500 kg
-
Case size(A*B):
-
MIN: 70*70mm MAX: 680*400mm
-
Paper size(A*B):
-
MIN: 100*100mm MAX: 710*430mm
-
Paper thickness:
-
100~300g/m2
-
Cardboard thickness:
-
1~5mm
-
Precision:
-
0.01mm
-
Production speed:
-
max 37sheets/min
-
Motor Power:
-
20kw/380v 3phase
-
After Warranty Service:
-
Video technical support
-
Product name:
-
CM680
-
Machine for:
-
book cover gift box
Quick Details
-
Production Capacity:
-
max 38sheets/min
-
Product Type:
-
case making machine
-
Processing Type:
-
case making machine
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Rongda
-
Voltage:
-
380V 50HZ
-
Power:
-
10.4kw
-
Dimension(L*W*H):
-
L3500*W3500*H2000mm
-
Weight:
-
4500 kg
-
Case size(A*B):
-
MIN: 70*70mm MAX: 680*400mm
-
Paper size(A*B):
-
MIN: 100*100mm MAX: 710*430mm
-
Paper thickness:
-
100~300g/m2
-
Cardboard thickness:
-
1~5mm
-
Precision:
-
0.01mm
-
Production speed:
-
max 37sheets/min
-
Motor Power:
-
20kw/380v 3phase
-
After Warranty Service:
-
Video technical support
-
Product name:
-
CM680
-
Machine for:
-
book cover gift box
Product Description

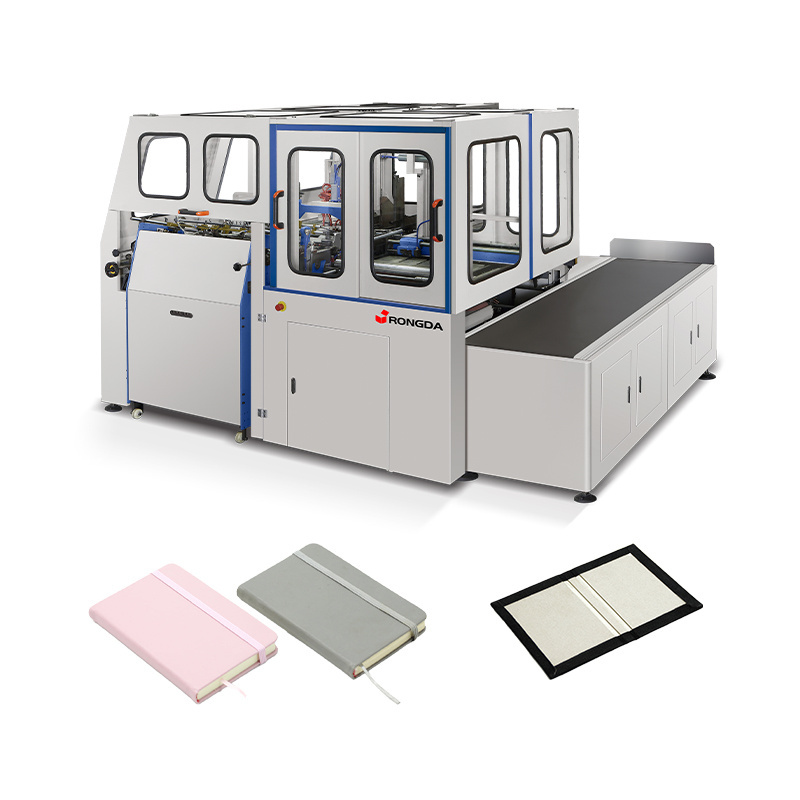

CM680B Case maker
Automatic case maker adopts automatic paper feeding system and automatic cardboard positioning device; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make perfect book covers, notebook covers,calendars, hanging calendars, files etc.
Features:
1. Whole computerized digital function and malfunction display.
2. Automatic gluing, positioningand edges folding.
3. Automatic oil lubrication system
4. Fast mold changing system
5. Intelligent control glue pre-heating device.
6. Number display adjustment setting.
7. Glue recycling device.
8. Board plate mico-adjusting device.
9. Automatic feeder adjusting device.
10. Taiwan BBM motor, IDELY transducer control system.
11. Automatic conveyor and cutting device of soft spine paper.
12. OMRON PLC, conveyor touch screen and transducer control system.
13. Safety covers
14. Moveable cloth feeder device. (Optional)
15. Multi-papers suction feeder device. (Optional)
16. Irregular board size device (Max 7 boards)(Optional)
17. Automatic board feeder device (Optional)
18. Cover comer cutter(Optional)
1. Whole computerized digital function and malfunction display.
2. Automatic gluing, positioningand edges folding.
3. Automatic oil lubrication system
4. Fast mold changing system
5. Intelligent control glue pre-heating device.
6. Number display adjustment setting.
7. Glue recycling device.
8. Board plate mico-adjusting device.
9. Automatic feeder adjusting device.
10. Taiwan BBM motor, IDELY transducer control system.
11. Automatic conveyor and cutting device of soft spine paper.
12. OMRON PLC, conveyor touch screen and transducer control system.
13. Safety covers
14. Moveable cloth feeder device. (Optional)
15. Multi-papers suction feeder device. (Optional)
16. Irregular board size device (Max 7 boards)(Optional)
17. Automatic board feeder device (Optional)
18. Cover comer cutter(Optional)
Specification
|
Case size(L×W)
|
Max.680*400mm
Min.30*60mm |
|
Paper size(A×B)
|
Max. 710*430mm
Min. 100*100mm |
|
Paper thickness
|
80-200g
|
|
Spine size(S)
|
6-100mm
|
|
Spine thickness
|
0.3-5mm
|
|
Cardboard thickness(T)
|
1-5mm
|
|
Folded paper size(R)
|
7-14mm
|
|
Gutter width
|
1-17mm
|
|
Speed
|
10-36pcs/min
|
|
Voltage
|
380V 50Hz 3P
|
|
Power
|
10.4KW
|
|
Machine Weight
|
4500kg
|
|
Machine dimension (L×W×H)
|
3500*3500*2000mm
|
Remark:
1. The Max. and Min. sizes of cases are subjected to the size and the quality of the paper.
2. The speed depends on the size of cases.
3. Air compressor isn’t included.
1. The Max. and Min. sizes of cases are subjected to the size and the quality of the paper.
2. The speed depends on the size of cases.
3. Air compressor isn’t included.
