Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
GRANDFAR
-
Model Number:
-
GHFm5C Version K1
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0.75HP
-
Cable Length:
-
OEM
-
Outlet Size:
-
2"*2"
-
Power:
-
0.55kw
-
Flow rate:
-
417 L/ min ( 25 m³/ h )
-
Head up to:
-
11 m
-
Manometric suction lift:
-
7 m
-
Liquid temperature:
-
+ 40 °C
-
Ambient temperature:
-
+ 40°C
-
size:
-
2"*2"
-
Certification:
-
CB CE IECEE SAA
Quick Details
-
Application:
-
Commercial Buildings, Family Homes, Irrigation and Agriculture, Water Distribution
-
Pressure:
-
High Pressure
-
Voltage:
-
220V/50Hz
-
Warranty:
-
1 year
-
Brand Name:
-
GRANDFAR
-
Model Number:
-
GHFm5C Version K1
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0.75HP
-
Cable Length:
-
OEM
-
Outlet Size:
-
2"*2"
-
Power:
-
0.55kw
-
Flow rate:
-
417 L/ min ( 25 m³/ h )
-
Head up to:
-
11 m
-
Manometric suction lift:
-
7 m
-
Liquid temperature:
-
+ 40 °C
-
Ambient temperature:
-
+ 40°C
-
size:
-
2"*2"
-
Certification:
-
CB CE IECEE SAA
We are a professional factory,we have our own brand GRANDFAR,and we also support OEM/ODM,please feel free to contact us！
|
MODEL NO.
|
GHFM SERIES
|
LOGO/BRAND
|
GRANDFAR or OEM
|
|
COLOR
|
CAN BE CUSTOMIZED
|
CERTIFICATE
|
CE，CB，ISO14001
|
|
POWER UP TO
|
0.55KW-1.5KW
|
PACKING
|
carton，1pcs/ctn
|
|
VOLTAGE
|
220V
|
WARRANTY
|
12 months
|
|
INLET/OUTLET
|
2‘’X2‘’
|
PAYMENT
|
TT,LC,any other payment to support
|
|
MAX FLOW
|
25m³/H
|
DELIVERY TERM
|
30-40days on receipt of the down payment or LC
|
|
CABLE
|
customized
|
LOADING PORT
|
Ningbo,Shanghai or any port in China
|
|
MOQ
|
100
|
TERM
|
Free sample to check the quality for order conformation
|
|
MAX HEAD
|
11m-20m
|
PROTECTION CLASS
|
IP44
|

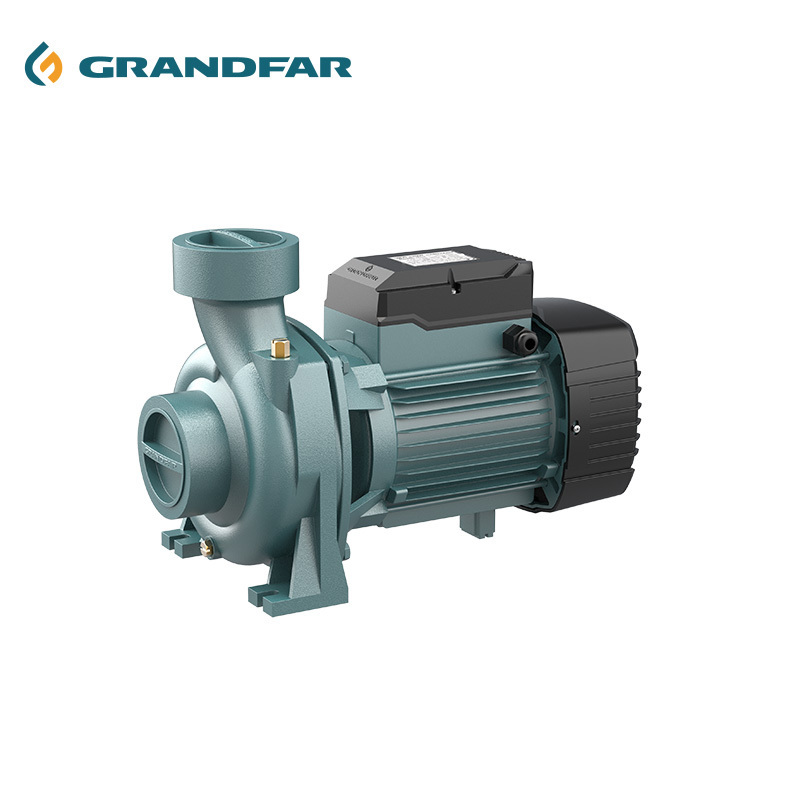

GHFm centrifugal miniature clear water electric pump is mainly composed of three parts: motor, pump and seal. The motor is an asynchronous motor; the pump is equipped with a single end mechanical seal between the motor and the pump, and the "O" shaped oil resistant rubber seal is used for static sealing at the fixed stopper seal.
GHFm centrifugal miniature clear water electric pump is mainly composed of three parts: motor, pump and seal. The motor is an asynchronous motor; the pump is equipped with a single end mechanical seal between the motor and the pump, and the "O" shaped oil resistant rubber seal is used for static sealing at the fixed stopper seal.
