Portable Circular Swing Blade Sawmill For Sale

Portable Circular Swing Blade Sawmill For Sale

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2100

≥10 Pieces

US $1800

≥20 Pieces

US $1700

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 400V

Dimension(L*W*H):: 4064*1778*1800mm

Application:: all workshop for sawing wood

Weight (KG):: 450 KG

Power (kW):: 7.5

Max.Working Width(mm):: 790mm

Marketing Type:: Hot Product 2023

Band Wheel Diameter::: 480mm(18.9")

Max Sawing Wood Diameter::: 790mm(31'')

Max cutting length::: 3000mm or as customer needs

Rail length::: 4000mm or as customer needs

Saw walk forward /back::: Manual

Blade speed:: 17 m / min

Frame:: 4 pieces

Quick Details

Place of Origin:: Shandong, China

Brand Name:: huike

Usage:: precision cut

Voltage:: 400V

Dimension(L*W*H):: 4064*1778*1800mm

Application:: all workshop for sawing wood

Weight (KG):: 450 KG

Power (kW):: 7.5

Max.Working Width(mm):: 790mm

Marketing Type:: Hot Product 2023

Band Wheel Diameter::: 480mm(18.9")

Max Sawing Wood Diameter::: 790mm(31'')

Max cutting length::: 3000mm or as customer needs

Rail length::: 4000mm or as customer needs

Saw walk forward /back::: Manual

Blade speed:: 17 m / min

Frame:: 4 pieces

Products Description

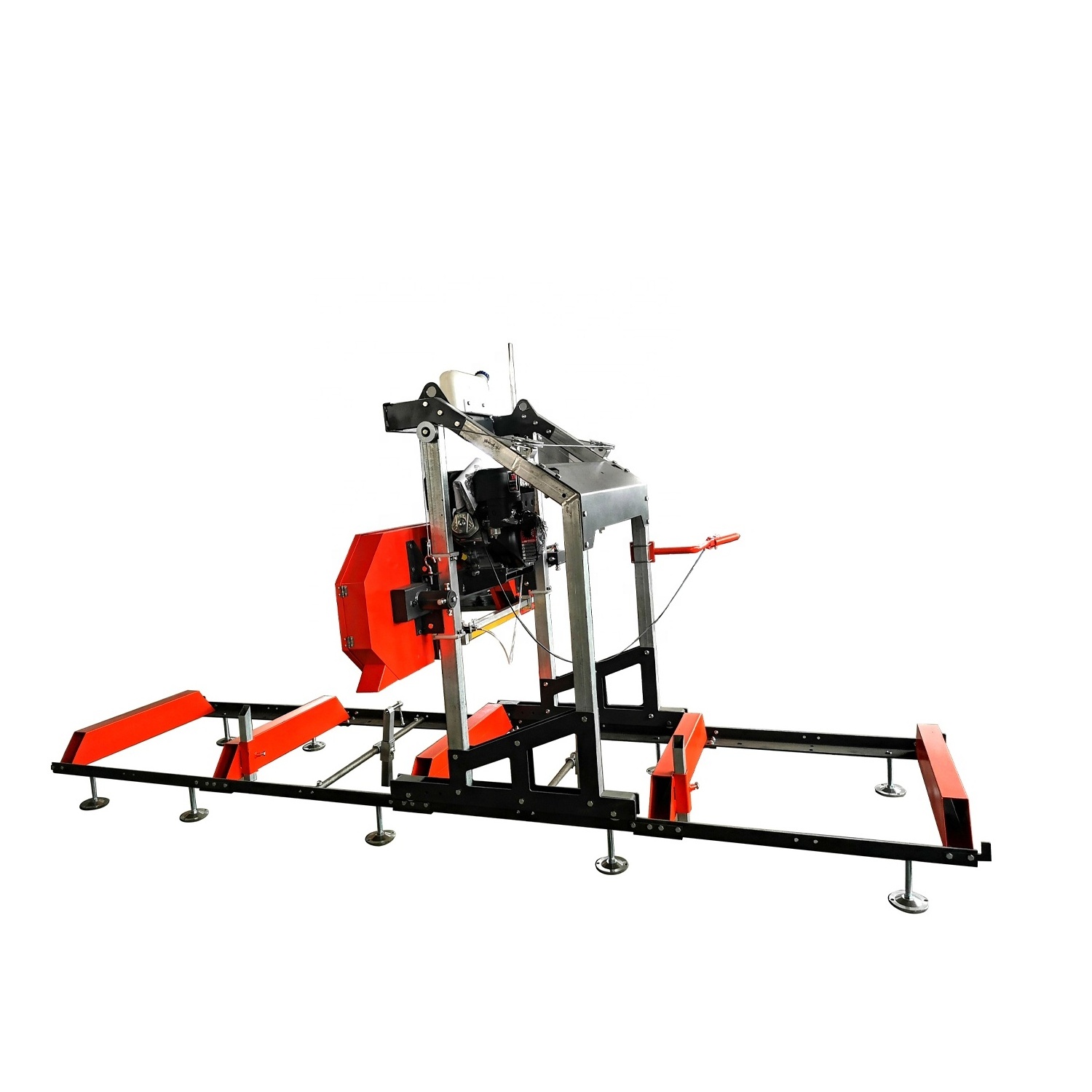

Huike Ultra Portable Sawmill

Huike HKS Series sawmill is Entry-level hobby sawmill and economical bandsaw mill with push feed, 9HP or 15HP gas engine / 5.5KW or 7.5KW electric motor, 26” or 31'' log diameter, and 9.8 ft log length of cut, also can add the extension 2 m rail (no limited quantities) to cut longer logs.

It is designed to the sawyers who want the freedom of sawing their own lumber for projects or profits, widely used in woodworking hobbyists to full-time sawmill operators.

The body of HKS Series sawmill is all parts structures that easy to assemble, cost--effective, sturdy and durable, the saw wheel is high precision castings. The lightweight head and adjustable bed of Huike sawmill provide a variety of woodworking options in different environments, smooth finishing, easy to move around, suitable for the farm owners and DIY woodworking .

It can cut logs and square wood into wood planks, it's easy to operate and low maintenance cost, also can be equipped with a trailer to make it more flexible when moving.

Huike HKS Series Portable Band Sawmill
Model	HKS26G	HKS31G	HKS26E	HKS31E
Power	Gasoline 9HP (LIFAN, Manual start)	Gasoline 15HP (LIFAN, Manual start)	Electric Motor 5.5KW	Electric Motor 7.5KW
Displacement	301cc	420cc	400V 50HZ 3phase	400V 50HZ 3phase
Max cutting diameter	660 mm (26'')	790 mm (31'')	660 mm (26'')	790 mm (31'')
Max finished thickness	178 mm(7'')	178 mm(7'')	178 mm(7'')	178 mm(7'')
Standard cutting length	900 - 2794 mm (35'' - 110'') or customized	900 - 2794 mm (35'' - 110'') or customized	900 - 2794 mm (35'' - 110'') or customized	900 - 2794 mm (35'' - 110'') or customized
Frame	4pcs	4pcs	4pcs	4pcs
Blade size	3690340.9mm (145”1-1/4”0.035”)	3960340.9mm (156”1-1/4”0.035”)	3690340.9 mm (145”1.25”0.035”)	3960340.9mm (156”1-1/4”0.035”)
Safe cutting Speed	13-15s/m	13-15s/m	13-15s/m	13-15s/m
Blade speed	17m/min	17m/min	17m/min	17m/min
Blade Wheel Dia.	480 mm (18.8”)	480 mm (18.8”)	480 mm (18.8”)	480 mm (18.8”)
Dimension	406417781800mm (160”70”71”)	406417781800mm (160”70”71”)	406417781800mm (160”70”71”)	406417781800mm (160”70”71”)
Track size	4000x900mm (157”x35.4”)	4000x1030mm (157”x40.5”)	4000x900mm (157”x35.4”)	4000x1030mm (157”x40.5”)
Packing	2080x570x830mm	2150 x570x830mm	2080x610x810mm	2150 x610x810mm
Weight	415/455kg	415/455kg	452/480kg	452/480kg
20”/40”HC	20pcs / 63pcs	20pcs / 63pcs	20pcs / 63pcs	20pcs / 63pcs

Basic Version

1. Power: 9 or15 HP Lifan gasoline engine Manual start; Electric Motor 5.5KW or 7.5 KW

2. Manual up / down
3. Max Log Diameter: 66cm( 26'' ) or 79cm (31'')
4. Max cutting board thickness: 178 cm
5. Standard Cutting Length: 0.9 - 3 m
6. Track Width: 100 cm
7. Track Length: 4 m
8. Leveling Feet: 12 pcs
9. Log Clamps: 2 pcs
10. Blade Size: 3960*34*0.9mm
11. Water Tank Size: 10 L
12. Coming with normal saw blade

13. Blade tension adjuster

14. Blade guide cover

Optional Accessories

1. Upgrade 14 HP Kohler(13.5 B&S ) Gasoline Engine Manual start

2. Upgrade 14 HP Kohler(13.5 B&S ) Gasoline Engine Electric start
3. Upgrade Lifan gasoline engine E-start
4. Normal Blade

5. Alloy Saw Blade / Carbide Blade
6. Extension 2 m Rail
7. Trailer: 4 m, 6 m, or 8 m trailer
10. 48'' Log Tong

11. Manual Winch
12: Blade sharpener machine
13. Auto lube system

14. Blade setter

Trailer Version Attention

The sawmill also can be removed from trailer for ground level use!

Blade sharpener machine

Blade setter

Main Features

1.Simple installation, easy operation, labor saving , and high productivity.
2. Manual Operating, Simple , safe and pro-environment.

3. The thickness of processing wood can be adjusted according to your requirements, high-precision. 4. High cutting efficiency, smooth; high flatness of the cutting plate; high quality of final
product, great reduce the lost of sawdust.
5. Petrol Engine / Electric Motor power supply.
6. Cutting wood diameter up to 820mm, the max sawing wood length can subject to customer’s requirements.
7. There's no need for the professional sawyers, the ordinary workers can operate the machine expertly.
