- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Duya
-
Model Number:
-
1
-
Color:
-
White, silver, brown, grey, golden oak,
-
Size:
-
Customized Size
-
Material:
-
Painted Steel
-
Certificate:
-
ISO9001 CE
-
Function:
-
Finger Protect
-
Infilling:
-
Polyurethane Foam
-
MOQ:
-
1 Set
-
Packing:
-
Carton
-
Delivery Time:
-
15-35days
Quick Details
-
Door Material:
-
Steel
-
Feature:
-
Thermal Insulation
-
Main Material:
-
Steel
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Duya
-
Model Number:
-
1
-
Color:
-
White, silver, brown, grey, golden oak,
-
Size:
-
Customized Size
-
Material:
-
Painted Steel
-
Certificate:
-
ISO9001 CE
-
Function:
-
Finger Protect
-
Infilling:
-
Polyurethane Foam
-
MOQ:
-
1 Set
-
Packing:
-
Carton
-
Delivery Time:
-
15-35days
Products Description
|
Panel Color
|
Standard: White, Optional: RAL7016 Grey, RAL9017 Black, RAL8017 Brown, RAL9006 Silver, Golden oak wooden color etc.
|
|
Panel Design
|
Finger protection or non finger protection
|
|
Thickness
|
40mm, 50mm
|
|
Density
|
45±2kg/m3
|
|
Max. Length
|
11.8m for 40HQ
|
|
Panel Width
|
Standard:460mm, 500mm, 530mm, 550mm, 610mm
|
|
Surface Treatment
|
Finished
|
|
Surface Embossment
|
Embossed woodgrain, orange peel, smooth
|
|
Warranty
|
3 years
|
|
Certificate
|
ISO9001:2015 CE
|
|
|
1. Water and corrosion resistance, More than 20 years life.
2. Customized size,variety of color options.
3. Suitable for any hole, overhead lift to roof to save space.
4. Good airtightness, quiet operation.Thermal insulation and noise prevention
5. Mutiple Opening methord:Manual opening, electrical with remote control, mobile wifi, wall swith
6. Reliable spring, strong motor, nice roller and well-made guide rail make the door run smoothly
7. Windows and pass door available
|
Product advantages
Details Images
Technical drawing

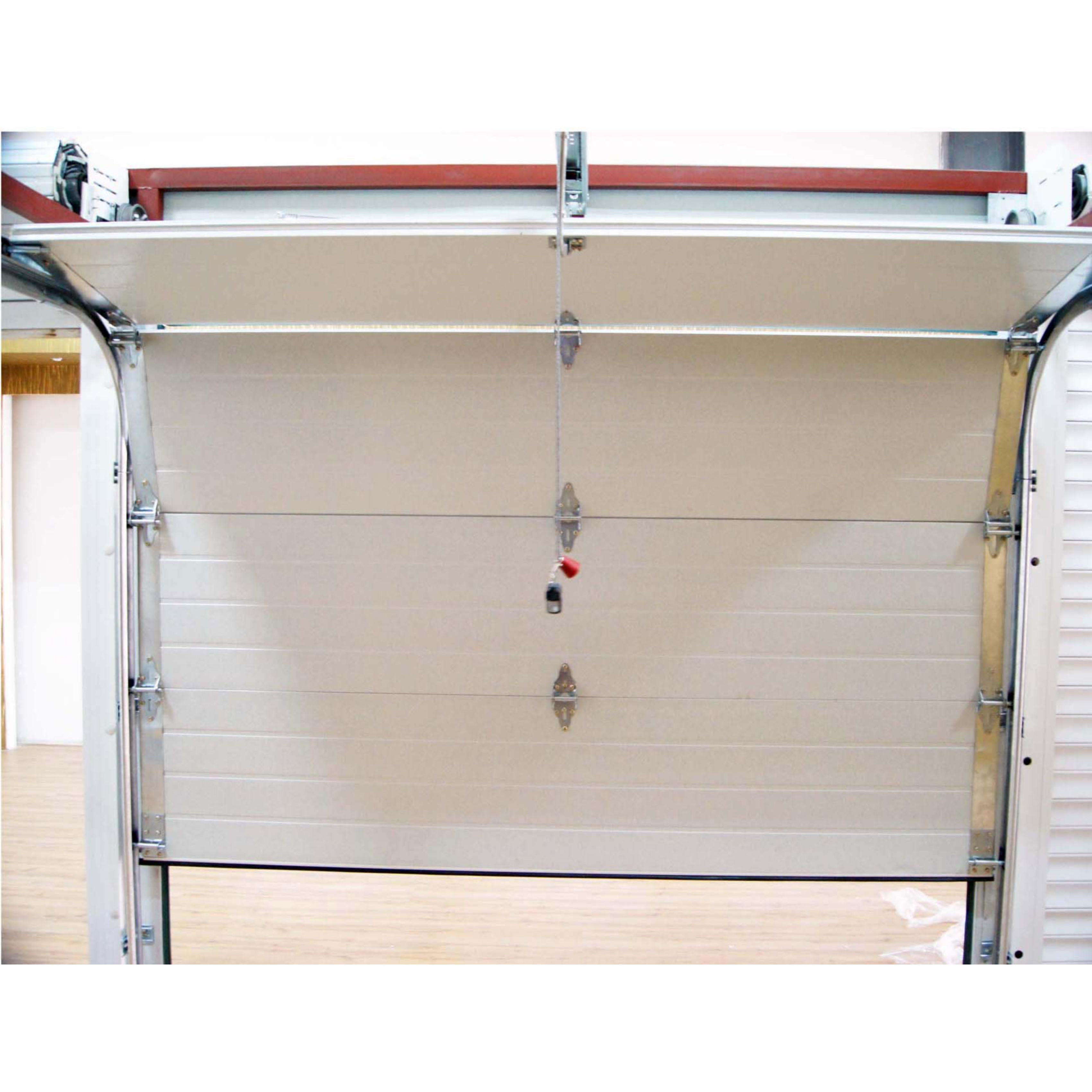

Drawing for Sectional Garage doors
Panels Pattern
40mm Finger Protection Door Panels
Square pattern woodgrain surface finish or Square pattern orange peel surface finish are both available.
40mm thickness, finger protection
50mm Non Finger Protection Thermal Break Door Panel
Non finger protection type, thermal break. 40mm/50mm both available.
Panels Surface Finish
Mirror Finish
Mirror panel is the most high-end and popular style in recent years
Woodgrain Finish
Square style woodgrain
Line style woodgrain
Flat style woodgrain
Orange Peel Finish
Square style orange peel
Line style orange peel
Flat style orange peel
Micrograin Finish
Micrograin style
Micrograin style with woodgrain
Micrograin style with orange peel
Garage Door Parts
Garage Door Small Parts
For non finger protection panels, with No.1,2,3,4 hinges. T
hese parts are packed into carton
Garage Door Small Parts
For finger protection panels, with adjustable hinges, these parts are packed into carton
Tracks
Zinc galvanized tracks, 2", 1.5mm or 2.0mm thickness.
Torsion Springs
Torsion springs standard type is black color, galvanized surface is optional.
Garage Door Motors
German Brand AAVAQ Motor
Famous Brand Made in China
Model：S12，SX12/1000,SX20/1500
Voltage: 230V 50HZ IP40
Max. Speed：140mm/s
Remote distance: 80m
Remote frequency
: 433MHZ
Working tempreture: -35 to 60 ℃
Function: Speed adjutable, soft start and stop, return meet obstacle.
Parts optional: Sensor, battery, wall switch, wireless keypad, Cellphone Wifi.
Model：800N, 1000N, 1200N
Voltage: 230V 50HZ, 110V60HZ
Speed：120mm/s
Remote distance: 60m
Remote frequency: 433MHZ
Working tempreture: -35 to 60 ℃
Function: soft start and stop, return meet obstacle.
Parts optional: Sensor, battery, wall switch, wireless keypad, Cellphone Wifi.
Speed：120mm/s
Remote distance: 60m
Remote frequency: 433MHZ
Working tempreture: -35 to 60 ℃
Function: soft start and stop, return meet obstacle.
Parts optional: Sensor, battery, wall switch, wireless keypad, Cellphone Wifi.
