Quick Details
-
Brand Name:
-
TP ENERGY
-
Model Number:
-
TP300MF
-
Place of Origin:
-
Shenzhen
-
Panel Dimensions:
-
1685*1010*2.4 mm
-
Application:
-
RV, Caravan, Yacht, Boat, Truck, etc
-
Weight:
-
8.5KG
-
Solar cell:
-
Monocrystalline Silicon (6 Inches)
-
Junction Box:
-
IP68 Rated
-
Frame:
-
Frameless
-
Material:
-
High polymer
-
Glass:
-
glass free
-
Feature:
-
Lightweight
-
OEM Order:
-
Acceptable
-
Certificate:
-
CE, IEC, JET, TUV, VDE, PID
Quick Details
-
Type:
-
PERC, All Black, Flexible, BIPV
-
Panel Efficiency:
-
18.6%
-
Warranty:
-
other, 25 years
-
Brand Name:
-
TP ENERGY
-
Model Number:
-
TP300MF
-
Place of Origin:
-
Shenzhen
-
Panel Dimensions:
-
1685*1010*2.4 mm
-
Application:
-
RV, Caravan, Yacht, Boat, Truck, etc
-
Weight:
-
8.5KG
-
Solar cell:
-
Monocrystalline Silicon (6 Inches)
-
Junction Box:
-
IP68 Rated
-
Frame:
-
Frameless
-
Material:
-
High polymer
-
Glass:
-
glass free
-
Feature:
-
Lightweight
-
OEM Order:
-
Acceptable
-
Certificate:
-
CE, IEC, JET, TUV, VDE, PID

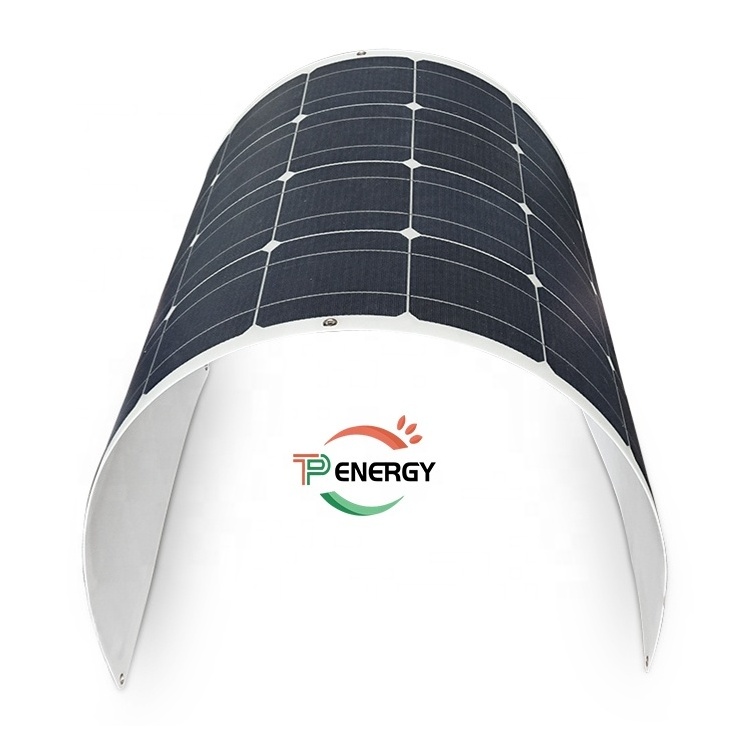

Hot selling 300W mono semi flexible solar panel ETFE car rollable solar photovoltaic panels
High cell efficiency PV solar panel with quality silicon material for long term output stability and reliability.
Rigorous quality control to meet the highest international standards.
High transmittance, low iron tempered glass with enhanced stiffness and impact resistance.
Unique frame design with high mechanical strength for easy installation.
Advanced encapsulation material with multilayer sheet lamination to provide long-life and enhanced cell performance.
Outstanding electrical performance under high temperature and low irradiance conditions.
36 Back-Contact polycrystalline Si solar cells (approx. 18.6 %).
Introduction & details
Product datasheet
|
STC |
TP290MF | TP300MF | |||
| Maximum Power (P max ) | 290 | 300 | |||
| Maximum Power Voltage (V mp ) | 29.7 | 30.0 | |||
| Maximum Power Current (I mp ) | 9.89 | 10.0 | |||
| Open-circuit Voltage (V oc ) | 33.0 | 35.4 | |||
| Short-circuit Current (I sc ) | 10.97 | 11.0 | |||
| Module Efficiency (%) | 16.0 | 16.2 |
STC: Irradiance 1000W/m 2 , Cell temperature 25℃, AM=1.5. Tolerances of P max , V oc and I sc are within ±5%
NMOT: Irradiance 800W/m 2 , Ambient temperature 20℃,AM=1.5, Wind speed 1 m/s.
| Operating Temperature (℃) | -40 ℃ to 85 ℃ | Nominal Module Operating Temperature(NMOT) | 41±2 ℃ |
| Maximum System Voltage | 600 V DC (IEC) | Temperature Coefficient of P max | -0.38 %/℃ |
| Maximum Series Fuse Rating | 20 A | Temperature Coefficient of V oc | -0.28 %/℃ |
| Application Class | Class A | Temperature Coefficient of I sc | 0.020 %/℃ |
| Power Tolerance | 0/+5 W |
