Quick Details
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jocky
-
Model Number:
-
JK-CH1702
-
Dimensions(L*W*H):
-
880x410x930mm
-
Weight:
-
36 KG
-
Platen Size:
-
762x143mm
-
Product name:
-
Magnet Semi-automatic pneumatic heat press machine
-
Model:
-
JK-CH1702
-
Working space:
-
762x143mm
-
Print area size:
-
40x60cm (16''x24'')
-
Time setting range:
-
0-999s
-
Temperature Range:
-
0-300℃/0-482℉
-
Dimension:
-
880x410x930mm
-
Folded Dimension:
-
710x415x470mm
-
Packing size:
-
845x495x625mm
-
Weight(G.W/N.W):
-
52/42kgs
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jocky
-
Model Number:
-
JK-CH1702
-
Dimensions(L*W*H):
-
880x410x930mm
-
Weight:
-
36 KG
-
Platen Size:
-
762x143mm
-
Product name:
-
Magnet Semi-automatic pneumatic heat press machine
-
Model:
-
JK-CH1702
-
Working space:
-
762x143mm
-
Print area size:
-
40x60cm (16''x24'')
-
Time setting range:
-
0-999s
-
Temperature Range:
-
0-300℃/0-482℉
-
Dimension:
-
880x410x930mm
-
Folded Dimension:
-
710x415x470mm
-
Packing size:
-
845x495x625mm
-
Weight(G.W/N.W):
-
52/42kgs
Products Description

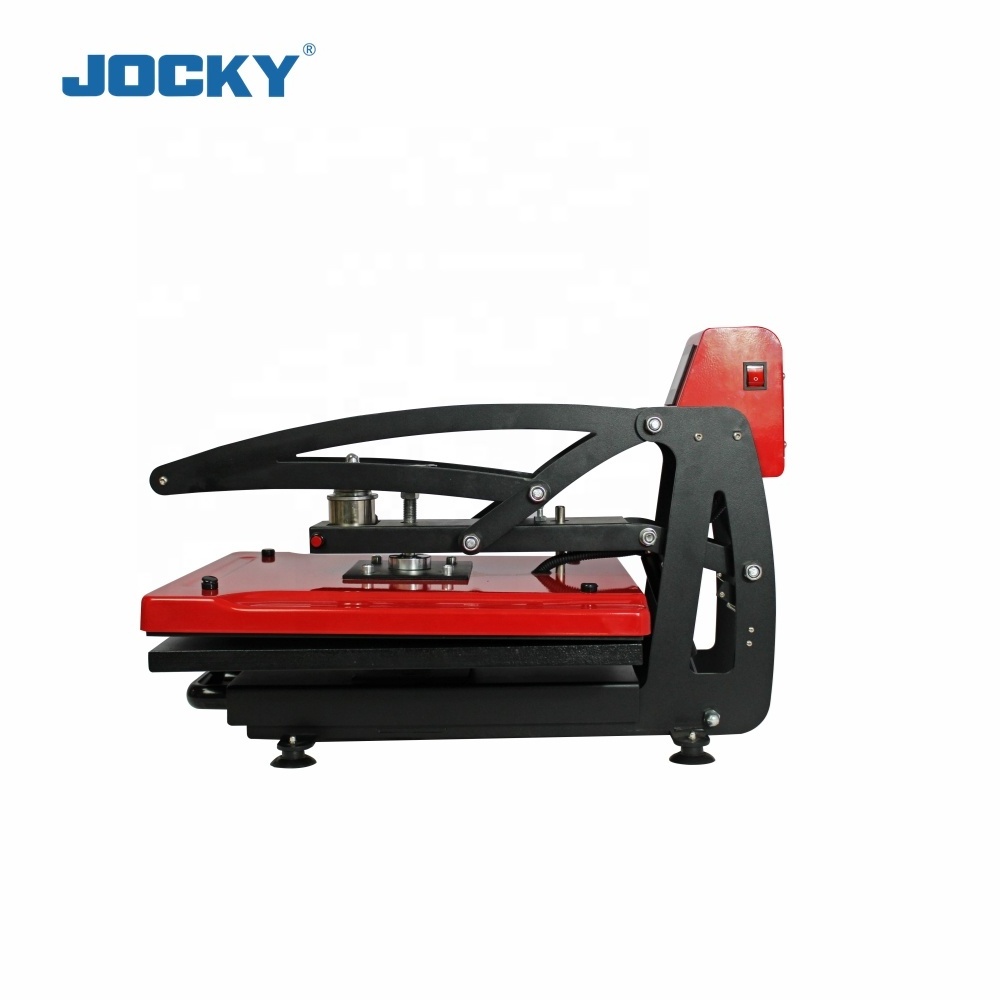

JK-CH1702 Magnet semi-automatic heat press machine
1. Integral moulding cover plate, with rebound of buffer heating plate .
2. Pressure can be adjusted according to the thickness of the transfer material.
3. High-quality electromagnet, smooth surface , stronger suction, good temperature stability and insulation, stronger electrical conductivity, more stable .
4. Thicker stainless steel, thicker bottom platen makes more beautiful image printing.
5. The polygonal handwheel has more friction and easy adjustment .
6. With emergency stop switch.
2. Pressure can be adjusted according to the thickness of the transfer material.
3. High-quality electromagnet, smooth surface , stronger suction, good temperature stability and insulation, stronger electrical conductivity, more stable .
4. Thicker stainless steel, thicker bottom platen makes more beautiful image printing.
5. The polygonal handwheel has more friction and easy adjustment .
6. With emergency stop switch.
Specification
|
Model
|
JK-CH1702
|
|
Power
|
2200W (220V ) 1600W (110V )
|
|
Voltage
|
220V / 110V
|
|
Print area size
|
40x60cm (16’’x24’’)
|
|
Time setting range
|
0-999s
|
|
Temperature setting
|
0-300℃/0-482℉
|
|
Dimension
|
880x410x930mm
|
|
Folded Dimension
|
710x415x470mm
|
|
Working area
|
762x143mm
|
|
Packing size
|
845x495x625mm
|
|
Weight(G.W/N.W)
|
52/42kgs
|
