Quick Details
-
Brand Name:
-
ZONHOW
-
Model Number:
-
DZ-606
-
Friction Stroke:
-
60mm
-
Display:
-
LED
-
Specimen Size:
-
60*220mm
-
Speed:
-
(21/43/85/106)r/min (adjustable)
-
Load:
-
21b/41b
-
Friction Area:
-
50*156mm
-
Size:
-
263*230*350mm
-
Weight:
-
15kg
Quick Details
-
Warranty:
-
1 year, 12 months
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONHOW
-
Model Number:
-
DZ-606
-
Friction Stroke:
-
60mm
-
Display:
-
LED
-
Specimen Size:
-
60*220mm
-
Speed:
-
(21/43/85/106)r/min (adjustable)
-
Load:
-
21b/41b
-
Friction Area:
-
50*156mm
-
Size:
-
263*230*350mm
-
Weight:
-
15kg

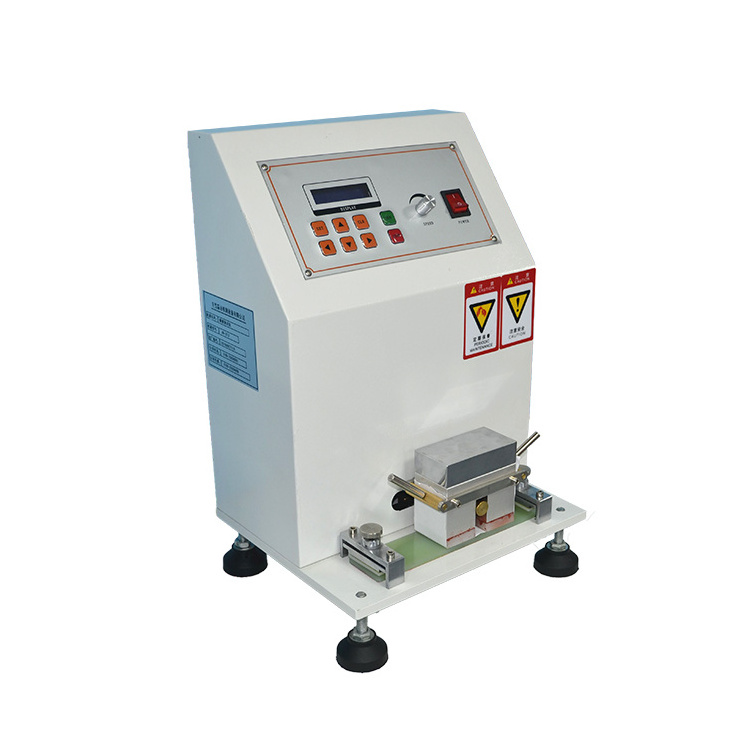

Sutherland Ink Rub Tester, Ink Discoloration Testing Machine
Application -- Sutherland Ink Rub Tester, Ink Discoloration Testing Machine
This machine is mainly used for testing the abrasion performance of printed matter printing ink, use authorise pressure, reciprocating friction travel and speed to friction surface of sample. To confirm the class of pollution of sample and standard friction paper, and test the fluff or abrasion of the sample surface.
Principle -- Sutherland Ink Rub Tester, Ink Discoloration Testing Machine
To be grinding the sample layer and the friction paper, load the friction body, rubbing against each other at the prescribed speed, through the wear layer density before and after the measurement of friction before and after grinding layer or coating thickness variation to determine the wear layer or coating wear resistance.
Specifcations -- Sutherland Ink Rub Tester, Ink Discoloration Testing Machine
|
Operating Method |
Microcomputer Control |
|
Display |
LCD |
|
Specimen Size |
Minimum Size: 230*50 mm |
|
Friction Speed |
43 times/min ( 21,43,85, 106 times/min, adjustable) |
|
Friction Load |
908g ( 2LB), 1810g (4 LB) |
|
Friction Stroke |
60 mm |
|
Friction Area |
50*100 mm |
|
Frequency setting |
0~9999 times, auto-shutdown |
|
Weight |
Approx 35 Kg |
|
Power |
AC220V, 50/60Hz |
Features --Sutherland Ink Rub Tester, Ink Discoloration Testing Machine
1. Specific power memory function, provides users with a secure operating environment
2. The embedded standard friction table to ensure a uniform area of friction, and the friction process is quiet
3. User can set the number of friction, easy to accurately test
4. The number of swings automatic counting
5. Standard: GB/T7706,GB7707,JIS K5701,ASTM D5264
