Quick Details
-
Rated power:
-
3.3(kw)
-
Paving thickness:
-
200(mm)
-
Roller diameter:
-
3000(mm)
-
Paving width:
-
2500(mm)
-
Engine model:
-
Honda
-
Rated speed:
-
4000(rpm)
-
Paving speed:
-
4(m/min)
-
Machine size:
-
3220*2780*1172mm
-
Machine weight:
-
280KG
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Hengwang
-
Model:
-
DZ25-2
-
Rated power:
-
3.3(kw)
-
Paving thickness:
-
200(mm)
-
Roller diameter:
-
3000(mm)
-
Paving width:
-
2500(mm)
-
Engine model:
-
Honda
-
Rated speed:
-
4000(rpm)
-
Paving speed:
-
4(m/min)
-
Machine size:
-
3220*2780*1172mm
-
Machine weight:
-
280KG
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
None
Product Description

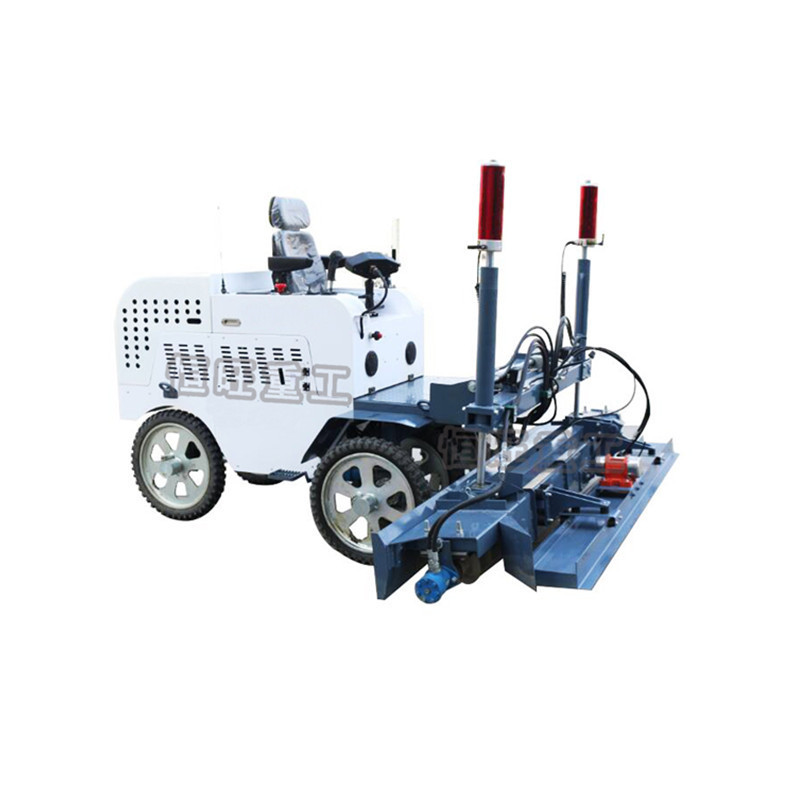

concrete leveling machine concrete laser screed machine Concrete level screed
Our Advantages
The laser leveler uses scraper to take the raised concrete away and initially scrape it to reach the required elevation. The hydraulically driven vibration motor generates vibration, driving the entire vibration plate to vibrate the concrete together. The laser paver does not need to pull the control line or support the side template to control the ground elevation. It is controlled by the laser measurement and control system on the laser leveler in real time, as long as the laser emitter is not disturbed, regardless of Wherever possible, it can be ensured that the overall elevation of the paved ground is not affected
.
Size Information
Technical parameter table of
concrete leveling machine concrete laser screed machine Concrete level screed
|
Type
|
Mechanical electric walk-behind
|
|
|
|
Power configuration
|
Model
|
Honda engine
|
|
|
|
Power
|
3.3kw
|
|
|
|
Fuel volume
|
18L (10 hours of construction work)
|
|
|
|
Fuel consumption
|
1.2-1.4 L/h
|
|
|
Laser system
|
Laser control system
|
American Danfoss laser control system
|
|
|
|
Laser emitter
|
American Trimble emitter
|
|
|
|
Laser receiver
|
Swiss Leica receiver
|
|
|
|
Laser system control effect
|
Plane, slope or double slope (3D)
|
|
|
|
Laser system control method
|
Laser micro-system automatic control to achieve automatic leveling
|
|
|
Leveling system
|
Suspension
|
Leveling head independent suspension system (maintain the balance of the fuselage in complex industrial and mining)
|
|
|
|
Vibration plate width
|
2500mm
|
|
|
|
Leveling thickness
|
0-200mm
|
|
|
|
Exciting force
|
2000N
|
|
|
|
Vibration motor speed
|
4000rpm
|
|
|
Walking system
|
Walking drive
|
Japan Mitsubishi servo drive motor
|
|
|
|
Walking style
|
Manual adjustment, infinitely variable speed
|
|
|
|
Walking speed
|
0-20m/min
|
|
|
|
Working speed
|
4m/min (Adjustable speed)
|
|
|
|
Tail wheel control method
|
Manual lift
|
|
|
|
Walking tire
|
Solid anti-skid anti-stab tire (narrow tire + wide tire)
|
|
|
Dimensions and weight
|
Machine Dimensions
|
3220*2780*1172mm
|
|
|
|
Machine weight
|
280KG
|
|
