Quick Details
-
Product Name:
-
Mini Zigbee Human light & PIR Sensor
-
APP:
-
Smart life App/tuya
-
Customized support:
-
logo, packaging
-
Product material:
-
ABS
-
Connect:
-
2.4GWiFi / Zigbee
-
Detection Angle::
-
120°
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
jhy
-
Model Number:
-
ZG-204ZL2
-
Product Name:
-
Mini Zigbee Human light & PIR Sensor
-
APP:
-
Smart life App/tuya
-
Customized support:
-
logo, packaging
-
Product material:
-
ABS
-
Connect:
-
2.4GWiFi / Zigbee
-
Detection Angle::
-
120°
Product Description
Product descriptions from the supplier
Network: ZigBee / Wifi.
Celling mount sensor input: 80-240VAC.
Wall mount sensor input: USB 5V.
Working temperature: -20℃~+70℃
Sensitivity: 1-9(default 7)
Wall mount sensor sensing distance: 0.3-9m(Default 6m).
Celling mount sensor sensing radius: 0-7m(Default 5m).
Illuminance Sensor: 0-2000 LUX.
Target detection confirmation time:0-10s
Target disappearance delay time:2-1500s.
Celling Mount Size: :Φ61*H39 mm
Celling Mount Opening Size: 53-58mm
Wall Mount Size: 58mm*58mm*11mm
1.Functional ZigBee / wifi Smart Human Presence Sensor
Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence
of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.
2. Perceived Light Intensity for Smart&Scene Linkage
Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices,especially your
house lights to ON/OFF automatically as the brightness changes;Besides,you can intelligently linkage the sensor to other smart
home devices for home automation.
3.Two Models Are Available

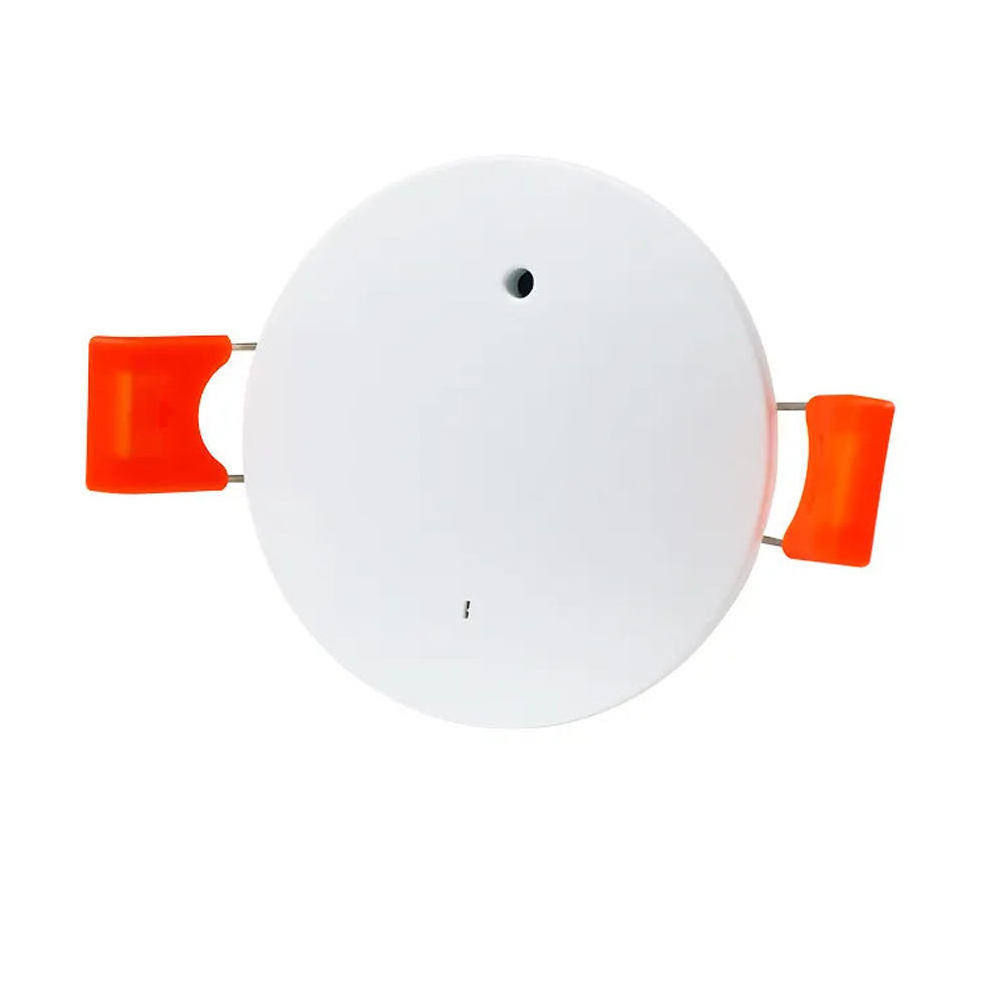

The ceiling mount can be installed like a downlight, which can be powered directly by AC; the wall mount can be attached to the
wall or wherever you need it. It's as light as a wireless hub, and it's powered by USB 5V.
4. Advanced New Design with Multiple Settings
Set the sensitivity from 1-9 to your own need,together with minimum detect range as 0.00m and maximum as 9.5m for flexible
detection demand.Meanwhile,it is designed with hold time set as 0-1500s and detection latency set as 0-10s to avoid irrelevant
annoying movement and reduce false alarm rate.
5. ZigBee Hub as Control Center
Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart
devices with extremely stable signal and a really good necessity for whole-house intelligence.(note:Tuya ZigBee hub is highly
recommended for its wider compatibility than other hubs)
ZIgbee gateway : usb powered
Network: ZigBee / Wifi.
Celling mount sensor input: 80-240VAC.
Wall mount sensor input: USB 5V.
Working temperature: -20℃~+70℃
Sensitivity: 1-9(default 7)
Wall mount sensor sensing distance: 0.3-9m(Default 6m).
Celling mount sensor sensing radius: 0-7m(Default 5m).
Illuminance Sensor: 0-2000 LUX.
Target detection confirmation time:0-10s
Target disappearance delay time:2-1500s.
Celling Mount Size: :Φ61*H39 mm
Celling Mount Opening Size: 53-58mm
Wall Mount Size: 58mm*58mm*11mm
1.Functional ZigBee / wifi Smart Human Presence Sensor
Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence
of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.
2. Perceived Light Intensity for Smart&Scene Linkage
Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices,especially your
house lights to ON/OFF automatically as the brightness changes;Besides,you can intelligently linkage the sensor to other smart
home devices for home automation.
3.Two Models Are Available
The ceiling mount can be installed like a downlight, which can be powered directly by AC; the wall mount can be attached to the
wall or wherever you need it. It's as light as a wireless hub, and it's powered by USB 5V.
4. Advanced New Design with Multiple Settings
Set the sensitivity from 1-9 to your own need,together with minimum detect range as 0.00m and maximum as 9.5m for flexible
detection demand.Meanwhile,it is designed with hold time set as 0-1500s and detection latency set as 0-10s to avoid irrelevant
annoying movement and reduce false alarm rate.
5. ZigBee Hub as Control Center
Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart
devices with extremely stable signal and a really good necessity for whole-house intelligence.(note:Tuya ZigBee hub is highly
recommended for its wider compatibility than other hubs)
ZIgbee gateway : usb powered
|
Product name:
|
ZIGBEE PIR Sensor
|
|
|
|
|
Detection Agle
|
150°
|
|
|
|
|
Standby Time
|
24 Months
|
|
|
|
|
Battery
|
usb powered
|
|
|
|
|
Wireless Type
|
2.4GHz ZIGBEE
|
|
|
|
|
Standby current
|
≤5uA
|
|
|
|
|
Protocol
|
ZIGBEE 802.15.4
|
|
|
|
|
Material
|
ABS
|
|
|
|
|
Operating Temperature
|
-10℃~ 50℃
|
|
|
|
