Quick Details
-
Brand Name:
-
SZFAST
-
Model Number:
-
FS-2P
-
Operating Temperature:
-
85
-
Operating Temperature::
-
85
-
Max Volume::
-
30 L/MIN
-
Max Contact Rating::
-
10w/70w
-
Max Switching Current::
-
0.5A
-
Max Pressure::
-
1 Mpa
-
Max Switching Voltage::
-
24V to 140V
-
Max contact Resistant::
-
200 mOhm
-
Wire::
-
1007-AWG24
-
Color:
-
Black and white
-
Warrenty:
-
One Year
-
Certification:
-
PE
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
30L/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZFAST
-
Model Number:
-
FS-2P
-
Operating Temperature:
-
85
-
Operating Temperature::
-
85
-
Max Volume::
-
30 L/MIN
-
Max Contact Rating::
-
10w/70w
-
Max Switching Current::
-
0.5A
-
Max Pressure::
-
1 Mpa
-
Max Switching Voltage::
-
24V to 140V
-
Max contact Resistant::
-
200 mOhm
-
Wire::
-
1007-AWG24
-
Color:
-
Black and white
-
Warrenty:
-
One Year
-
Certification:
-
PE
Product Description
Specification
|
item
|
value
|
|
Certification
|
PE
|
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
SZFAST
|
|
Model Number
|
FS-2P
|
|
Media Type
|
Liquid
|
|
Operating Temperature
|
85
|
|
Flow Rate
|
30L/min
|
|
Operating Temperature:
|
85
|
|
Max Volume:
|
30 L/MIN
|
|
Max Contact Rating:
|
10w/70w
|
|
Max Switching Current:
|
0.5A
|
|
Max Pressure:
|
1 Mpa
|
|
Max Switching Voltage:
|
24V to 140V
|
|
Max contact Resistant:
|
200 mOhm
|
|
Wire:
|
1007-AWG24
|
|
Color
|
Black and white
|
|
Warrenty
|
One Year
|
Product Description
|
Product Name
|

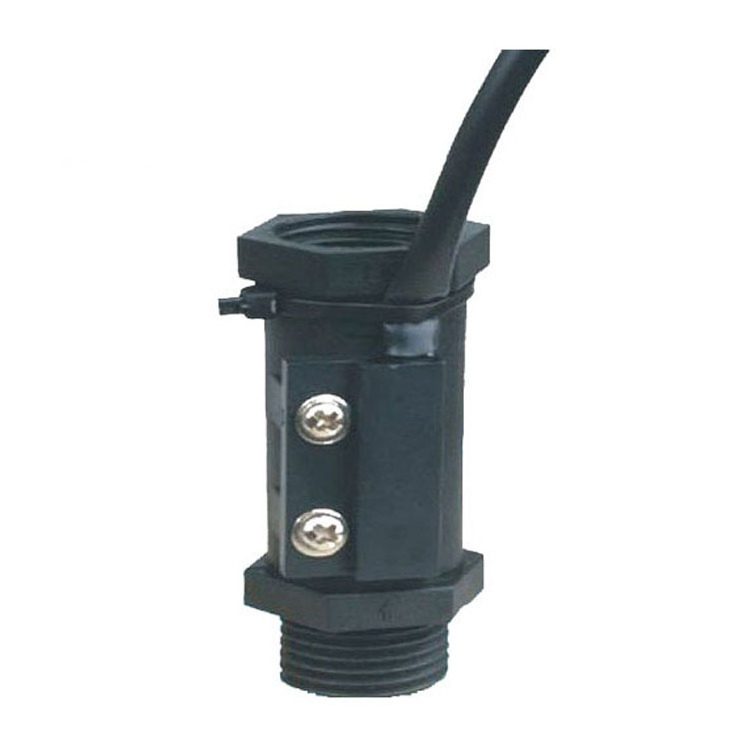

water flow sensor
|
|
Application
|
chillers,water heater and other circulating water system.
|
|
Material
|
Nylon,Stainless Steel,Brass
|
|
Flow range
|
2-30L/min
0.3-5L/min
|
|
Electrical Data
|
4-24 VDC
|
|
Max pressure
|
1 MPa ~ 2MPa
|
|
Cable type
|
UL1007-AWG24
|
|
Output
|
red wire connect to "+", black wire connect to "-", yellow wire is pulse signal output.
|
|
Connection size
|
1/4'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''.
|
|
Sensor
|
Hall sensor
|
