Quick Details
-
Appearance:
-
transparent solid silicone rubber
-
Curing conditions:
-
Molding vulcanization: 5'/116°C; Secondary vulcanization: 4 h/200°C
-
Gravity,g/cm³:
-
1.15±0.03
-
Hardness,ShoreA:
-
50±2
-
Tensile Strength,MPa:
-
9
-
Elongation at break,%:
-
620
-
Tear Strength,N/mm:
-
25
-
Linear shrinkage,%:
-
3.1~3.7
-
Plasticity,mmX100:
-
190~230
-
Certificate:
-
RoHS.MSDS.
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MC silicone
-
Model Number:
-
MC-9150
-
Appearance:
-
transparent solid silicone rubber
-
Curing conditions:
-
Molding vulcanization: 5'/116°C; Secondary vulcanization: 4 h/200°C
-
Gravity,g/cm³:
-
1.15±0.03
-
Hardness,ShoreA:
-
50±2
-
Tensile Strength,MPa:
-
9
-
Elongation at break,%:
-
620
-
Tear Strength,N/mm:
-
25
-
Linear shrinkage,%:
-
3.1~3.7
-
Plasticity,mmX100:
-
190~230
-
Certificate:
-
RoHS.MSDS.

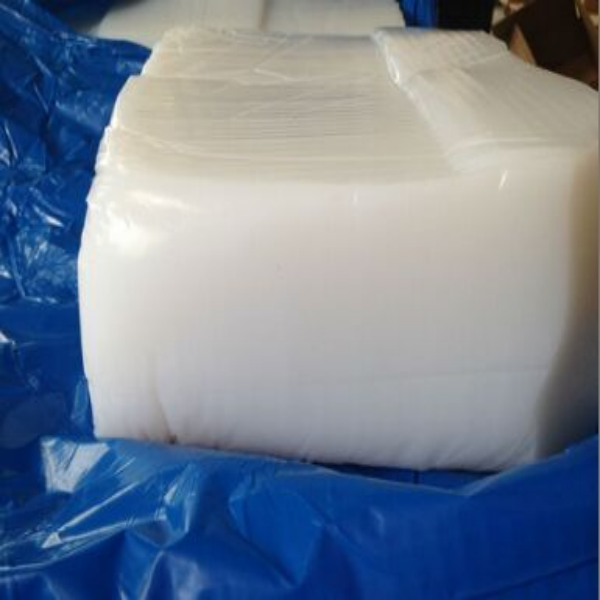

HTV Silicone Rubber
Description
transparent fumed grade platinum HTV solid silicone rubber compound is a rubber elastomer made by mixing raw silicone rubber and high-purity silica as the main ingredients according to the formula. It must be uniformly mixed with a vulcanizing agent before it can be molded at high temperatures, known as HTV silicone rubber, it has a wide range of applications in industries such as electric power, electrical, electronics, machinery, automobiles, food equipment, household goods, and leisure products.
FEATURES
l Strong tear resistance
l Efficient resilience and processing performance
l Suitable for compression molding
l Meets ROHS and environmental
APPLICATIONS
transparent fumed grade platinum HTV solid silicone rubber is mainly u sed for remote control silicone buttons, cake pans, swimming caps, common button kitchenware, sealing ring 0-ring electronic cigarette case silicone products, can be customized on demand
Physical Properties
|
Item No. |
MC- 9 130 |
MC- 9 140 |
MC- 9 150 |
MC- 9 160 |
MC- 9 170 |
MC- 9 180 |
|
Appearance |
Trans parent solid, no obvious mechanical impurities |
|||||
|
Curing conditions |
Molding vulcanization: 5'/116°C; Secondary vulcanization: 4 h/200°C |
|||||
|
Gravity,g/cm³ |
1. 10 ±0.03 |
1.12±0.03 |
1.15±0.03 |
1.1 7 ±0.03 |
1. 19 ±0.03 |
1.2 2 ±0.03 |
|
Hardness,ShoreA |
30±2 |
40±2 |
50±2 |
60±2 |
70±2 |
80±2 |
|
Tensile Strength,MPa |
7.5 |
8 .5 |
9 |
8 .5 |
8.5 |
8 |
|
Elongation at break,% |
72 0 |
72 0 |
62 0 |
400 |
32 0 |
1 6 0 |
|
Tear Strength,N/mm |
1 5 |
2 0 |
25 |
3 0 |
25 |
15 |
|
Linear shrinkage,% |
3. 5 ~4.1 |
3.3~3.9 |
3.1~3.7 |
2.9~3.5 |
2.8~3.4 |
2.7~3.3 |
|
Plasticity,mmX100 |
1 50 ~1 9 0 |
1 70 ~ 210 |
19 0~230 |
23 0 ~2 70 |
2 7 0~3 1 0 |
3 20 ~3 80 |
Pack age: 20kg / carton, 1 ton per pallet.
