Quick Details
-
Purify Efficiency:
-
95%
-
Weight (KG):
-
104 kg
-
Product name:
-
Electrostatic air purifier
-
Air volume:
-
8000m3/h
-
Emissions Way:
-
Low altitude
-
Size (L*W*H)mm:
-
823*862*702
-
Flange size:
-
584*463
-
Electric field QTY:
-
2
-
High voltage power QTY:
-
1
-
Power rating(W):
-
300w
-
Material:
-
Carbon Steel
-
Electric field material:
-
Anti-corrosion Aluminum Alloy Sheet
Quick Details
-
Core Components:
-
electrostatic
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
juwei
-
Purify Efficiency:
-
95%
-
Weight (KG):
-
104 kg
-
Product name:
-
Electrostatic air purifier
-
Air volume:
-
8000m3/h
-
Emissions Way:
-
Low altitude
-
Size (L*W*H)mm:
-
823*862*702
-
Flange size:
-
584*463
-
Electric field QTY:
-
2
-
High voltage power QTY:
-
1
-
Power rating(W):
-
300w
-
Material:
-
Carbon Steel
-
Electric field material:
-
Anti-corrosion Aluminum Alloy Sheet
Product description

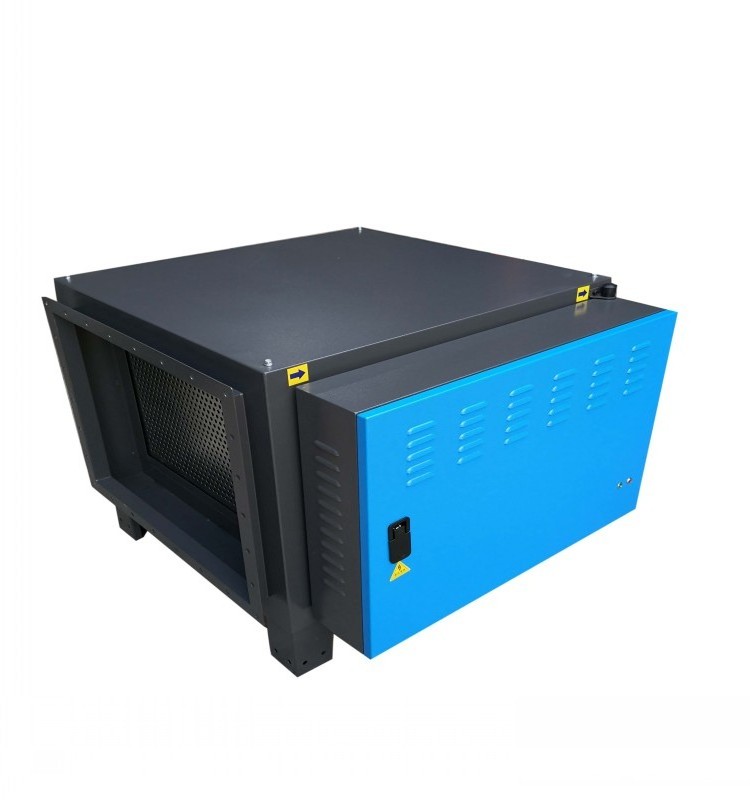

Electrostatic precipitator
China juwei electrostatic precipitator is a filtration device that removes fine particles such as oil, fume, lampblack, dust and smoke,which caused by cooking & grilling & lasering & hot-heating...etc. Using the force of high voltage electric field, charged the particles to positive and negative potential, then they will be collected by the negative/positive collectors, turn dirty air into clean air. After tested, our machine can take away up to 98% of particles.
The dual-band UV photolysis matrix can effectively degrade the passing odor gas, remove the odor, and the structure of the patch type is convenient for maintenance and cleaning
Details Images
High-voltage
Voltage is an important element, it should be as high as possible. To ensure the maximum particle ionisation and capture
efficiency, both of our ioniser and collector cell use very high voltage.
efficiency, both of our ioniser and collector cell use very high voltage.
Maximum ionised grease and smoke particles as they travel over ionising electrodes, so they can be trapped when travel through the
parallel plates of the collector cell.
parallel plates of the collector cell.
There's a cooling fan below the control box, which to cool down temperature, avoid breakdown.
The inlet and outlet are covered with honeycomb mesh to prevent foreign bodies from entering, and the purification effect is more obvious
Compare
Plate structure purifier
1. The collection section consists of many parallel plates, resistant to dirt and easy to clean
2.small size,save cost
3.low power consumption,power saving
3.low power consumption,power saving
Honeycomb structure purifier
1. Easy to accumulate oil, high maintenance costs
2. large in size, Additional logistics costs, freight charges and so on
3. more power consumption
3. more power consumption
Size information
