Quick Details
-
Weight (KG):
-
0.5 KG
-
Product name:
-

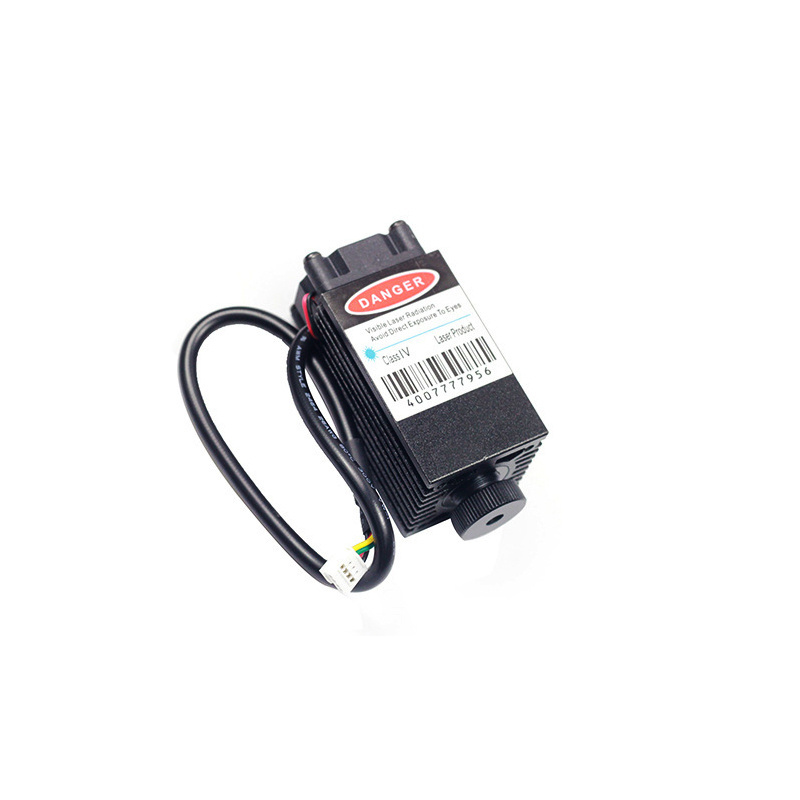

450nm Adjustable Focal Laser Engraving Head
-
Laser Wavelength:
-
450nm
-
Laser Power:
-
1.6W
-
Lightspot Size:
-
Adjustable
-
Operating Current:
-
750-850mA
-
Operating Voltage:
-
12V
-
Size:
-
33*33*55mw
-
Wire Rod:
-
24# 4P2.0mm Terminal Wire 270mm
-
Circuit Board Size:
-
25*17mm
-
Product Material:
-
Aluminum 6061
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
Adjustable Focus Engraving Laser Module
-
Brand Name:
-
XinLand
-
Weight (KG):
-
0.5 KG
-
Product name:
-
450nm Adjustable Focal Laser Engraving Head
-
Laser Wavelength:
-
450nm
-
Laser Power:
-
1.6W
-
Lightspot Size:
-
Adjustable
-
Operating Current:
-
750-850mA
-
Operating Voltage:
-
12V
-
Size:
-
33*33*55mw
-
Wire Rod:
-
24# 4P2.0mm Terminal Wire 270mm
-
Circuit Board Size:
-
25*17mm
-
Product Material:
-
Aluminum 6061
Products Description
The laser adopts the original imported diode, which is small in size, clear in light, large in beam angle and high in straightness. The focal length can be fixed and the thickness of the light can be adjusted. Customers can adjust the focal length according to various requirements
The size of the laser is 55*33*33mm. Stable performance, good consistency and long service life. The tail of the product is connected with a special plug wire.
The heat sink has strong heat dissipation performance, which can effectively ensure the stability and service life of the product. The interior of the product is assembled with pure copper. The laser diode can be cooled quickly.
Specification
|
External Dimensions
|
55* 33* 33mm
|
|
Laser Wavelength
|
450±10nm
|
|
Output Power
|
1.6W
|
|
Operating Voltage
|
12V
|
|
Operating Current
|
750-850mA
|
|
Storage Temperature
|
-40℃~85℃
|
|
Operating Temperature
|
-20℃~70℃
|
|
Spot Pattern
|
Dotted
|
|
Modulating System
|
PWM
|
|
Product Weight
|
109g
|
|
Spot Size
|
Adjustable
|
|
Working Time
|
10000H
|
|
Fan
|
12V
|
|
Product Material
|
Aluminum 6061
|
Engraving Laser Module Can be Customized
For different customer needs, and want to match with their own engraving machine. The color, structure size, and spot size of our engraving laser modules can be customized.
Application
Can engrave the following materials: two-color plate, bamboo wood, leather, rubber plate, stone, artificial stone PVC plate, wood products, metal plate, crystal, Corian, paper, alumina, resin, spray metal.
