Quick Details
-
Brand Name:
-
Thingsend
-
Model Number:
-
XZ-DS04-WT
-
Product name:
-
Wireless Soil Moisture Temperature Sensor
-
Wireless type:
-
lora sensor
-
Power supply:
-
ER26500 3.6V Li-SOCI2 battery
-
Battery life:
-
1year@8700mAH
-
Battery:
-
included and replaceable
-
Wireless Distance:
-
5km (Line of Sight)
-
Transmission interval:
-
30mins default, 1~240mins settable
-
Working frequency:
-
480mhz(868/920/433mhz customized)
Quick Details
-
Type:
-
Capacitive Hygrometer, Soil sensor
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Thingsend
-
Model Number:
-
XZ-DS04-WT
-
Product name:
-
Wireless Soil Moisture Temperature Sensor
-
Wireless type:
-
lora sensor
-
Power supply:
-
ER26500 3.6V Li-SOCI2 battery
-
Battery life:
-
1year@8700mAH
-
Battery:
-
included and replaceable
-
Wireless Distance:
-
5km (Line of Sight)
-
Transmission interval:
-
30mins default, 1~240mins settable
-
Working frequency:
-
480mhz(868/920/433mhz customized)
Product Description
Product Introduction

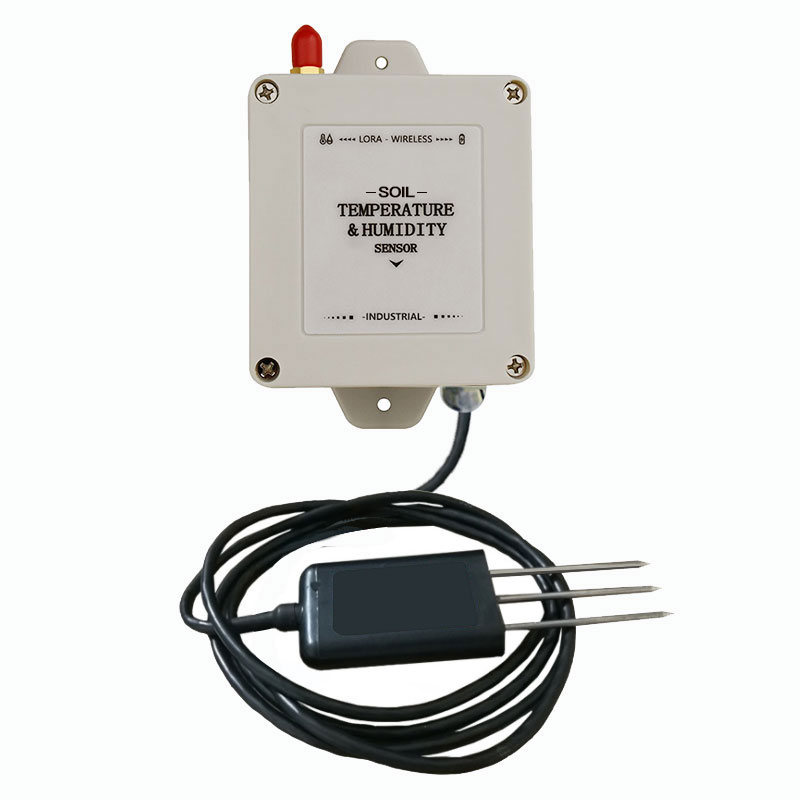

XZ-DS04-WTlora wireless soil moisture sensor is one of our lora wireless measuring instrument.It consists of soil temperature and humidity sensor, signal processing circuit, lora communication module and battery.Working with our wireless gateway can realize remote temperature and humidity data acquisition. Wireless gateway sends data to a third party data acquisition equipment by using USB serial/Network/4G/RS485 Modbus way.We provide free software and cloud server for remote monitoring.
Product Features
♦ Wireless transmission free wiring
♦ Built-in high power Li-SOCI2 battery
♦ Built-in high power Li-SOCI2 battery
♦
Long
distance lora
wireless transmission
♦ Easy to install and easy to use
♦ Superior performance and long-term stability
♦ Easy to install and easy to use
♦ Superior performance and long-term stability
Product Parameters
|
General Parameters
|
|
|
|
Transmitting Power:<1 7dBm
|
Receiving Current:< 20mA
|
|
|
Sensitivity:< -136dBm
|
Average power consumption:< 15uA
|
|
|
Transmitting Current :<1 20mA
|
Battery Life:1year@8700mAH
|
|
|
Transmission Distance: >5KM(L OS)
|
Power supply:1pc ER26500 3.6V (Li- -SOCI2) battery (replaceable and included)
|
|
|
Operating Temperature:-30°C~80°C
|
Working Frequency:476.505 & 488.505MHz (frequency can be customized)
|
|
|
Sensor Parameters
|
|
|
|
Temperature Range:-30°C~80°C
|
Humidity Range:0-100%RH
|
|
|
Temperature Accuracy:<±1℃
|
Humidity Accuracy:<
±
5%
|
|
|
Transmission Interval:30mins default, 1 ~ 240mins settable by user
|
|
|
Software &Cloud Server for Remote Monitoring
We provide free software and cloud server for remote monitoring,and we can also provide protocols for customers to build their own platform.
Gateway Choice
Our lora sensors can only work with our lora gateway,please click following pictures to learn more information about our lora gateway.
Modbus gateway can work with at most 30pcs sensors,other
gateway can work with more than 100pcs sensors.
