Quick Details
-
Application:
-
Office Building
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Simple
-
Model Number:
-
XP
-
Rated Torque:
-
8N.m-50N.m
-
Rated Voltage:
-
230V
-
Rated Frequence:
-
50Hz
-
Rated Power Input:
-
158W-282W
-
Tube Diameter:
-
45mm
-
Rated Current:
-
0.7A-1.25A
-
Running Time:
-
4min
-
Rated Speed:
-
12/17rpm
-
Protection Index:
-
Ip44
-
Insulation Class:
-
Class H
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Office Building
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Simple
-
Model Number:
-
XP
-
Rated Torque:
-
8N.m-50N.m
-
Rated Voltage:
-
230V
-
Rated Frequence:
-
50Hz
-
Rated Power Input:
-
158W-282W
-
Tube Diameter:
-
45mm
-
Rated Current:
-
0.7A-1.25A
-
Running Time:
-
4min
-
Rated Speed:
-
12/17rpm
-
Protection Index:
-
Ip44
-
Insulation Class:
-
Class H

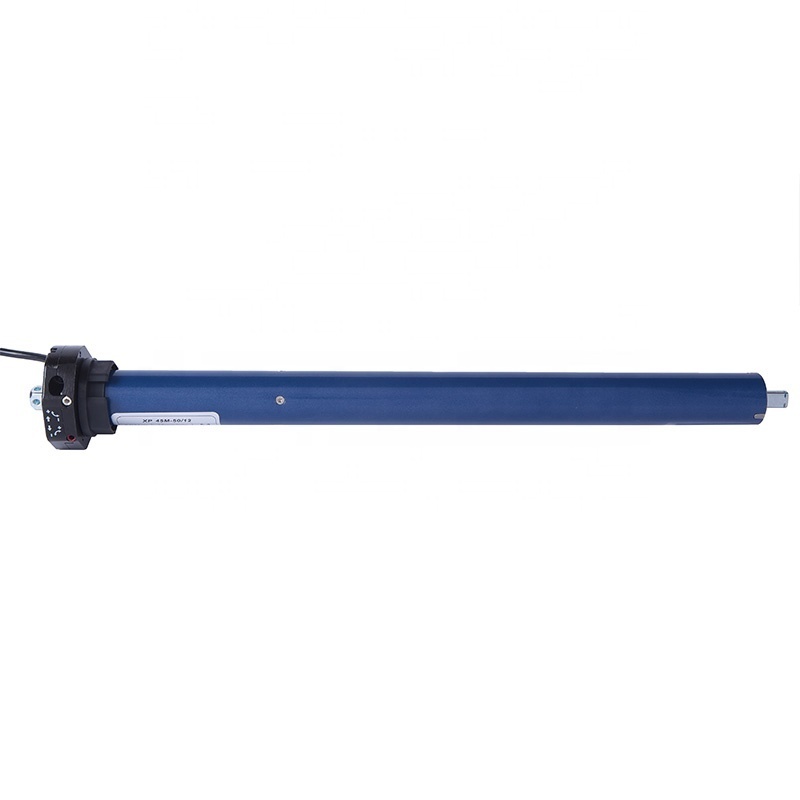

electric awning tubular motor
Tubular motor(45M) for roller shutter door, electrical tubular motor,tubular motor,roller shutter motor,garage door motor,electric motor,blinds motor,ac motor,curtain motor
XP45M Traditional electrical tubular motor Tubular Motor,electrical tubular motor, tubular motor,electric motor: 45mm in diameter, 8N.m.~50N.m. Manual override type, traditional style, Stable quality with attractive price. CE, CCC and TUV approved.Ideal for rolling blinds and Awning, Screen,rolling shutters etc....110V/60HZ is also available;
Detailed Technical Data:
| XP45M New Manual | Rated torque | Rated voltage | Rated frequency | Rated power input | Tube diameter | Rated current | Running time | Rated speed | Protection index | Insulation |
| (N.m) | (V) | (Hz) | (W) | (mm) | (A) | (min) | (rpm) | (IP) | ||
| 8N.m | 230V | 50Hz | 158W | 92mm | 0.70A | S2 4min | 12/17rpm | Ip44 | Class H | |
| 10N.m | 230V | 50Hz | 162W | 92mm | 0.75A | S2 4min | 12/17rpm | Ip44 | Class H | |
| 15N.m | 230V | 50Hz | 170W | 92mm | 0.78A | S2 4min | 12/17rpm | Ip44 | Class H | |
| 20N.m | 230V | 50Hz | 178W | 92mm | 0.80A | S2 4min | 12/17rpm | Ip44 | Class H | |
| 30N.m | 230V | 50Hz | 235W | 92mm | 1.05A | S2 4min | 12rpm | Ip44 | Class H | |
| 40N.m | 230V | 50Hz | 276W | 92mm | 1.23A | S2 4min | 12rpm | Ip44 | Class H | |
| 50N.m | 230V | 50Hz | 282W | 92mm | 1.25A | S2 4min | 12rpm | Ip44 | Class H |
110V/60HZ is also available;please ask our sales team for details
-Production process:
-Tubular motor package:
-Manufacturing Equipment:
Tubular motor Certification:
CE,TUV, LVD.EMC Certification
-Aboves are our regular specifacation, any Customizing request is also welcome!
-We are one of most competive manufacturers/exporters in China on tubular motor, Side motor, Central motor ,sliding motor etc, contact us directly for more items and better prices!
MOQ: One set
