Quick Details
-
Product name:
-
UL listed 12 v Magnetic door reed switch with terminal block BR-1041T
-
certificate:
-
CE, UL, CUL
-
Color:
-
White, Brown, grey
-
Installation:
-
self-locking
-
Switch:
-
Push button switch
-
Specifiaction:
-
3/4" diameter press to fit
-
Feature:
-
18"#22AWG leads or screw avaliable
-
Usage:
-
Door
-
Material:
-
ABS Plastic
-
Size:
-
3/4"dia.x15/16"L
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sentek
-
Model Number:
-
BR-1041T
-
Product name:
-
UL listed 12 v Magnetic door reed switch with terminal block BR-1041T
-
certificate:
-
CE, UL, CUL
-
Color:
-
White, Brown, grey
-
Installation:
-
self-locking
-
Switch:
-
Push button switch
-
Specifiaction:
-
3/4" diameter press to fit
-
Feature:
-
18"#22AWG leads or screw avaliable
-
Usage:
-
Door
-
Material:
-
ABS Plastic
-
Size:
-
3/4"dia.x15/16"L
UL listed 12 v Magnetic door reed switch with terminal block BR-1041T
Specification:
|
Part Number |
Loop Type |
Reed Form |
Gap (Inch (mm) ) |
Maximum Initial Contact Resistance (Ohm) |
Maximum Contact Rating (W) |
Maximum Switching Voltage (VDC/VAC) |
Maximum Switching Current (A) |
|
BR-1041T |
Closed |
N/O |
1/4 (6) |
0.150 |
10 |
100 |
0.5 |
|
BR-1041TA |
Open |
N/C |
1/4 (6) |
0.150 |
3 |
30 |
0.2 |

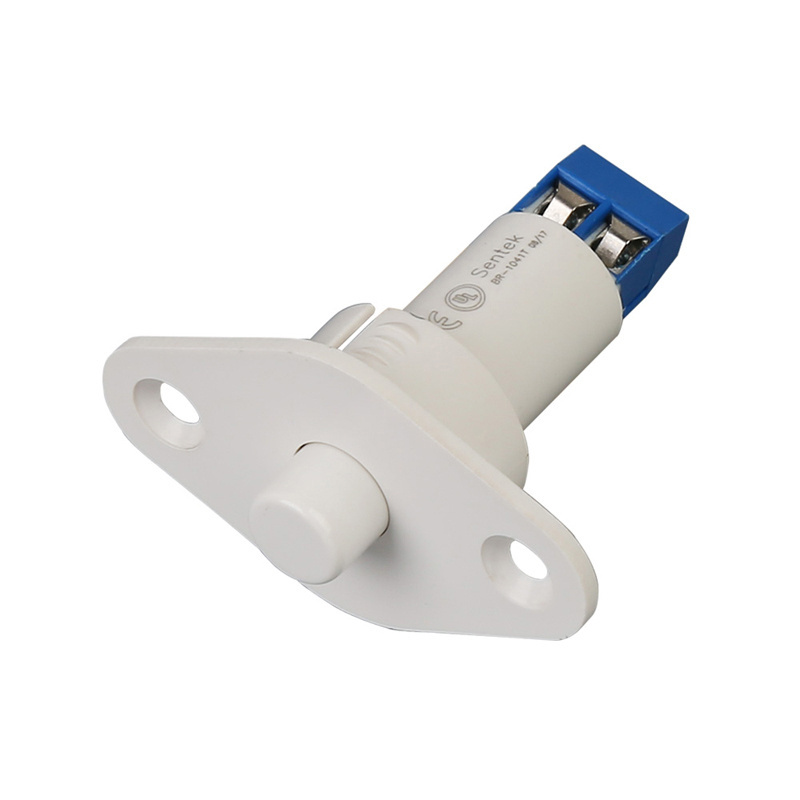

UL Listed 12 V Magnetic Door Reed Switch With Terminal Block BR-1041T
Dimension (mm):
Product Features:
1) Push button switch
2) 3/4" diameter press to fit
3) UL&CE
4)Self-locking
5)Spacer and screw included
6)18"#22AWG leads or screw avaliable
7)Special leads available
8)Colors: white ,brown
