Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BLIIoT
-
Supplier Type:
-
Original Manufacturers
-

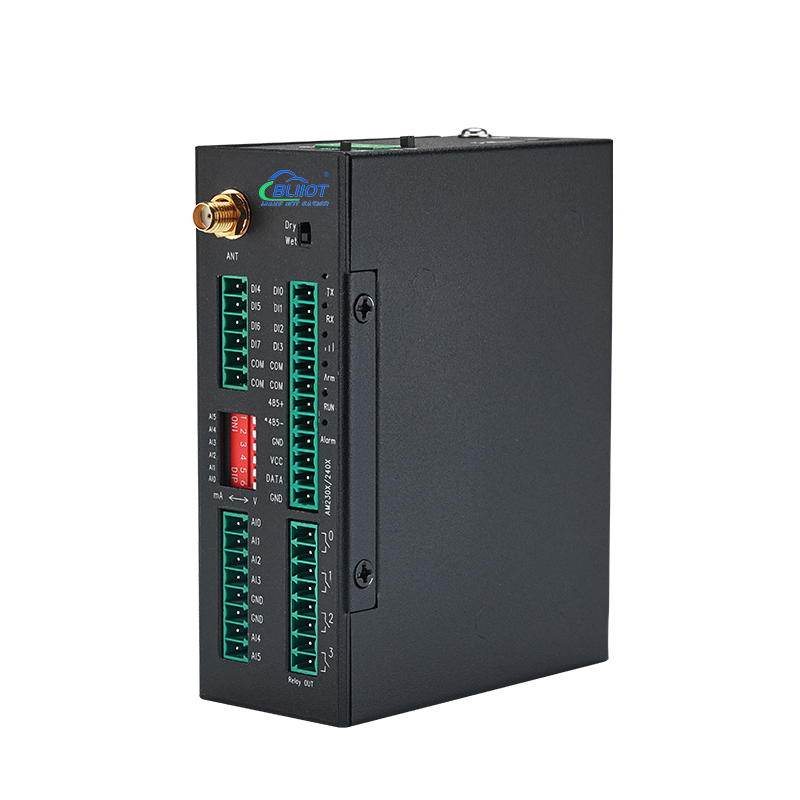

Product name:
-
S272
-
Certificate:
-
CE,FCC ROHS
-
SIM Interface:
-
Supporting 3V SIM Card
-
Net Weight:
-
950g
-
Compact size:
-
175 * 88 * 30mm
-
Temperature range:
-
-10-+70 °C
-
Humidity range:
-
Relative humidity 95%
-
Backup Battery:
-
3.7V 1200mAH
-
GSM Frequency:
-
850/900/1800/1900Mhz
Quick Details
-
Chipset:
-
S272
-
Application:
-
IIOT,Industrial automation, BTS monitoring
-
Model Number:
-
S272
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BLIIoT
-
Supplier Type:
-
Original Manufacturers
-
Product name:
-
S272
-
Certificate:
-
CE,FCC ROHS
-
SIM Interface:
-
Supporting 3V SIM Card
-
Net Weight:
-
950g
-
Compact size:
-
175 * 88 * 30mm
-
Temperature range:
-
-10-+70 °C
-
Humidity range:
-
Relative humidity 95%
-
Backup Battery:
-
3.7V 1200mAH
-
GSM Frequency:
-
850/900/1800/1900Mhz
Product Description
Specifications
|
Item
|
Reference Scope
|
|
DC Power supply
|
Standard adapter: DC 12V/1.5A Range 9-36VDC
|
|
Power consumption
|
Standby:12V/70mA; Working Max.: 12V/300mA
|
|
GSM Frequency
|
850/900/1800/1900Mhz
|
|
3G/4G/NB-Iot
|
Optional: WCDMA/TDD-LTE/FDD-LTE/NB-IoT
|
|
TCP/IP stack
|
TCP,UDP
|
|
SIM interface
|
Supporting 3V SIM Card
|
|
External antenna
|
SMA Antenna interface, 50 Ohm, Gain: 3dB
|
|
Serial Interfaces
|
1 USB Port
|
|
Protocols
|
SMS, GPRS UDP,TCP, Modbus RTU, Modbus TCP and more equipment protocols can be added according to requirements.
|
|
RS485
|
1 RS485, Support Transparent transmission and Modbus RTU Slave
|
|
Digital Inputs
|
8 Digital input, NC/NO type, one of it can be used as Pulse Counters;
|
|
Analog Inputs
|
6 Analog Inputs. 12 bit resolution, 0-5V or 0-20mA or 4-20mA;
Optional: each AIN can change to PT100 RTD inputs. |
|
Temp.&Hum Inputs
|
Temperature range: -40°C to +80°C, Humidity Range: 0~100%RH;
|
|
Relay Outputs
|
4, Rated: 5A/30VDC,5A/250VAC
|
|
Power Outputs
|
1 Port, for external device;
|
|
Memory Capacity
|
Internal 8G SD card inside, can save the data for 100000events.
|
|
Backup Battery
|
3.7V 1200mAH
|
|
Temperature range
|
-10-+70 °C
|
|
Humidity range
|
Relative humidity 95% (condensation free)
|
|
Exterior dimension
|
175mm*88mm*30mm
|
|
Net Weight
|
950g
|
