Quick Details
-
Emboss type::
-
Mylar dome, Metal dome
-
Rear adhesive:
-
3M467,3M468,etc...
-
Matching color:
-
Pantone No.
-
Tail, pin and circuit layout::
-
Subject to customers detailed requests.
-
Connector:
-
Female/male connectors
-
Exported to:
-
Israel, Malaysia, Ireland, Germany, Austria, United States, etc.
-
Tags:
-
On-time shipment |Product quality protection | Payment protection
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Name:
-
fpc membrane switch
-
Key option::
-
Flat or Emboss
-
Emboss type::
-
Mylar dome, Metal dome
-
Rear adhesive:
-
3M467,3M468,etc...
-
Matching color:
-
Pantone No.
-
Tail, pin and circuit layout::
-
Subject to customers detailed requests.
-
Connector:
-
Female/male connectors
-
Exported to:
-
Israel, Malaysia, Ireland, Germany, Austria, United States, etc.
-
Tags:
-
On-time shipment |Product quality protection | Payment protection
Product Description
| Name |

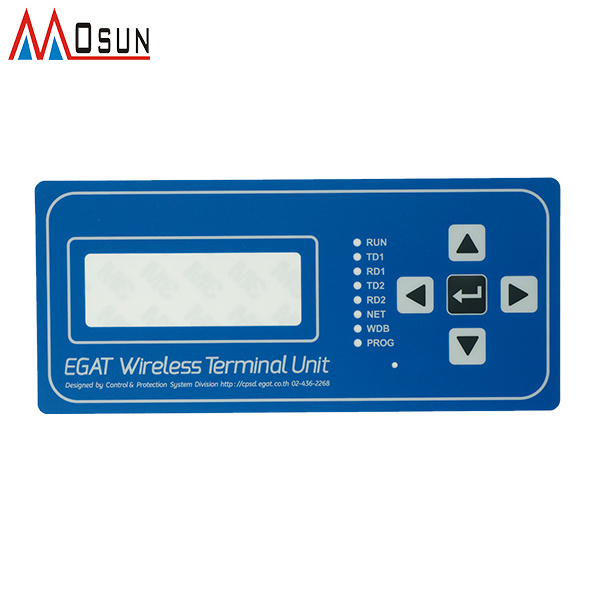

PET PC keypad and keyboard planar FPC PCB membrane switch |
| Size | 145×155MM |
| Color | Pantone No. |
| Material | PET |
| Model Number | MK3006 |
| Key Option | Embossing |
| Dome Type | Metal dome |
| Tail | 150MM |
| Connector | YES |
| Used | Industrial Controls |
| Certification | ISO9001, SGS, |
Structural
Our Main Product
Sheet Metal Fabrication
Shielding Membrane Switch
LED Membrane Switch Non-tactile Membrane Switch
Membrane Overlay Metal Keypad & Keyboard
Related Products
Cost effective custom
High qulity waterproof
Customized pet material button
metal dome push button metal dome embossed led embedded
membrane switch membrane switch membrane switch with factory price
Features
PET PC keypad and keyboard planar FPC PCB membrane switch
| 1 | Material | PET(polyester),PC(polycarbonate). |
| 2 | Components: | LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements. |
| 3 | Dimension | According to customer's demand,OEM service. |
| 4 | Artwork Format | CorelDraw, Adobe Illustrator AI or EPS, AutoCAD Dwg or DXF. |
| 5 | Color | Pantone and RALcolor matching system. |
| 6 | Embossing | Raises the surface of graphic overlay to emphasize the active key area,upper circuit can be embossed to insert metal domes. |
| Embossed type: Pillow emboss, Dome emboss, Frame emboss. | ||
| 7 | Keys Options | For a tactile response and indicate the location of switches. |
| 1. Tactile Keys: metal domes or poly domes. | ||
| 2. Non-tactile keys: flat button, printed silver spot on the circuit. | ||
| 8 | Cables | Is extension of circuit and communication with your device. |
| 9 | Circuitry option | 1. Silver printed conductive inks . |
| 2. Copper etched circuit /Polyimide Kapton circuit ( FPC). | ||
| 3. PCB circcuit board . | ||
| 10 | Connector Tail | 1. Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch; |
| 2. Female connector with 2.54MM pitch; | ||
| 3. Male connector ; | ||
| 4. Solder Pins. | ||
| 11 | Shielding | For protection function. |
| 12 | Printing | Screen printing. |
| 13 | Window | With clear or transparent window. |
| 14 | Surface | Glossy surface or matte surface. |
| 15 | Rear Adhesive |
3M467,3M468,3M9080 ect. |
Our service
| 1. OEM service: Receive drawing---Discuss price---Make tooling---Confirm sample--- Manufacture---Arrange shipment. |
|
2. Design service: Receive sample---Design and draw---Confirm drawing---Discuss price---Make tooling---Confirm sample---Manufacture---Arrange shipment. |
|
3. Service on the make: Tell you production progress once arranging to make. |
| 4. After sale service: Any quality question, welcome your feedback. 100% Settle for you!! |
