Quick Details
-
Weight:
-
1000 KG
-
lift:
-
70-84m
-
range:
-
22-40m
-
traffic:
-
13-32m³
Quick Details
-
Place of Origin:
-
China
-
Diameter:
-
2 cm
-
Key Selling Points:
-
fine quality, competitive price
-
Weight:
-
1000 KG
-
lift:
-
70-84m
-
range:
-
22-40m
-
traffic:
-
13-32m³

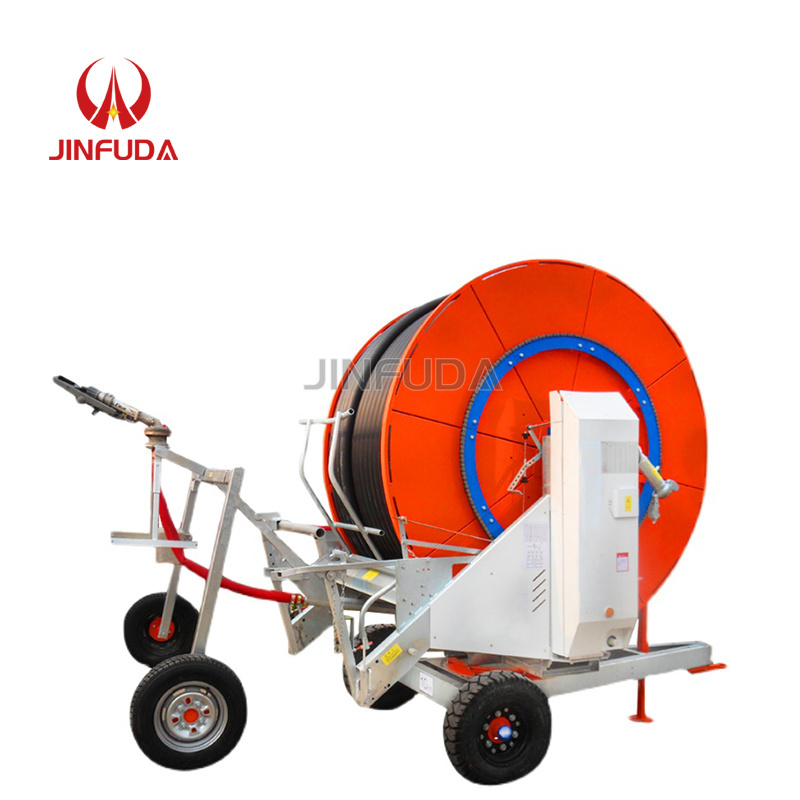

Theworking principle of the coil type sprinkler: The main engine is placed at one end of the irrigation plot, and the water supply pipe wrapped around the main engine and the water spraying vehicle connected to the water supply pipe are dragged out to the other end of the plot by traction force, so as to connect the water source and achieve a certain working water pressure. This water spraying car starts to spray water to the farmland through the spray gun or cantilever. The main engine uses the water pressure to generate a certain mechanical kinetic energy through the work of the water turbine, gearbox and rotating system, and starts to rotate the coil. The rotation of the coil drives one end of the water transmission pipe block to rewind toward the main engine.
Forming reel in rotation, and water at a constant speed driving under the speed setting back to walk, walk while spraying, until complete irrigation of the plot, when the small car to walk to the host location, the host can elevate the car and fixed on a host computer, at this time the irrigation process, cut off the water supply, equipment can enter the next plots for another irrigation.
Forming reel in rotation, and water at a constant speed driving under the speed setting back to walk, walk while spraying, until complete irrigation of the plot, when the small car to walk to the host location, the host can elevate the car and fixed on a host computer, at this time the irrigation process, cut off the water supply, equipment can enter the next plots for another irrigation.
1.Functional design: new technology, best performance, the application of new technology to bring performance and
cost ratio, a large number of common parts to standardize the equipment structure
2.Recovery system: safe and reliable PE pipe recovery, it ensures constant recovery speed and automatic arrangement of
2.Recovery system: safe and reliable PE pipe recovery, it ensures constant recovery speed and automatic arrangement of
PE pipe,and in the completion of irrigation and once the completion of drainage and irrigation and once the occurrence
of pipe failure automatically stop
3. Chain rotation: accurate, efficient, low energy consumption, used for coil rotation of rice sprocket, its accurate teeth
3. Chain rotation: accurate, efficient, low energy consumption, used for coil rotation of rice sprocket, its accurate teeth
and ensure the operation of the equipment, as well as the strong karma drive sprocket production life operation and
low maintenance consumption.
4.Save water and labor. Because the sprinkler can control the amount of water spraying to avoid ground runoff and deep
4.Save water and labor. Because the sprinkler can control the amount of water spraying to avoid ground runoff and deep
leakage losses, the general ground sprinkler irrigation saves water by 30-50%. Mechanization and automation greatly
save labor and reduce field labor. According to statistics, the amount of labor required by sprinkler irrigation is only 1/5
of that of surface irrigation
5. Improve the utilization rate of land. Irrigation can make full use of the cultivated land and improve the utilization rate of
land by 7-10% compared with surface irrigation, which does not require irrigation ditches and ridges in the field
6. Easy installation, simple operation, safe use, high efficiency and water saving
5. Improve the utilization rate of land. Irrigation can make full use of the cultivated land and improve the utilization rate of
land by 7-10% compared with surface irrigation, which does not require irrigation ditches and ridges in the field
6. Easy installation, simple operation, safe use, high efficiency and water saving
|
Model
|
JFD-75-200
|
JFD-75-300
|
|
Length of PE pipe
|
200mm
|
300mm
|
|
Uniformity coeffcient of irrigation
|
cu>0.85
|
cu>0.85
|
|
Input pressure
|
0.6-1.0mpa
|
0.6-1.0mpa
|
|
Head pressure of nozzle
|
0.25-0.5mpa
|
0.25-0.5mpa
|
|
Traffic
|
13-32m³
|
26-36m³
|
|
Matching motor power
|
11-18.5kw
|
11-18.5kw
|
|
Diameter of nozzle
|
14-22mm
|
14-22mm
|
|
Lift
|
70-84m
|
91m
|
