Midea climatiseur media ar condicionado split smart 14kw easy installation factory price dc inverter vrf air conditioner

Midea climatiseur media ar condicionado split smart 14kw easy installation factory price dc inverter vrf air conditioner

FOB Reference Price: Get Latest Price

≥1 Sets

US $7500

≥2 Sets

US $5500

≥3 Sets

US $4500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

App-Controlled:: Yes

Fixed Frequency/Variable Frequency:: Variable frequency

Place of Origin:: Guangzhou ,China

Brand Name:: Midea

Model Number:: mini vrf air conditioner

COP:: ≥3.5

Voltage (V):: 220-240V

Maximum Airflow Rate:: 6983m³/h

Featured Function:: condensor unit

Recommended Room Size（square feet）:: 30

Product Name:: Midea vrf mini series condensor unit air conditioner

Refrigerant:: R410A

Function:: heating and cooling

Cooling capacity:: 8.0-17.5Kw/ 27.3-52.9Kbtu

Heating capacity:: 9.0-19Kw / 30.7-58Kbtu

Compressor:: DC inverter

Power supply:: 220-240V/1N/50(60)Hz

Power input:: 2-5.3Kw

Noise:: 54-57db(A)

Operating temperature range:: Cooling:-5~55 Heating:-15~27

Quick Details

Warranty:: 2 years

Type:: Central Air Conditioners

Application:: Hotel, Outdoor, Garage, Commercial, Household

App-Controlled:: Yes

Fixed Frequency/Variable Frequency:: Variable frequency

Place of Origin:: Guangzhou ,China

Brand Name:: Midea

Model Number:: mini vrf air conditioner

COP:: ≥3.5

Voltage (V):: 220-240V

Maximum Airflow Rate:: 6983m³/h

Featured Function:: condensor unit

Recommended Room Size（square feet）:: 30

Product Name:: Midea vrf mini series condensor unit air conditioner

Refrigerant:: R410A

Function:: heating and cooling

Cooling capacity:: 8.0-17.5Kw/ 27.3-52.9Kbtu

Heating capacity:: 9.0-19Kw / 30.7-58Kbtu

Compressor:: DC inverter

Power supply:: 220-240V/1N/50(60)Hz

Power input:: 2-5.3Kw

Noise:: 54-57db(A)

Operating temperature range:: Cooling:-5~55 Heating:-15~27

Product Presentation

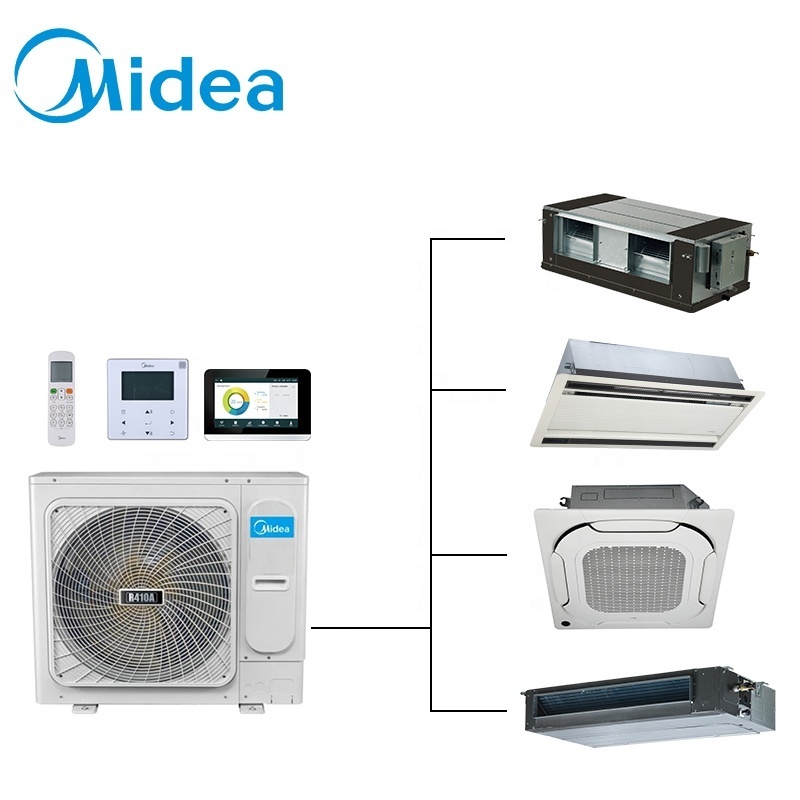

Midea VRF Mini Series condensor unit

Midea Mini VRF can help users far away from noise and provide a cozy home environment. Midea VRF systems feature a compact footprint which requires less outdoor space, and with long piping length, the system allows maximum flexibility in installation. There are also a variety of indoor unit styles available depending on the preference of the homeowner or the installation requirements. Besides, some ranges have been certified by EUROVENT, which provides a common platform enabling full transparency in comparing product efficiencies and other main specifications. condensor unit

Why Choose Us

1.Experience condensor unit

Over 50-years Experience in Air

Conditioning/HVAC System. With more than 50 years of experience, we have successfully completed dozens of large-scale HVAC projects and have a deep understanding of global HVAC projects.

2.Professional design condensor unit

We have a professional design team, can provide you with a suitable AC plane design according to your architectural plan, we will provide you with the most suitable design

scheme. condensor unit

3.Professional selectoion

According to the different design scheme, we will choose the most suitable design scheme for you from a more professional perspective.

4.Providing One-Stop Solution of HVAC System condensor unit

We can provide one-stop service, which will save you a lot of money and time. Indoor units and outdoor units, control system, installing accessories, tools and Supply HVAC all materials, including air conditioners, ventilation, installation accessories, etc.

5.Technical Support condensor unit

We can provide HVAC commissioning service. Air conditioner project engineers can guide and supervise product installation on site.

6.After-sales service

We have Global After-Sales System with expertise installation service. Ensure your after-sales worry-free.

Product Line

Min i VRF has two options, standard series and Mini C series. For standard series, it has 4 models from 12 Kw to 18 kw.

For Mini C series, it has 5 models from 8kw to 16kw. The Mini VRF is perfect for commercial and residential applications: small offices, villas, apartment, shops, etc.

8KW 10-12KW 16KW 12-18KW

Product name			Midea 220-240v DC inverter VRF Mini System Central Air Conditioner
Power Supply			220-240v/3P/50(60)HZ
Cooling1	Capacity	8.0KW-15.5KW	27.3-52.9KBtu/h
		Power input	2-4.8KW
		EER	4-3.23KW/KW
Heating2	Capacity	9.0KW-18KW	30.7-61.4KBtu/h
		Power input	1.95-4.65KW
		COP	4.62-3.87KW/KW
Compressors	Type	DC inverter
Fan motors	Type	DC inverter
Refrigerant	Type	R410A
Airflow rate			3700-5200m³/h
Airflow rate				54-56dB(A)
Ambient temp	Cooling	-5℃ to55 ℃
Ambient temp		Heating	-15 to 27℃

1.Wide Capacity Range

Mini VRF has two options, standard series and Mini C series. For standard series, it has 4 models from 12kW to 18kW.
For Mini C series, it has 5 models from 8kW to 16kW. The Mini VRF is perfect for commercial and residential applica
tions: small offiffiffices, villas, apartments, shops, etc.

2. Four-Way Piping Connection

More Convenient Piping Connector – Branch Box

A four-direction space is available for connecting pipes and wiring in various installation sites. Easier and safer installation thanks to a branch box that simplifies piping work greatly.

3.Long Pinping Capability

The mini series of air conditioning duct length is sufficient to support all building HVAC equipment.

4.Easy Installation

The mini VRF can be transported by elevator which makes installation dramatically easy, and effffectively reduces time and labor thanks to the small size.

5.High Effciency Compressor

DC inverter compressor makes the output of the outdoor unit to be to be modulated by the cooling or heating demands of the zone that it controls. This advanced system ensures precise temperature regulation and highly effiffifficient energy usage, making a signifificant contribution to the limiting the impact on the environment.

6.Certifications and Authorization

IECEE CB Scheme Eurovent certification CE Certification Nigeria PC Certification

How to get a quick quotation?

Information needed Midea Group's management system before prepare quotation details for you.

1.Project name :building name or building type, such as ××× office project, residential house project etc.

2.Project accurate address;

3.Your company contact information ＆ address；

4.Please provide product list or engineer drawing with product type marked.

5.When you expect to process purchase ＆ logistics for this project?

6.Is it tender project or not? Because tender project you may need our authorization letter.

Product packaging

We will use cartons and wooden cases to protect your goods from shock and try our best to ensure that your goods will not be damaged during transportation.
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container
