Spindle speed 8000rpm
- Product Details
- {{item.text}}
Quick Details
-
Table Travel (Y) (mm):
-
500
-
Spindle Taper:
-
BT40
-
Dimension(L*W*H):
-
2840*2300*2105mm
-
Weight (T):
-
5.3 T
-
Positioning Accuracy (mm):
-
0.005 mm
-
Repeatability (X/Y/Z) (mm):
-
0.003
-
Range of Spindle Speed(r.p.m):
-
40 - 6000 r.p.m
-
Spindle Motor Power(kW):
-
7.5kw
-
Max. Table Load(kg):
-
500 kg
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SOSEN
-
Voltage:
-
as customer's requirement
-
Marketing Type:
-
new
-
Product name:
-
Metal milling CNC milling machine 4-axis vertical machine center
-
Table size:
-
1000*500mm
-
CNC controller:
-
FANUC,SIEMENS, GSK
-
X-axis travel:
-
800mm
-
Y-axis travel:
-
500mm
-
Z-Axis Travel:
-
500mm
-
Spindle nose taper:
-
BT40
-
Automatic tool changer:
-
24 pcs tools
-
Guideway:
-
box guideway
-
Spindle:
-
Taiwan spindle high precisin
Quick Details
-
Table Size (mm):
-
1100x500mm
-
Number of Axes:
-
4
-
Table Travel (X) (mm):
-
800
-
Table Travel (Y) (mm):
-
500
-
Spindle Taper:
-
BT40
-
Dimension(L*W*H):
-
2840*2300*2105mm
-
Weight (T):
-
5.3 T
-
Positioning Accuracy (mm):
-
0.005 mm
-
Repeatability (X/Y/Z) (mm):
-
0.003
-
Range of Spindle Speed(r.p.m):
-
40 - 6000 r.p.m
-
Spindle Motor Power(kW):
-
7.5kw
-
Max. Table Load(kg):
-
500 kg
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SOSEN
-
Voltage:
-
as customer's requirement
-
Marketing Type:
-
new
-
Product name:
-
Metal milling CNC milling machine 4-axis vertical machine center
-
Table size:
-
1000*500mm
-
CNC controller:
-
FANUC,SIEMENS, GSK
-
X-axis travel:
-
800mm
-
Y-axis travel:
-
500mm
-
Z-Axis Travel:
-
500mm
-
Spindle nose taper:
-
BT40
-
Automatic tool changer:
-
24 pcs tools
-
Guideway:
-
box guideway
-
Spindle:
-
Taiwan spindle high precisin
Products Description

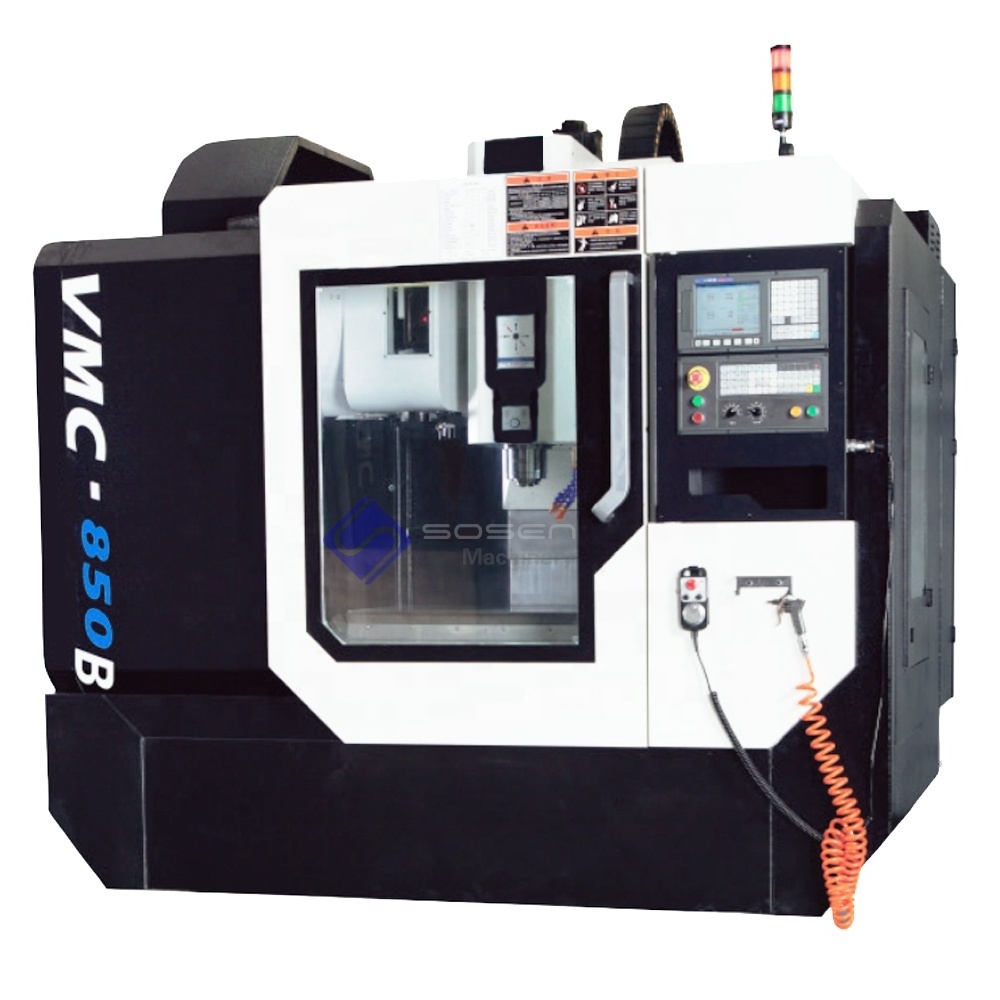

VMC850B Metal milling CNC milling machine 4-axis vertical machine center
|
Model
|
VMC850B
|
|
Worktable size
|
1100*500mm
|
|
Max.loading capacity of worktable
|
500kg
|
|
Worktable travel X*Y*Z
|
800*500*500mm
|
|
Distance between spindle nose to table
|
100-600mm
|
|
Distance between spindle centre to column surface
|
560mm
|
|
Rapid moving speed X/Y/Z
|
24/24/18m/min
|
|
Cutting feeding speed X/Y/Z
|
10-10000mm/min
|
|
Spindle taper
|
BT40
|
|
Max.spindle speed
|
8000rpm
|
|
Spindle motor power
|
7.5/11kw
|
|
Position accuracy
|
0.005mm
|
|
Re-position accuracy
|
0.003mm
|
|
Automatic Tool magazine pieces
|
16/24 pcs
|
|
Max.tools weight
|
8 kg
|
|
Max.tools size
|
130*300mm
|
|
Time of tool changing
|
3 s
|
|
Overall size
|
2615*2300*2500mm
|
|
Machine weight
|
5300 kg
|
Standard accessories:
1.Umbrella-type 16 pcs Tools magazine from Taiwan.
2.BT40 spindle unit with 8000rpm spindle unit
3.X,Y,Z-axis with box guide way
4.Full protection
5.Work light
6.Coolant system
7.Electric Hand wheel
8.Centralized auto-lubrication system
9.GSK CNC controller
2.BT40 spindle unit with 8000rpm spindle unit
3.X,Y,Z-axis with box guide way
4.Full protection
5.Work light
6.Coolant system
7.Electric Hand wheel
8.Centralized auto-lubrication system
9.GSK CNC controller
Optional accessories:
1.4th axis CNC control rotary worktable
2.5th axis CNC control tilting rotary worktable
3.Spiral Conveyor
2.5th axis CNC control tilting rotary worktable
3.Spiral Conveyor
4.SIEMENS CNC controller
5.FANUC CNC controller
6.Oil coolant
7.Coolant through spindle
8.24 pcs disc type automatic tool changer
Details Images
3-axis Metal milling CNC milling machine 4-axis vertical machine center with box guide way on X/Y/Z axis.
Spindle
Automatic Tool Changer
Taiwan 16 pcs
umbrella type ATC
Optional:
Taiwan 24 pcs disc type ATC
Inside
X,Y,Z-axis with box guide way
Full-closed protection cover
the 4th axis
