Quick Details
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
Kunyi Electric
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
2 KG
-
Working Temperature Range:
-
0 - 500 ℃
-
Core Components:
-
other
-
Product Name::
-
tubular immersion heating element electric water resistance heater
-
Voltages available::
-
110v, 220v, 230v, 240v, 380V etc.
-
Power available::
-
According to your requirement
-
Tube Sheath::
-
stainless steel 304,321,316, Incoloy 800, Incoloy 840, Ti
-
Tube Diameter::
-
8mm,12mm, according to your requirement
-
Tube Length::
-
according to your requirement
-
Resistance heating wire::
-
Ni-Cr or FeCr
-
Insulation material::
-
High-purity Mgo
-
Thermocouple::
-
K type or J type/ or without
-
Keywords::
-
Flange tubulat immersion heater
Quick Details
-
Type:
-
Immersion Heater
-
Power Source:
-
Electric
-
Voltage:
-
110V-440V,can be customized
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
Kunyi Electric
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
2 KG
-
Working Temperature Range:
-
0 - 500 ℃
-
Core Components:
-
other
-
Product Name::
-
tubular immersion heating element electric water resistance heater
-
Voltages available::
-
110v, 220v, 230v, 240v, 380V etc.
-
Power available::
-
According to your requirement
-
Tube Sheath::
-
stainless steel 304,321,316, Incoloy 800, Incoloy 840, Ti
-
Tube Diameter::
-
8mm,12mm, according to your requirement
-
Tube Length::
-
according to your requirement
-
Resistance heating wire::
-
Ni-Cr or FeCr
-
Insulation material::
-
High-purity Mgo
-
Thermocouple::
-
K type or J type/ or without
-
Keywords::
-
Flange tubulat immersion heater
Products Description

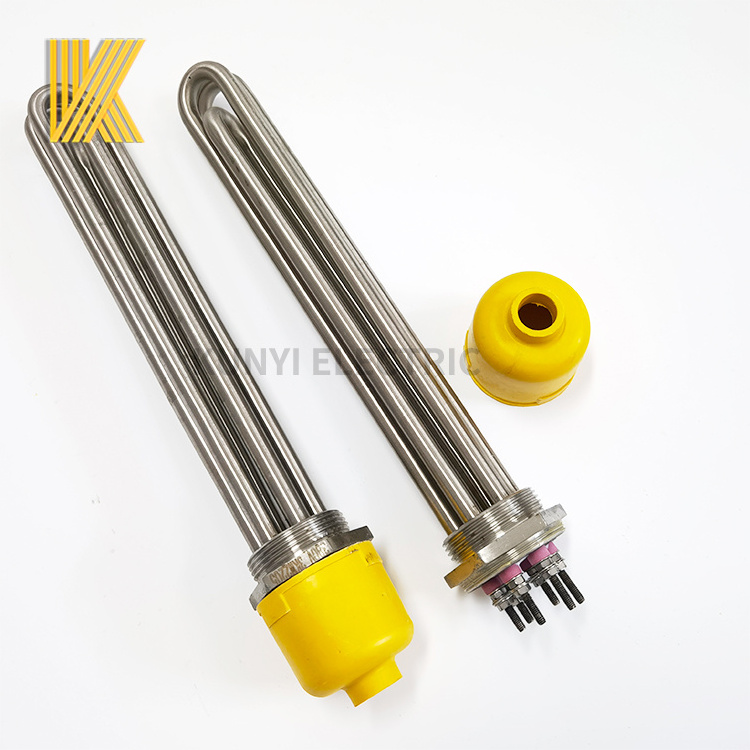

Tubular heating element are used for almost every kind of heating appliances. They are easy to form and feature highest mechanic stability and electric properties at the same time. Even though Tubular heating element are technically rather mature and universal to use, there exist various new innovative solutions for many applications. Screw in Tubular heating element are standardised for use in liquids like water.
Tubular heating element are easy to install,control and maintain, unique designer as your requirement. For corrosive enviroment, titanium material or tubular heating elements with additional sleeving are available .
Tubular heating element are easy to install,control and maintain, unique designer as your requirement. For corrosive enviroment, titanium material or tubular heating elements with additional sleeving are available .
|
Product Name
|
Electric 3kw 5kw Resistance Heating Rod Tubular Immersion Heater with screw plug
|
|
Voltages available
|
110v, 220v, 230v, 240v, 380V, according to your requirement
|
|
Power available
|
According to your requirement
|
|
Tube Sheath
|
Stainless steel 304,321,316, Incoloy 800, Incoloy 840, Ti
|
|
Tube Diameter
|
8mm, 12mm, can be customized
|
|
Tube Length
|
100mm - 10000mm, can be customized
|
|
Resistance heating wire
|
Ni-Cr or FeCr
|
|
Insulation
|
High-purity Mgo
|
|
Application
|
Liquid heating/ Gas heating/ Acid and alkali tank heating/ Water tank heating etc.
|
|
Voltage/Power
|
Tube length
|
Tube Diameter
|
Screw Size
|
|
220V/380V 3KW
|
210mm
|
10mm
|
G1-1/2"( Dia 47mm)
|
|
|
|
12mm
|
G2"( Dia 58mm)
|
|
220V/380V 6KW
|
250mm
|
10mm
|
G1-1/2"( Dia 47mm)
|
|
|
|
12mm
|
G2"( Dia 58mm)
|
|
220V/380V 9KW
|
300mm
|
10mm
|
G1-1/2"( Dia 47mm)
|
|
|
|
12mm
|
G2"( Dia 58mm)
|
|
220V/380V 12KW
|
350mm
|
10mm
|
G1-1/2"( Dia 47mm)
|
|
|
|
12mm
|
G2"( Dia 58mm)
|
|
220V/380V 15KW
|
600mm
|
10mm
|
G1-1/2"( Dia 47mm)
|
|
|
|
12mm
|
G2"( Dia 58mm)
|
Buying Guides
When you order the immersion heating elements, pls let us know:
* What wattage and voltage do you need?
* What is the tube diameter and heated length required?
* What specification of the flange?
* What's your using environment?
* What is maximum temperature and how long required to reach your temperature?
* What is the tube diameter and heated length required?
* What specification of the flange?
* What's your using environment?
* What is maximum temperature and how long required to reach your temperature?
Installation Instructions
Installation diagram for your reference (
Vertical installation should pay attention to the reserved cold zone
)
Detailed Photos
