Quick Details
-
Brand Name:
-
Dieyao
-
Liquid Flow Rate:
-
customized
-
Maximum Working Pressure:
-
3.5MPa
-
Weight:
-
200 KG
-
Dimension(L*W*H):
-
customized
-
Working Temperature Range:
-
customized
-
Product Name:
-

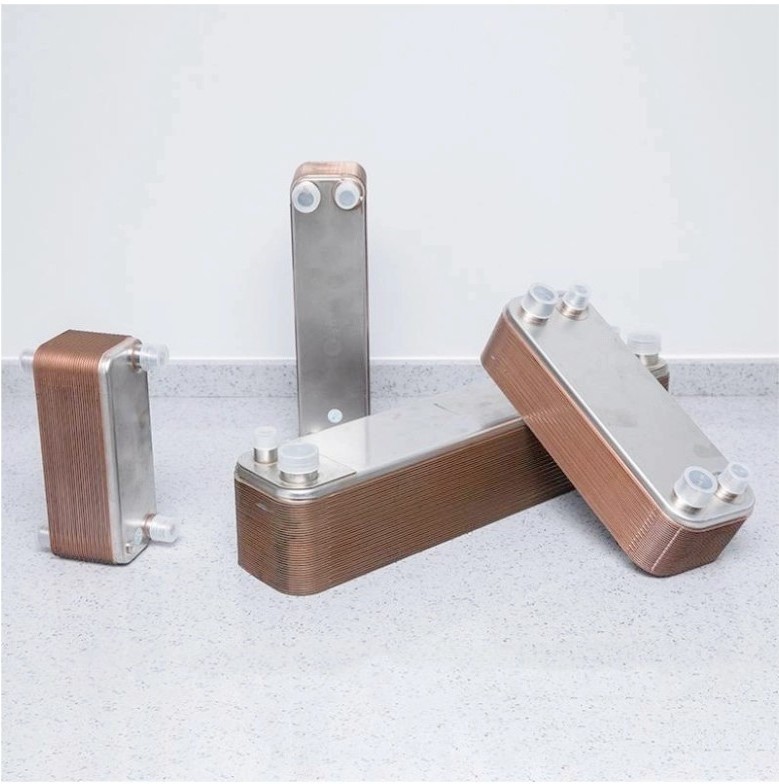

Brazed Plate Heat Exchanger
-
Plate material:
-
stainless steel AISI304, 316, 316L, titanium, Hastelloy, nickel
-
Color:
-
Customized Color
-
Control:
-
Fully/semi automatic
-
Plate thickness:
-
0.5-0.8mm
-
Gasket Material:
-
NBR,HNBR,EPDM,HEPDM
-
Channel Plate:
-
H Channel,M Channel,L Channel
-
Max design pressure:
-
3.5MPa
-
Certification:
-
CE/ISO9001/ISO14001
-
Maxi thermal load:
-
60MW
Quick Details
-
Structure:
-
Plate Heat Exchanger
-
Voltage:
-
customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Dieyao
-
Liquid Flow Rate:
-
customized
-
Maximum Working Pressure:
-
3.5MPa
-
Weight:
-
200 KG
-
Dimension(L*W*H):
-
customized
-
Working Temperature Range:
-
customized
-
Product Name:
-
Brazed Plate Heat Exchanger
-
Plate material:
-
stainless steel AISI304, 316, 316L, titanium, Hastelloy, nickel
-
Color:
-
Customized Color
-
Control:
-
Fully/semi automatic
-
Plate thickness:
-
0.5-0.8mm
-
Gasket Material:
-
NBR,HNBR,EPDM,HEPDM
-
Channel Plate:
-
H Channel,M Channel,L Channel
-
Max design pressure:
-
3.5MPa
-
Certification:
-
CE/ISO9001/ISO14001
-
Maxi thermal load:
-
60MW
Product Description
Specification
|
Plate Material
|
application
|
|
Stainless steel SUS304 SUS316L
|
Purified water, river water, food oil, mineral oil
|
|
Ti tanium and Pal ladium
|
Seawater, saltwater, salinization
|
|
Hadtelloy Alloy
|
Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
|
|
Nickel
|
High temperature and high concentration caustic soda
|
|
Sealing gasket material
|
Application
|
Operation Temperature
|
|
NBR
|
Water, seawater, mineral oil, brine
|
-15—130℃
|
|
BNBR
|
High temperature mineral oil, high temperature water
|
15—140℃
|
|
EPDM
|
Hot water, steam, acid, alkali
|
-25—150℃
|
|
Viton／Fluorine Rubber
|
Strong acids, alkalis, mineral oils, lubricants, and fuels, etc
|
5—200℃
|
|
NEOPRENE
|
Acids, alkalis, mineral oils, low molecular weight aliphatic hydrocarbons
|
35—130℃
|
|
Silicon Rubber
|
High temperature and certain corrosive media
|
65—200℃
|
