Quick Details
-
Brand Name:
-
IDEC
-
Model Number:
-

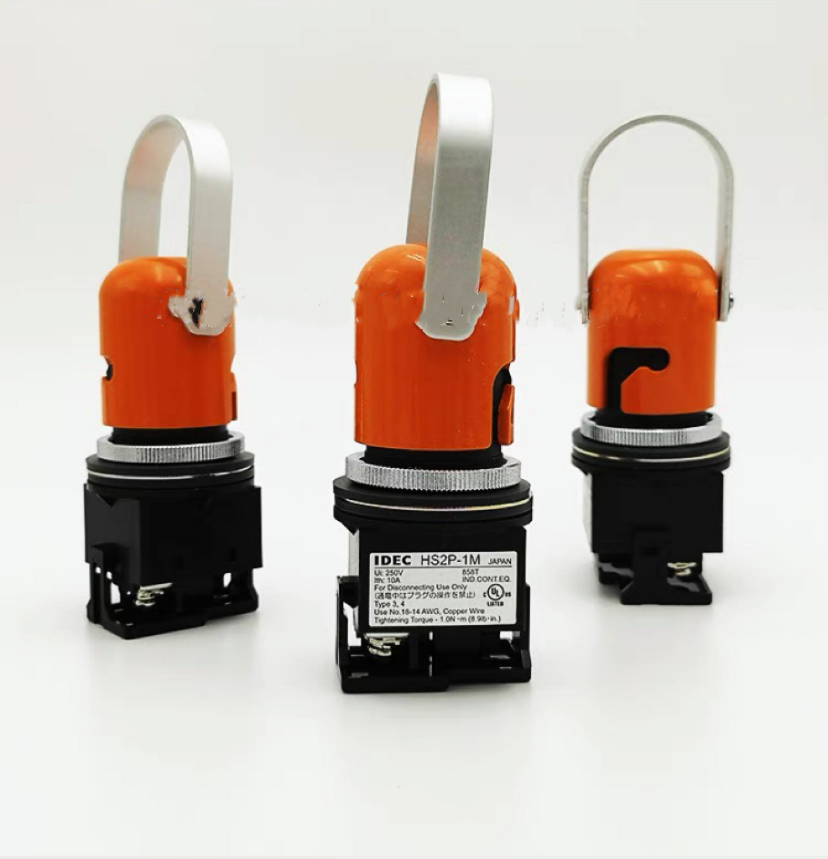

HS2P-1M
-
Product name:
-
explosion-proof switch
-
Material:
-
Metal
-
Model:
-
HS2P-1M
-
Standard:
-
High standard
-
Rated current:
-
10A
-
Rated voltage:
-
250V
-
Brand:
-
IDEC
-
Packing:
-
Carton Box
-
Quality:
-
High quality
-
Button color:
-
Orange
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Japan
-
Brand Name:
-
IDEC
-
Model Number:
-
HS2P-1M
-
Product name:
-
explosion-proof switch
-
Material:
-
Metal
-
Model:
-
HS2P-1M
-
Standard:
-
High standard
-
Rated current:
-
10A
-
Rated voltage:
-
250V
-
Brand:
-
IDEC
-
Packing:
-
Carton Box
-
Quality:
-
High quality
-
Button color:
-
Orange
Product Description
Specification
|
Applicable specifications
|
UL 508(UL listing authentication)
CSA c22.2 No.14(c-ul listing authentication)
UL498
CSA C22.2 No.182.1
|
|
Usage specifications
|
EN1088
|
|
Fixed grid voltage (Ui)
|
250V
|
|
Fixed grid current (lth)
|
10A
|
|
Standard Usage Bear
|
Ambient temperature:-20-+ 50 degrees Celsius
Relative humidity: 45-85%
Storage ambient temperature:-40-+ 85.degree.CUsage
environment: Pollution level 3 |
|
Absolute resistance
|
100 MQ or more (at DC 500V mega)
|
|
Proof voltage
|
Between the same polarity in the open circuit state;2000V.1-minute
Between charged metal and non charged metalparts interval;2000V.1-minute
|
|
Contact resistance
|
Above 100m (initial value)
|
|
Impact resistance
|
Durability: 1000m/s2
|
|
Vibration resistance
|
Action: 10~55Hz,amplitude: 0.5mm Durability: 30Hz,amplitude: 1.5mm
|
|
Operation method
|
Operations with dedicated plugs
|
|
Mechanical durability
|
More than 30000 times
|
|
Action characteristics
|
Operation angle 45 degrees, pulling stroke: 23.0 mm or more
|
|
Operating strength (rotary operation)
|
Above 3.0N·m
|
|
Quality (approximately)
|
150g
|
