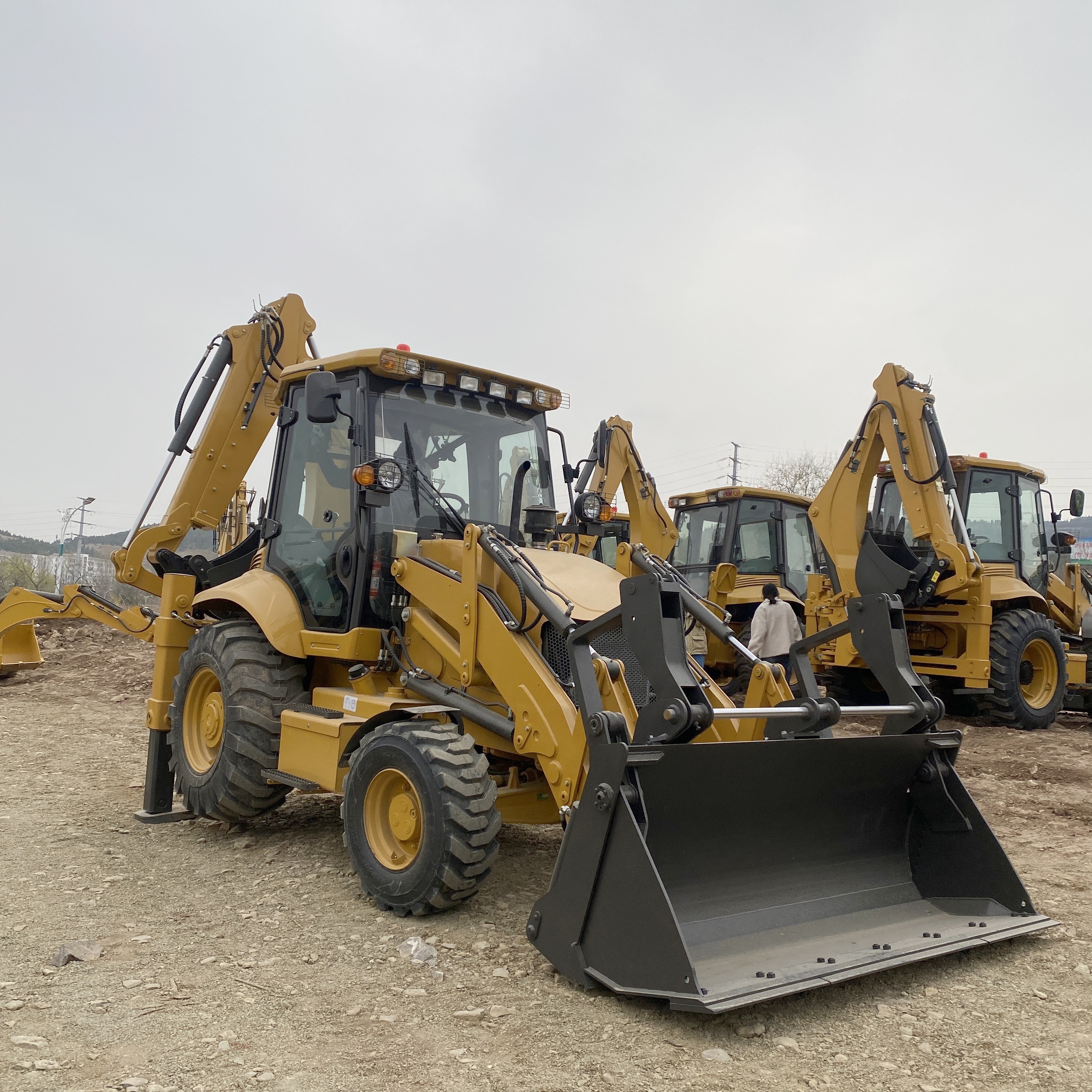

Heavy-duty multi functional backhoe loader with 4WD 4 Wheel Steering and joystick control with CE

Heavy-duty multi functional backhoe loader with 4WD 4 Wheel Steering and joystick control with CE

FOB Reference Price: Get Latest Price

≥1 Pieces

US $25086

≥3 Pieces

US $21900

≥10 Pieces

US $17500

≥20 Pieces

US $12666

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Dimension(Long * Breadth * High):: 6100*2365*3752

Machine Weight:: 2500 kg

Bucket capacity:: 1.0m3

Marketing Type:: New Product 2023

Wheel base:: 2200mm

Bucket Capacity:: 1.0m3

Min. Ground Clearance:: 300mm

Max. Pulling Force:: 65KN

Backhoe Capacity:: 0.3 m3

Steering Angle:: ±36 o

Pressure of the system:: 12Mpa

Rated Loader of Axle:: 8/18.5t

Inlet Pressure:: 1.3-1.5Mpa

Rated Speed:: 2200r/min

Quick Details

Engine Brand:: YUCHAI

Power:: 75 KW

Brand Name:: TAVOL

Place of Origin:: Shandong, China

Dimension(Long * Breadth * High):: 6100*2365*3752

Machine Weight:: 2500 kg

Bucket capacity:: 1.0m3

Marketing Type:: New Product 2023

Wheel base:: 2200mm

Bucket Capacity:: 1.0m3

Min. Ground Clearance:: 300mm

Max. Pulling Force:: 65KN

Backhoe Capacity:: 0.3 m3

Steering Angle:: ±36 o

Pressure of the system:: 12Mpa

Rated Loader of Axle:: 8/18.5t

Inlet Pressure:: 1.3-1.5Mpa

Rated Speed:: 2200r/min

FEATURES AT A GLANCE

* turbocharging four-stroke
*Fixed Shaft Power Transmission
*Air Over Oil Caliper Brake
*Operation Power Implementing brake,Manual Operation Power Terminating Brake
Is a kind of earth and stone construction machinery widely used in highway, railway, construction, hydro power, port,mine and

other construction projects. , hard soil, etc. for light shovel excavation.

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Item	Data	Item	Data
Overall Operating Weight	8200KG	Max. Pulling Force	65KN
Bucket capacity	1M3	Rated Power	75KW
Backhoe Capacity	0.3 m3	Rated Speed	2200r/min
LWH	6100×2365×3752	Min. Fuel Consumption	≤230g/km.h
Loading Lifting Capacity	2500KG	Min. turning radius	6581mm
Bucket Dumping Height	2742mm	Pressure of the system	12Mpa
Bucket Dumping Distance	925mm	Max. Digging Deptht	4082/4500mm
