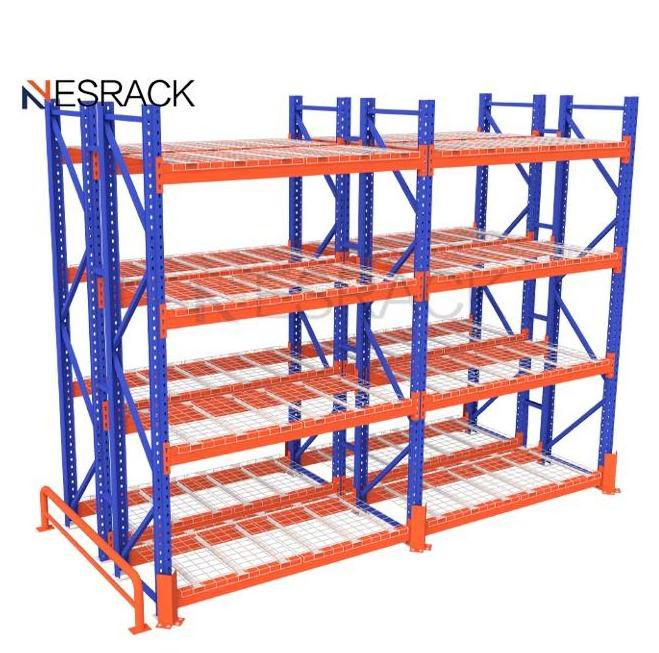

Pallet racking systems provide a direct access to all pallets, and is the most economical choice in terms of cost. It is composed of upright frames andbeams. It is designed for optimizing storage of goods of all sizes and weights. With a wide range of components and accessories, NESRACK can tailor-make to meet your precise requirements. And our structure is versatile for any application and conditions.Easy to install and dismantle.
- Product Details
- {{item.text}}
Quick Details
-
Capacity:
-
≤8000kg/layer and Customized
-
Feature:
-
Corrosion Protection
-
Type:
-
Multi-Level
-
Material:
-
High Quality Cold-rolled Steel
-
Use:
-
Warehouse heavy storage rack
-
application:
-
warehousing equipment
-
Size:
-
customized
-
Height:
-
customized
-
Width:
-
customized
-
Main parts:
-
vertical posts and horizontal brams
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Nesrack
-
Model Number:
-
PR-24010201
-
Capacity:
-
≤8000kg/layer and Customized
-
Feature:
-
Corrosion Protection
-
Type:
-
Multi-Level
-
Material:
-
High Quality Cold-rolled Steel
-
Use:
-
Warehouse heavy storage rack
-
application:
-
warehousing equipment
-
Size:
-
customized
-
Height:
-
customized
-
Width:
-
customized
-
Main parts:
-
vertical posts and horizontal brams
|
Item
|
value
|
Product name
|
Heavy Duty Warehouse Shelves Racks
|
|
|
Place of Origin
|
China
|
Usage
|
Warehouse Storage
|
|
|
|
Shandong
|
Color
|
blue，Orange
|
|
|
Brand Name
|
NESRACK
|
Application
|
goods storage
|
|
|
Type
|
Selective Pallet Rack
|
Surface treatment
|
Powder Coating
|
|
|
Material
|
Steel
|
Size
|
Customer Size
|
|
|
Feature
|
Corrosion Protection
|
Packing
|
customize
|
|
|
Use
|
Warehouse Rack
|
Certification
|
ISO9001/CE
|
|
|
Weight Capacity
|
2000-5000kg/layer
|
Structure
|
Assembled
|
|
|
Width
|
60/80 cm or customize
|
OEM&ODM
|
OEM&ODM
|
|
|
Height
|
max12000mm
|
|
|
|
Product Description
Warehouse Storage Boltless Rack Heavy Duty Pallet Racking System Garage Storage Warehouse Racking System
Pallet Racking
Column specification and bearing capacity
01
.Easy installation and reasonable structure.
02.
High-precision diamond-shaped hole design, plug-in structure, adjustable height up and down.
03
.
Fix the columns and beams to prevent the beams from falling due to improper operation.
04
.Increase the shelf load and adapt to more types of pallets.
|
Column height
|
3layers
beam
|
4layers
beam
|
5layer
beam
|
|
2000
|
3500
|
2500
|
2100
|
|
2500
|
3500
|
2500
|
2100
|
|
3000
|
4000
|
3600
|
2900
|
|
3500
|
3100
|
2400
|
2100
|
|
4000
|
3100
|
2400
|
2000
|
|
4500
|
3000
|
2400
|
2000
|
|
5000
|
3000
|
2300
|
2000
|
Main components
Frame
The frame of European 50mm pallet rack is connected by two uprights,horizontal bracing,diagonal bracing,two base plates and screw.
Upright
H-bracing and D-bracing
Base plates
Beam
The longest beam can be 4.5mm,and the max loading capacity can be 4000kg/perlevel, otherspecification please contact us for details.
