Quick Details
-
Dimension(L*W*H):
-
7590*3490*3690mm
-
Weight:
-
105000 KG
-
Drilling Diameter:
-
2500MM
-
Drilling Depth:
-
100/64m
-
Mobility:
-
-
-
Product name:
-
SR360R-E10
-
Rated output torque(KN.M):
-
360
-
Max. drilling diameter(mm):
-
2500
-
Max. drilling depth(m):
-
100/64
-
Crowd force(KN):
-
275
-
Line pull (kN):
-
335
-
Stroke (mm):
-
6000
-
Engine model:
-
ISU-ZU 6WG1
-
Engine power (kW/rpm):
-
300/1800
-
Operating weight (t):
-
105
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Famous
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
7590*3490*3690mm
-
Weight:
-
105000 KG
-
Drilling Diameter:
-
2500MM
-
Drilling Depth:
-
100/64m
-
Mobility:
-
-
-
Product name:
-
SR360R-E10
-
Rated output torque(KN.M):
-
360
-
Max. drilling diameter(mm):
-
2500
-
Max. drilling depth(m):
-
100/64
-
Crowd force(KN):
-
275
-
Line pull (kN):
-
335
-
Stroke (mm):
-
6000
-
Engine model:
-
ISU-ZU 6WG1
-
Engine power (kW/rpm):
-
300/1800
-
Operating weight (t):
-
105

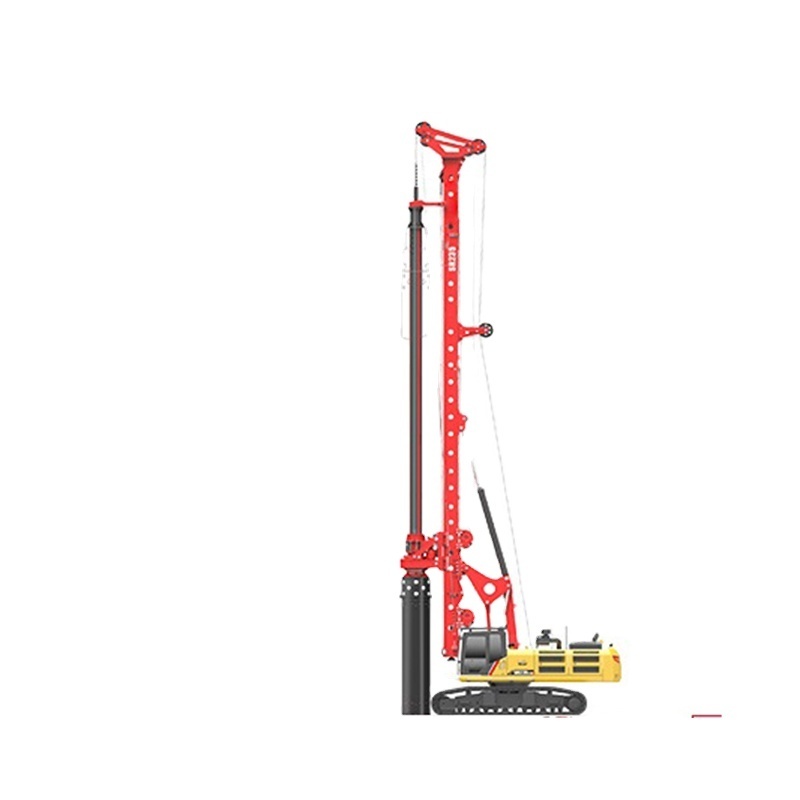

Best Mobile Rotary Drilling Rigs Price 360KN Rotary Drilling Rig SR360R-E10 SR360RH SR405R HK
Products Description
Large construction scope: Facing the rental market, low investment and high return. The max. dia. can be up to 2.5m, the max. depth can be up to 100m, covering more than 90% of the construction field; equipped with the sixth-generation Kelly bar of upgraded material, the integrated locking device, powerful construction.
Economy and energy saving: Adopt power optimization control technology to realize power distribution in real time, excellent compound action response time; high fuel efficiency and low comprehensive fuel consumption.
Step drum: Single layer wire rope winding for interlock Kelly bar; free of mutual extrusion and wear in wire rope layers to
increase service life by 35%.
High reliability: High standard design for mast and luffing boom to make it more strong and durable, no cracking in 20,000 hours operation test. High configuration reducer with large torque to guarantee high efficiency, safer operation and wider working scope.
Intelligent upgrade: HD touch screen, 3 ms refresh frequency, smooth animation display.
Convenient maintenance: The external driving key of rotary drive facilitates maintenance and replacement; the main winch wire rope end is fixed by wedge easy to disassemble and assemble. The special lubrication point connected with outlet hose to facilitate butter injection.
Safe and secure: 360° full-field monitoring, sound and light alarm
Economy and energy saving: Adopt power optimization control technology to realize power distribution in real time, excellent compound action response time; high fuel efficiency and low comprehensive fuel consumption.
Step drum: Single layer wire rope winding for interlock Kelly bar; free of mutual extrusion and wear in wire rope layers to
increase service life by 35%.
High reliability: High standard design for mast and luffing boom to make it more strong and durable, no cracking in 20,000 hours operation test. High configuration reducer with large torque to guarantee high efficiency, safer operation and wider working scope.
Intelligent upgrade: HD touch screen, 3 ms refresh frequency, smooth animation display.
Convenient maintenance: The external driving key of rotary drive facilitates maintenance and replacement; the main winch wire rope end is fixed by wedge easy to disassemble and assemble. The special lubrication point connected with outlet hose to facilitate butter injection.
Safe and secure: 360° full-field monitoring, sound and light alarm
Product Parameters
|
Crowd System
|
SR360R-E10
|
|
Crowd Force
|
275kN
|
|
Line Pull
|
335kN
|
|
Stroke
|
6000mm
|
|
Main Chassis
|
|
|
Base Engine
|
ISU-ZU 6WG1
|
|
Emission Regulation
|
Tier III
|
|
Engine Power
|
300/1800kW/rpm
|
|
Main Winch
|
|
|
Lifting Capacity
|
335kN
|
|
Max. Line Speed
|
72m/min
|
|
Rope Diameter
|
36mm
|
|
Overall Machine
|
|
|
Operating Weight
|
105T
|
|
Overall Height
|
26395mm
|
|
Transport Height
|
3690mm
|
|
Transport Width
|
3490mm
|
|
Pile
|
|
|
Max. Pile Depth
|
100/65m
|
|
Max. Pile Diameter
|
2500mm
|
|
Rotary Drive
|
|
|
Rated Output Torque
|
360kN·m
|
|
Rated Speed
|
5~24rpm
|
